Differential Case Assembly

Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using Remover ST 498077000
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear, differential case (RH) and differential case (LH).

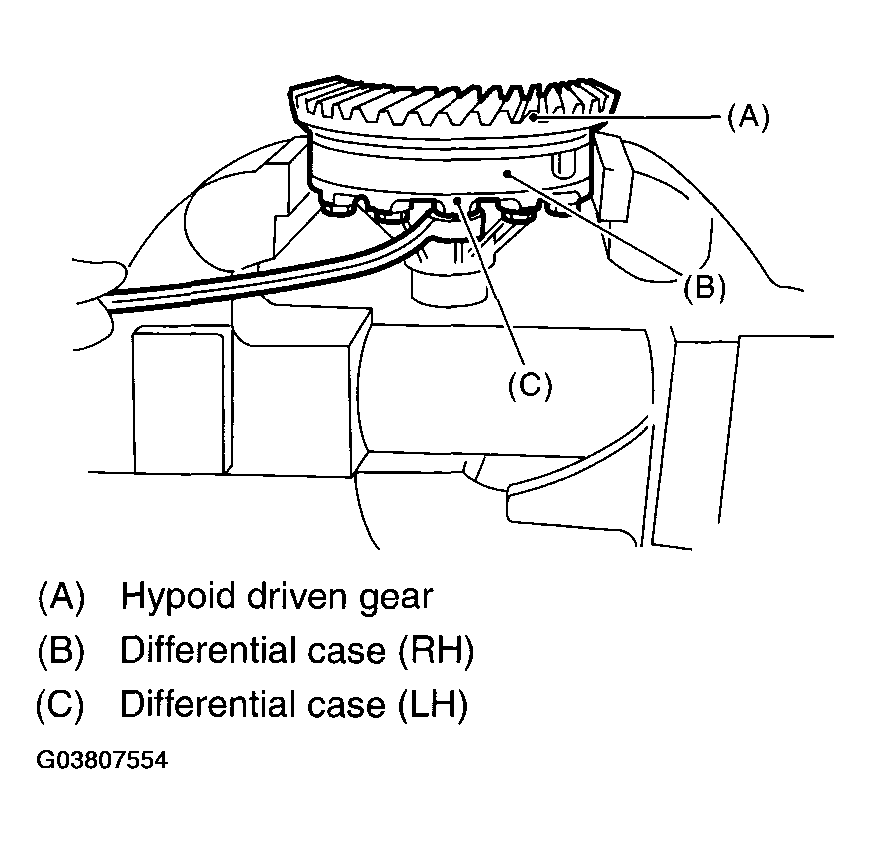

Fig 2: Identifying Hypoid Driven Gear, Differential Case (RH) And Differential Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and pinion shaft, and remove the differential bevel gear, washer and differential bevel pinion.

Fig 3: Pulling Out Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
