Oil Pump

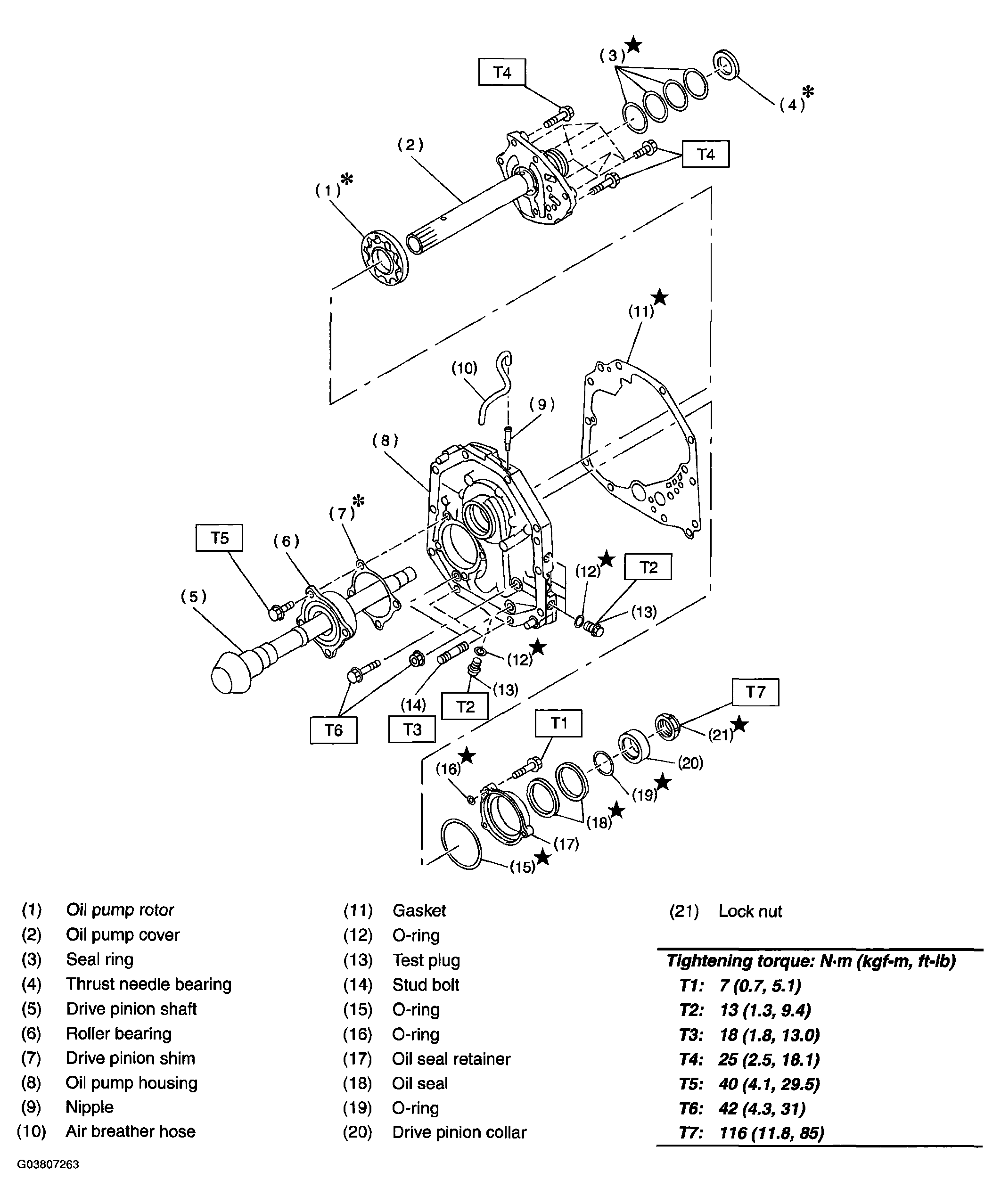

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G03807263Courtesy of SUBARU OF AMERICA, INC.
