Automatic Transmission (4AT)
›
General Description
›
Components
›
Reduction Gear
Reduction Gear
MPT model

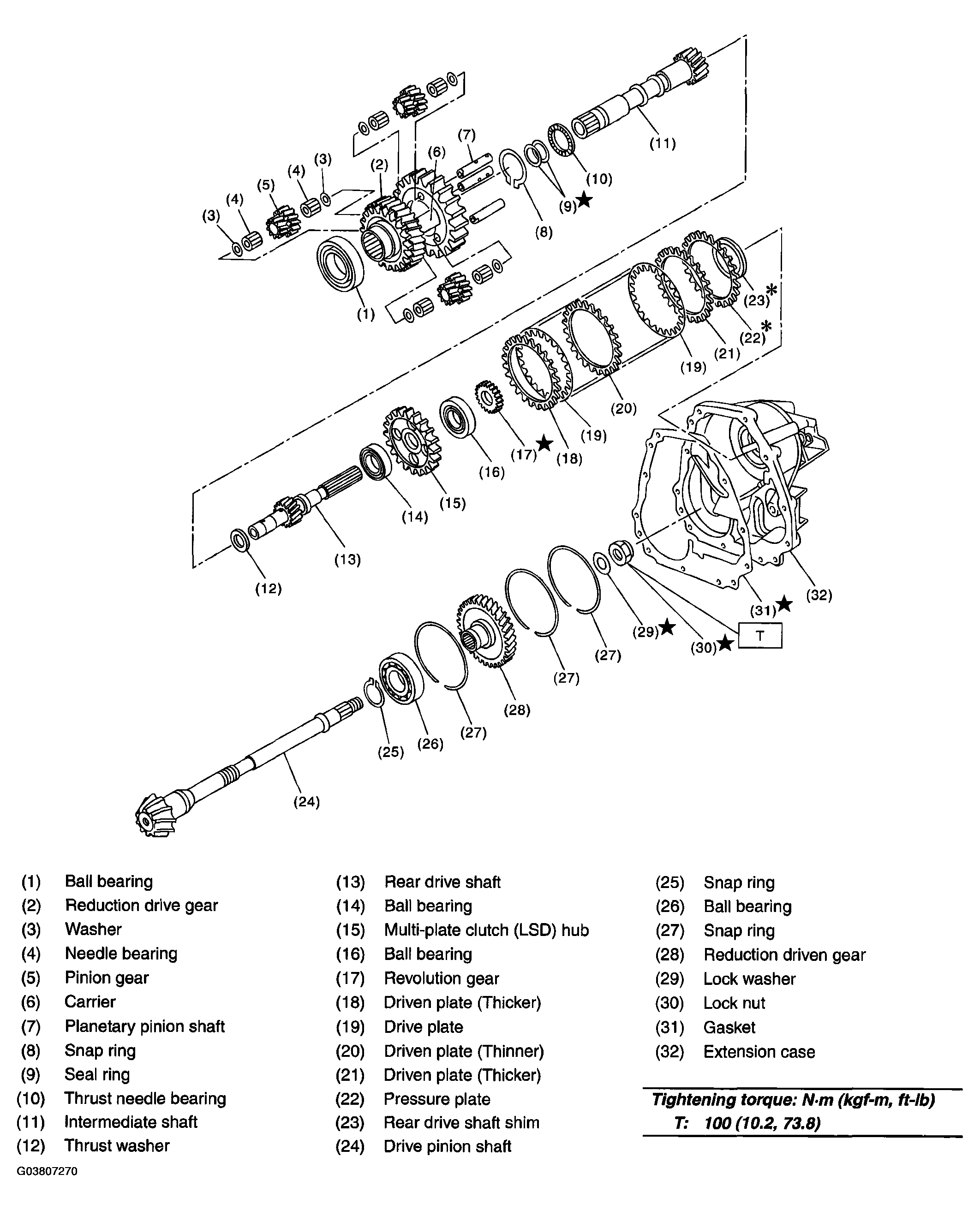

Fig 1: Exploded View Of Reduction Gear With Torque Specifications (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.
VTD model

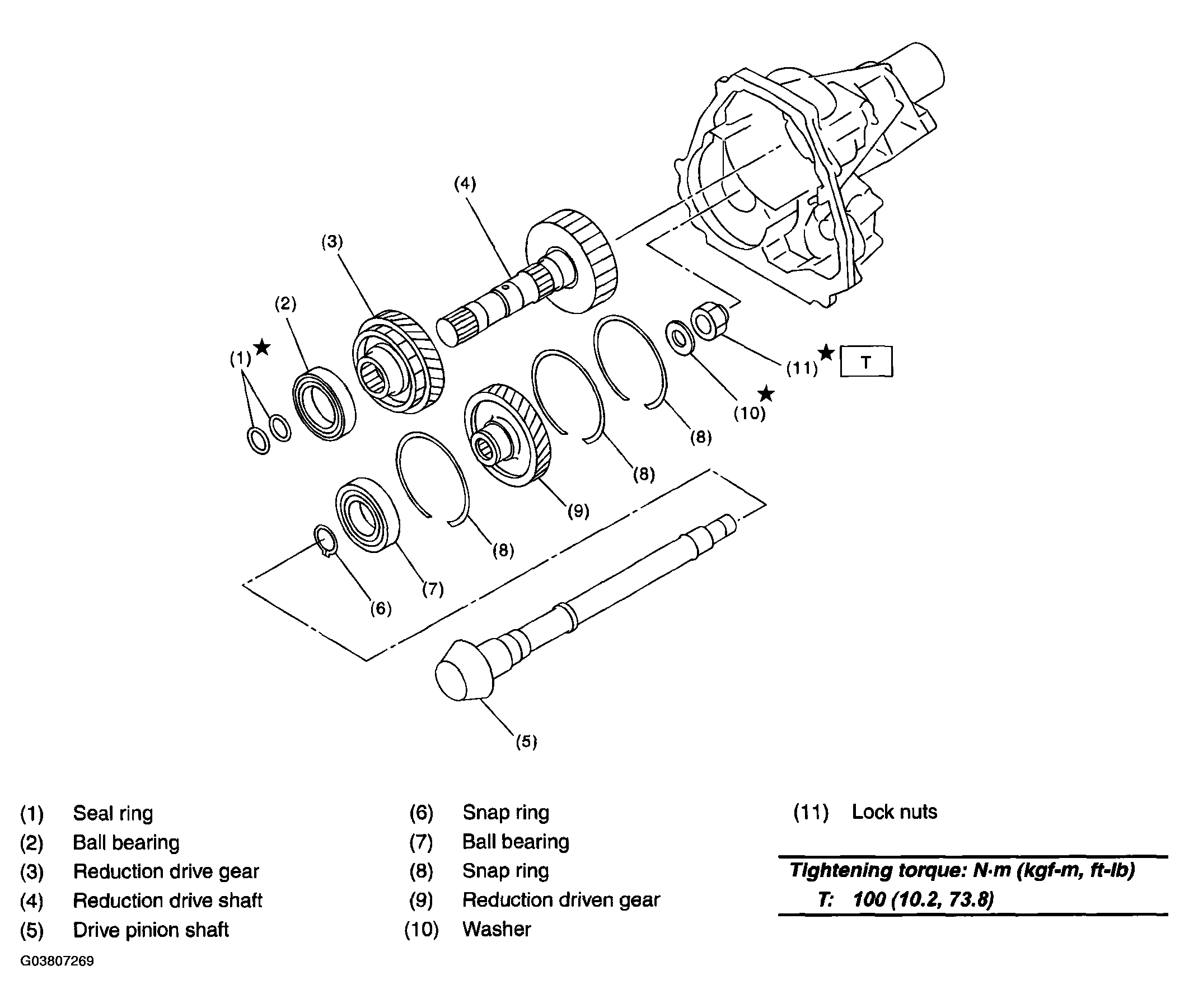

Fig 2: Exploded View Of Reduction Gear With Torque Specifications (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
