Final Reduction

FINAL REDUCTION SPECIFICATIONS

Front final gear ratio	4.444 (40/9)
Lubrication oil
Front differential oil capacity	1.1 - 1.3 l (1.2 - 1.4 US qt, 1.0 - 1.1 lmp qt)

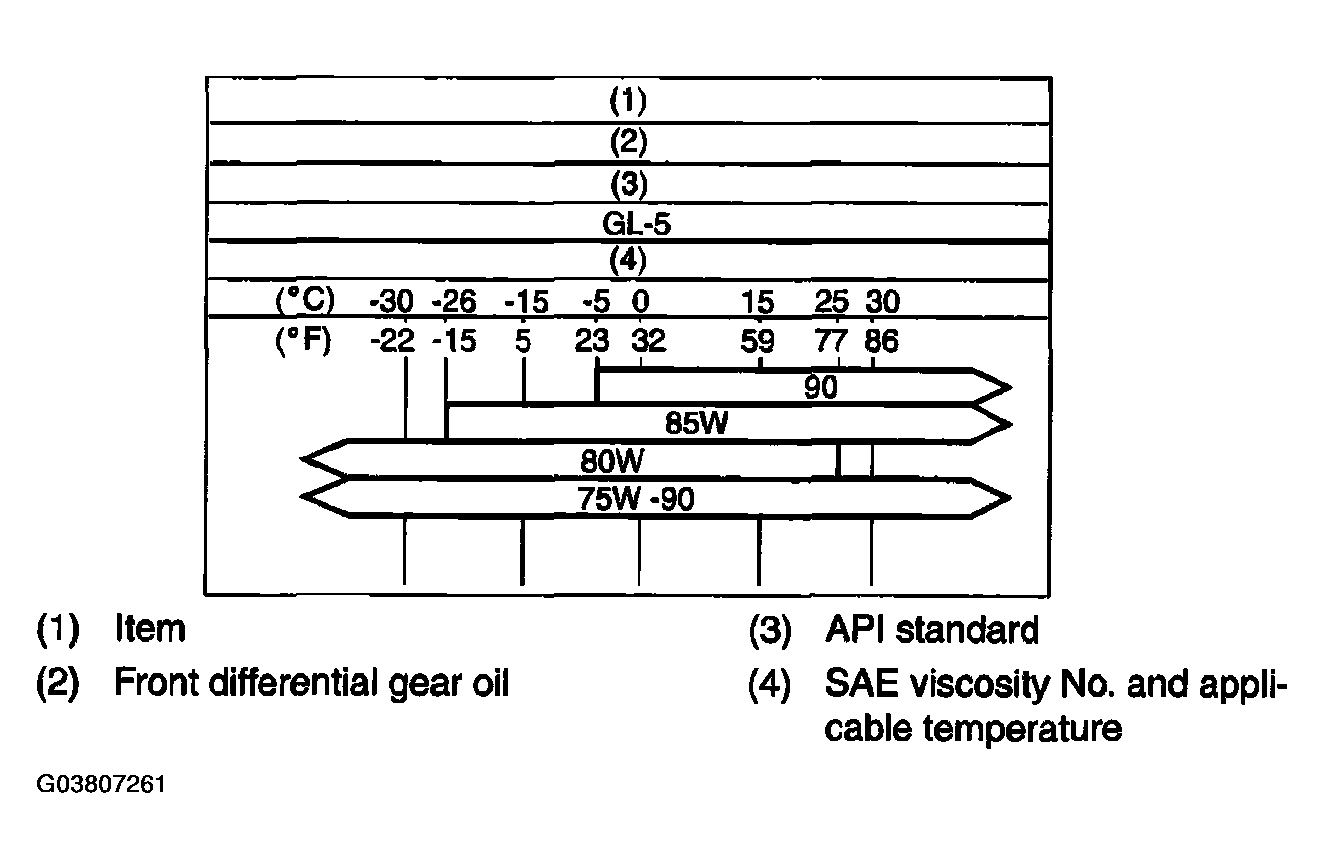

Fig 1: Identifying Gear Oil Specifications

Courtesy of SUBARU OF AMERICA, INC.
