Line Pressure Test: Measurement

NOTE: If the clutch or the brake shows a sign of slippage or shifting sensation is not correct, the line pressure should be checked.

Excessive shocks during up shifting or shifting takes place at a higher point than under normal circumstances, may be due to the line pressure being too high.
Slippage or inability to operate the vehicle may, in most cases, be due to loss of oil pressure for the operation of the clutch, brake or control valve.

Line pressure measurement (under no load)
1. Before measuring the line pressure, jack-up all wheels.
2. Maintain the temperature of ATF at approx. 70 - 80°C (158 - 176°F) during measurement. (ATF will reach the above temperature after idling the engine for approx. 30 minutes with select lever in "N" or "P".)
Line pressure measurement (under heavy load)
1. Before measuring the line pressure, apply both foot and parking brakes with all wheels chocked (Same as for "stall test" conditions).
2. Measure the line pressure when select lever is in "R", "2" with engine under stall conditions.
3. Measure the line pressure within 5 seconds after shifting the select lever to each position. (If line pressure needs to be measured again, allow the engine to idle, and then stop it to cool down for at least one minute.)
4. Maintain the temperature of ATF at approx. 70 - 80°C (158 - 176°F) during measurement. (ATF will reach the above temperature after idling the engine for approx. 30 minutes with the select lever in "N" or "P".)
Temporarily attach the ST to a suitable place in the driver's compartment, remove the blind plug located in front of the toe board and pass the hose of the ST to engine compartment.
ST 498575400 OIL PRESSURE GAUGE ASSY

Fig 1: Identifying Pressure Gauge Hose Connection
Courtesy of SUBARU OF AMERICA, INC.

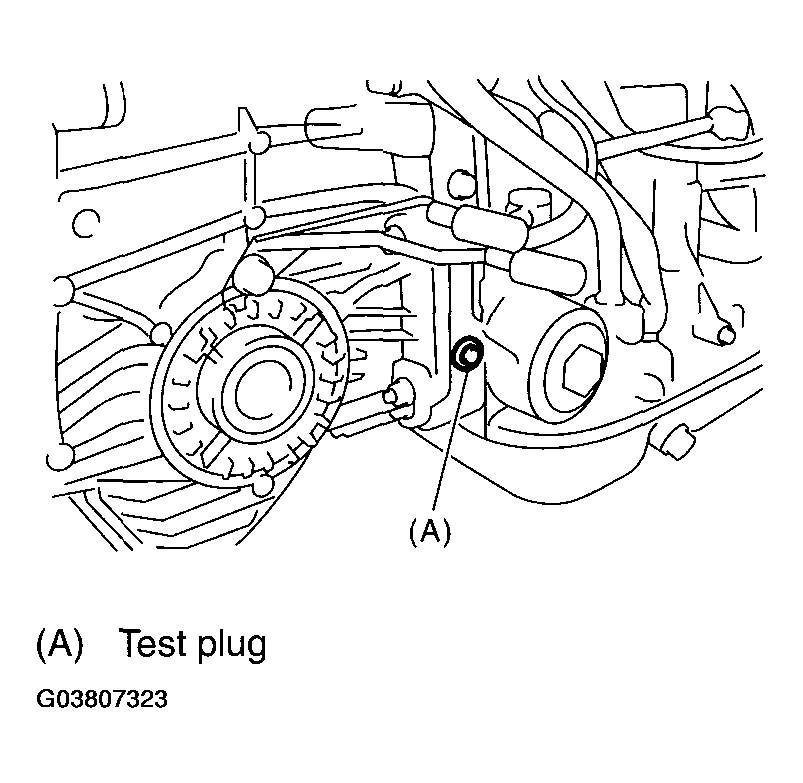

Remove the test plug and install the ST instead.
ST 498897200 OIL PRESSURE GAUGE ADAPTER

Fig 2: Removing Test Plug Using Oil Pressure Gauge Adapter ST 498897200
Courtesy of SUBARU OF AMERICA, INC.
Connect the ST1 with ST2.
ST1 498897200 OIL PRESSURE GAUGE ADAPTER

ST2 498575400 OIL PRESSURE GAUGE ASSY

Check for duty ratio changes by adjusting the acceleration opening angle using Subaru Select Monitor.

STANDARD LINE PRESSURE

Standard line pressure
Range position	Line pressure duty ratio (%)	Throttle position (%)	Line pressure kPa (kg/cm² , psi)
2	25 - 35	100 (Full open)	1,000 - 1,300 (10.2 - 13.3, 145 - 189)
R	15 - 25	100 (Full open)	1,500 - 1,850 (15.3 - 18.9, 217 - 268)
D	35 - 43	0 (Full closed)	500 - 800 (5.1 - 8.2, 73 - 116)
