Transmission Control Module (TCM): Installation

Install the transmission control module.
Tightening torque:

7.5 N.m (0.75 kgf-m, 5.5 ft-lb)

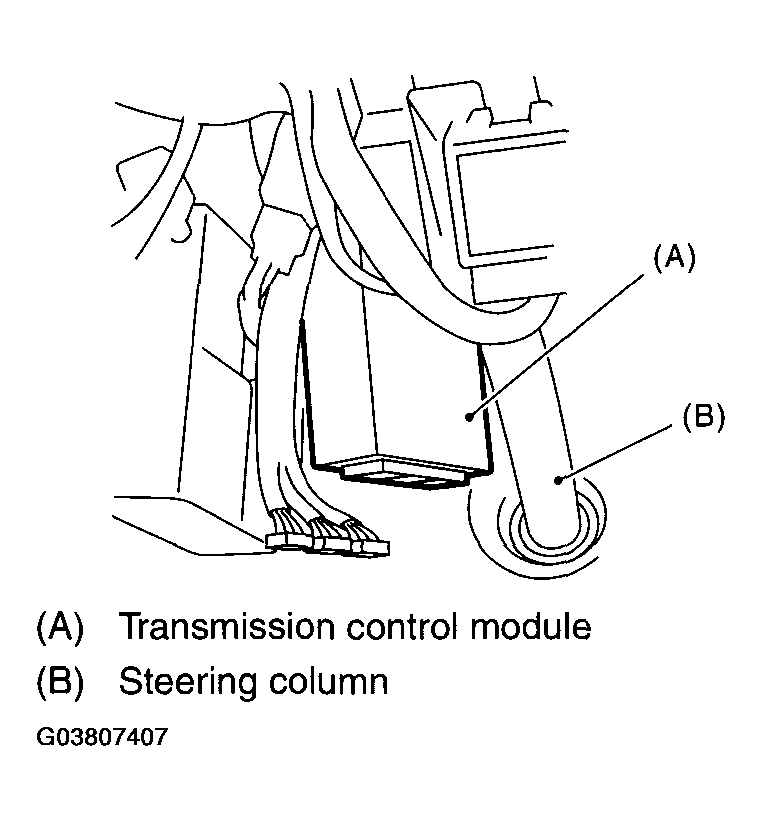

Fig 1: Installing Transmission Control Module
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to transmission control module.
Install in the reverse order of removal.
