General Description
›
Components
›
Mt Gear Shift Lever
Mt Gear Shift Lever

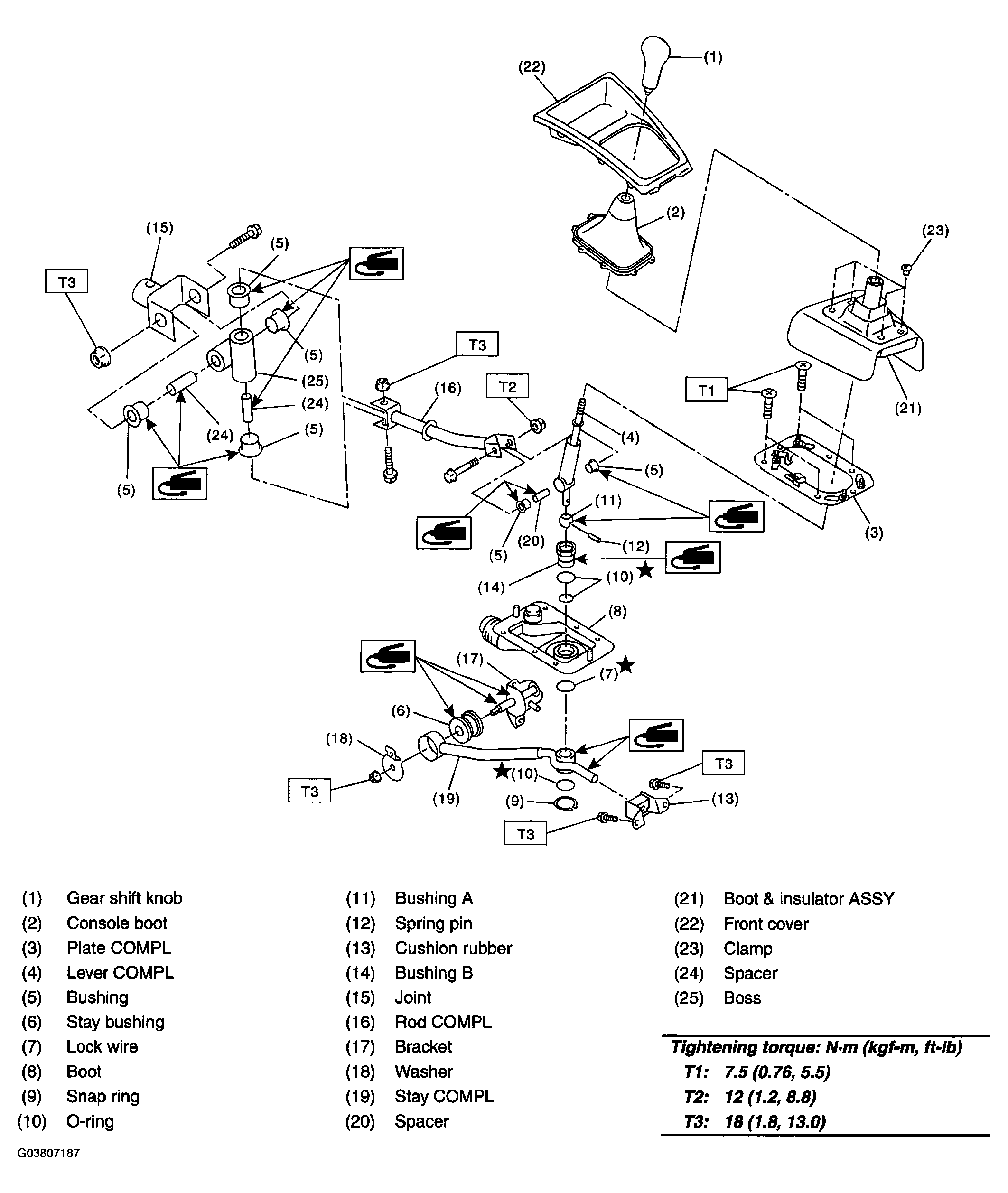

Fig 1: Exploded View Of Gear Shift Lever Components With Torque Specifications (MT)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
