Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
›
General Description
›
Components
›
VDC Hydraulic Control Module (VDCH/M)
VDC Hydraulic Control Module (VDCH/M)

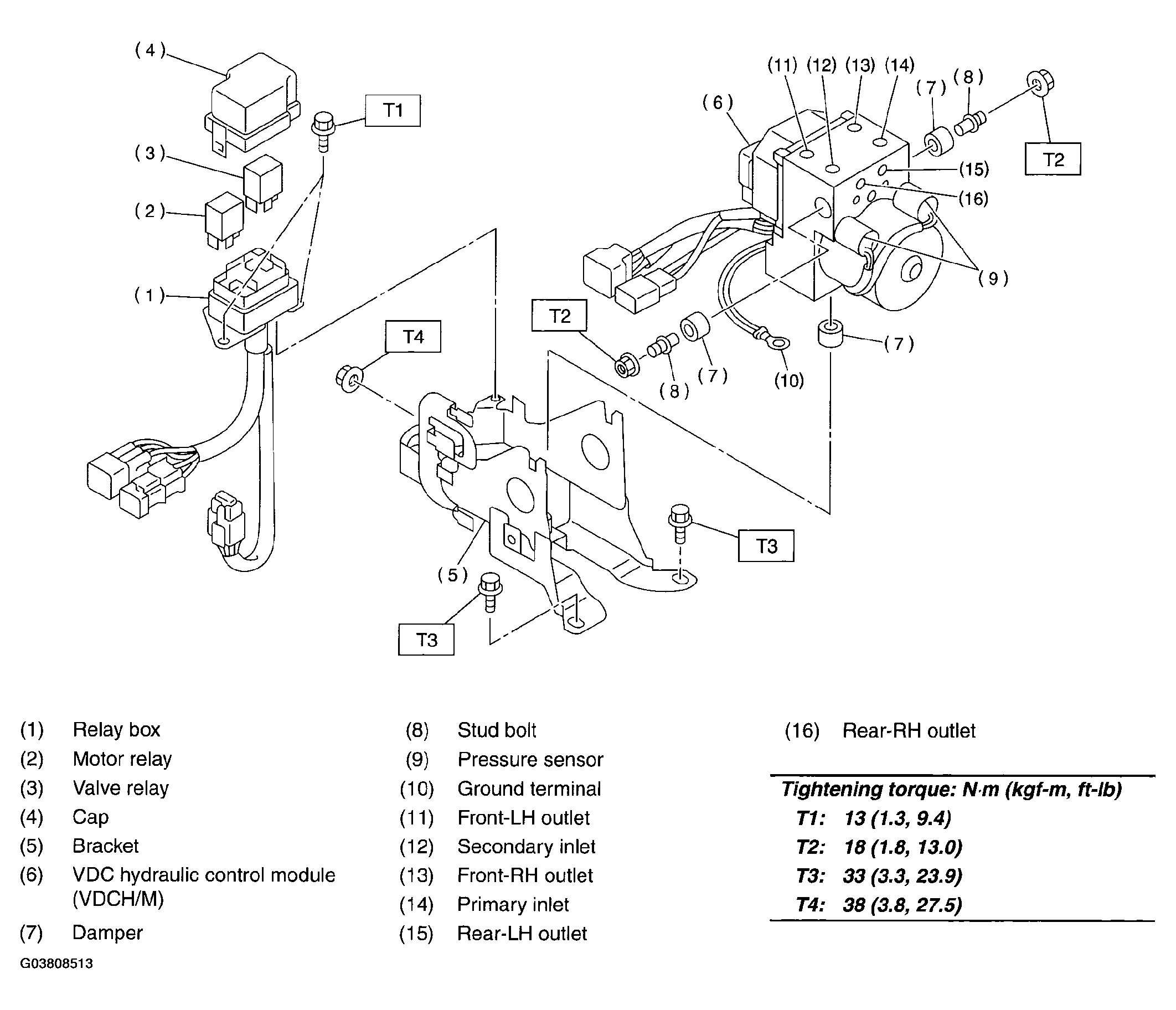

Fig 1: Identifying Components Of VDC Hydraulic Control Module (VDCH/M)
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
Do not disassemble except valve relay and motor relay.
