VDC OFF Switch: Removal

  1. Disconnect the ground cable from battery.

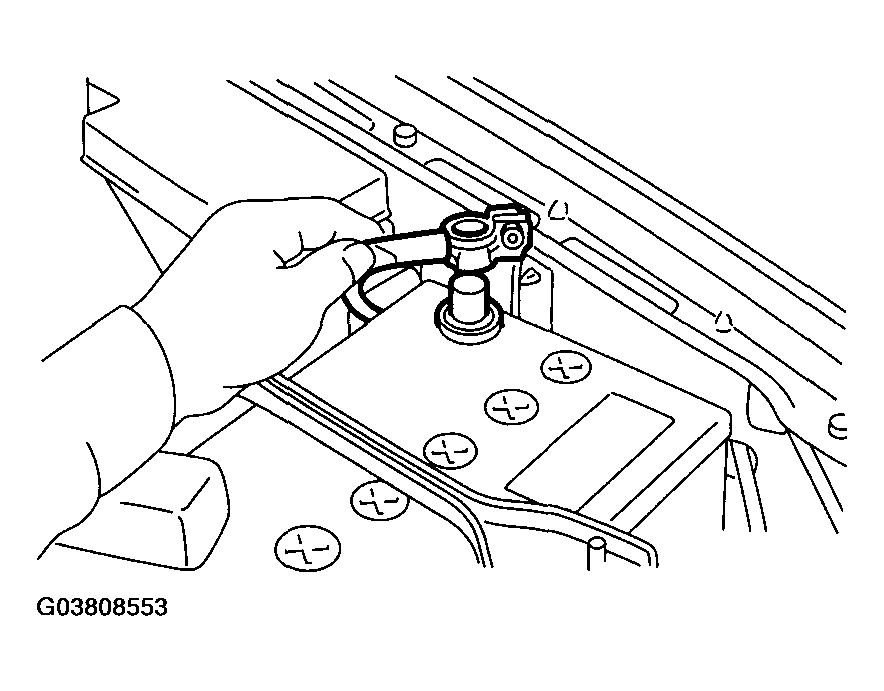

    Fig 1: Disconnecting Ground Cable From Battery
    G03808553Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Remove the VDC OFF switch by removing and pushing the VDC OFF switch connector outward.
    Fig 2: Removing And Pushing VDC Off Switch Connector Outward
    G03808554Courtesy of SUBARU OF AMERICA, INC.
