Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
›
VDC Sequence Control
›
Operation
›
Conditions For VDC Sequence Control
Conditions For VDC Sequence Control

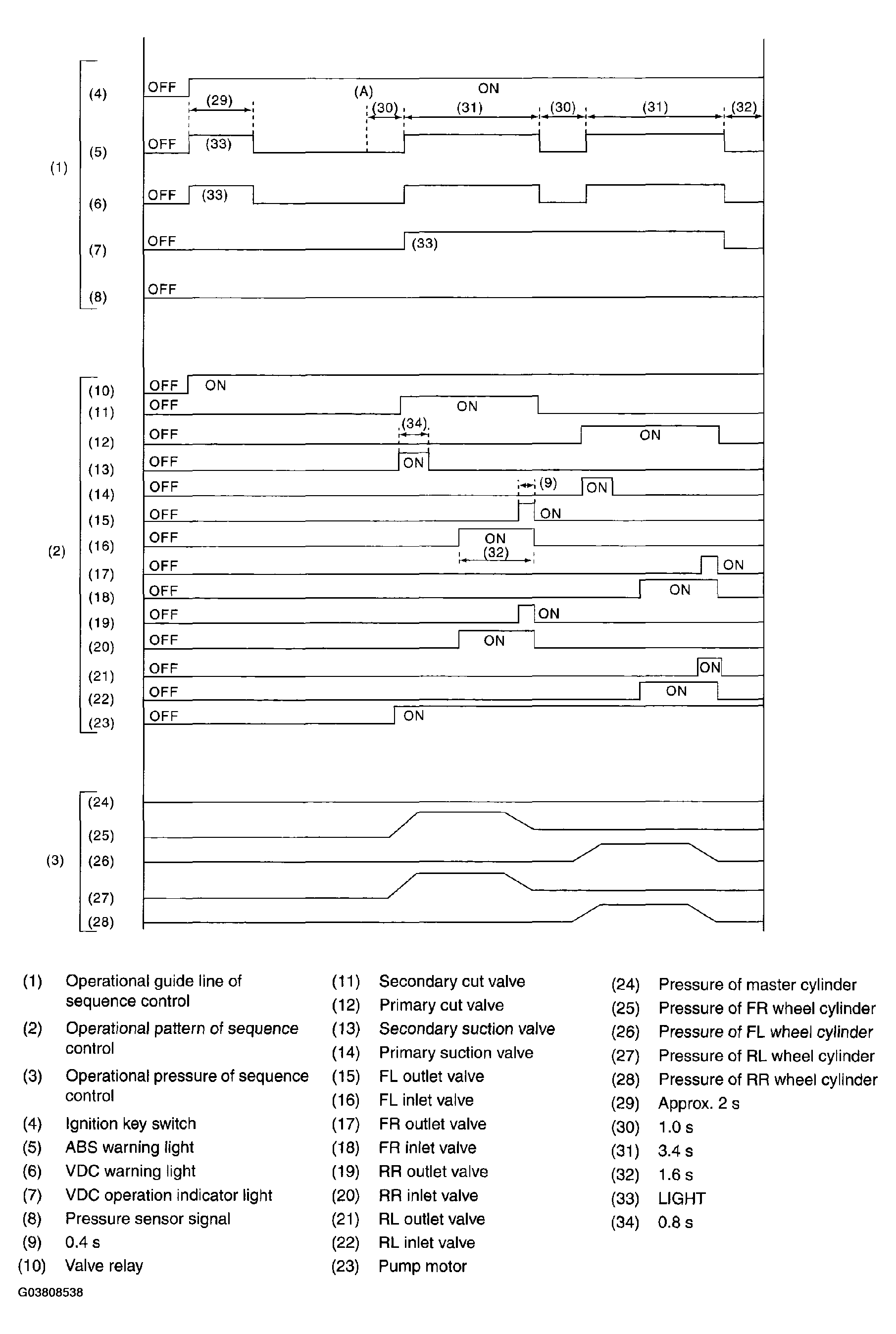

Fig 1: Identifying Conditions For VDC Sequence Control
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Sequence control operation starts at point (A).
Courtesy of SUBARU OF AMERICA, INC.
