Rear Axle: Inspection

Moving the rear tire up and down by hand, check that there is no shakiness in the bearing, and check that the wheel rotates smoothly.

Fig 1: Checking Wheel Rotates Smoothly
Courtesy of SUBARU OF AMERICA, INC.

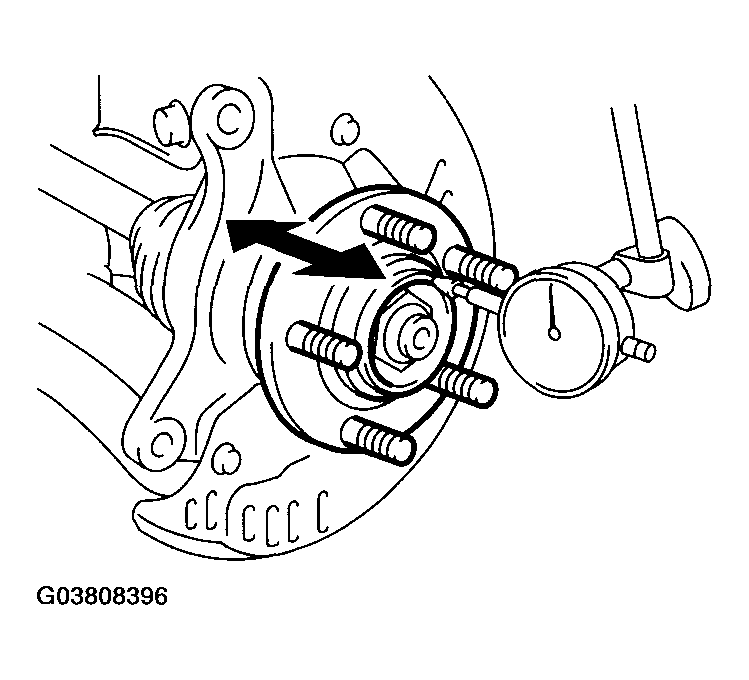

Inspect the lean of axis direction using a dial gauge. Replace the hub bearing if the load range exceed the limitation.
Limit:

Maximum

0.05 mm (0.0020 in)

Fig 2: Inspecting Hub Bearing Load Range
Courtesy of SUBARU OF AMERICA, INC.
