Starting System & Charging System (H4SO): Generator: Removal

Disconnect the ground cable from battery.

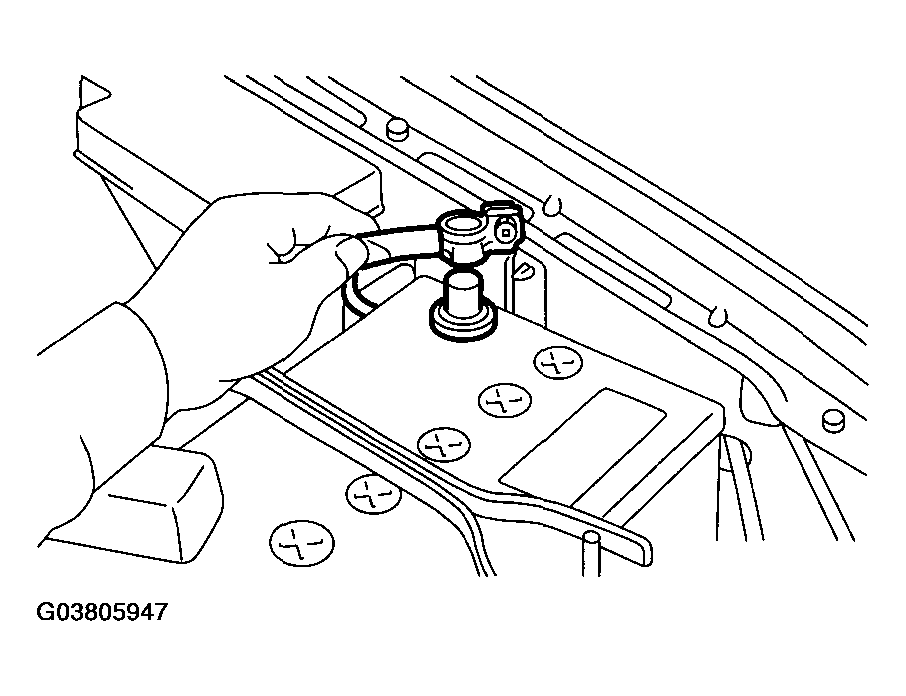

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector and terminal from generator.

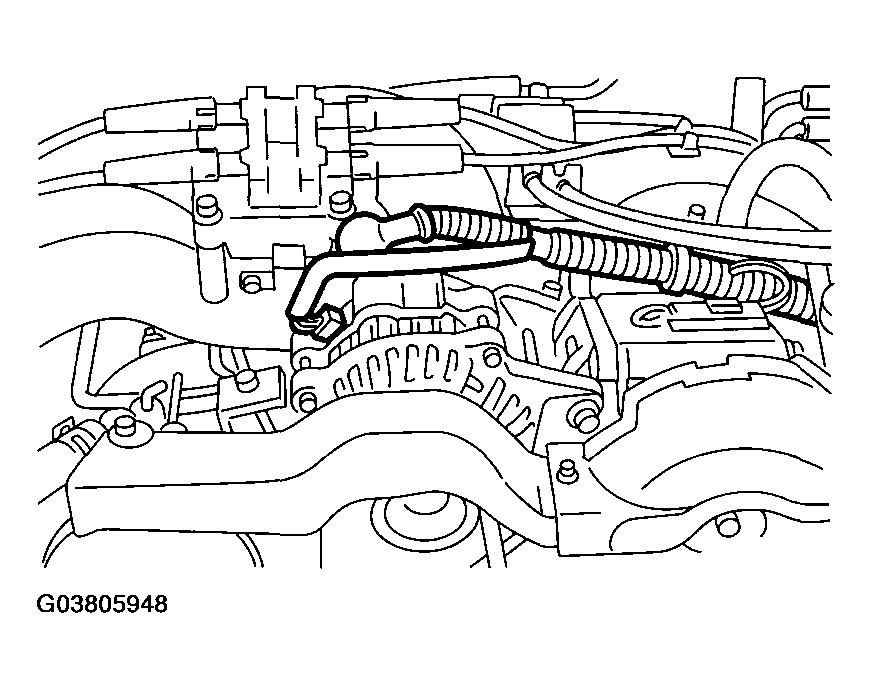

Fig 2: Disconnecting Connector And Terminal From Generator
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt cover.

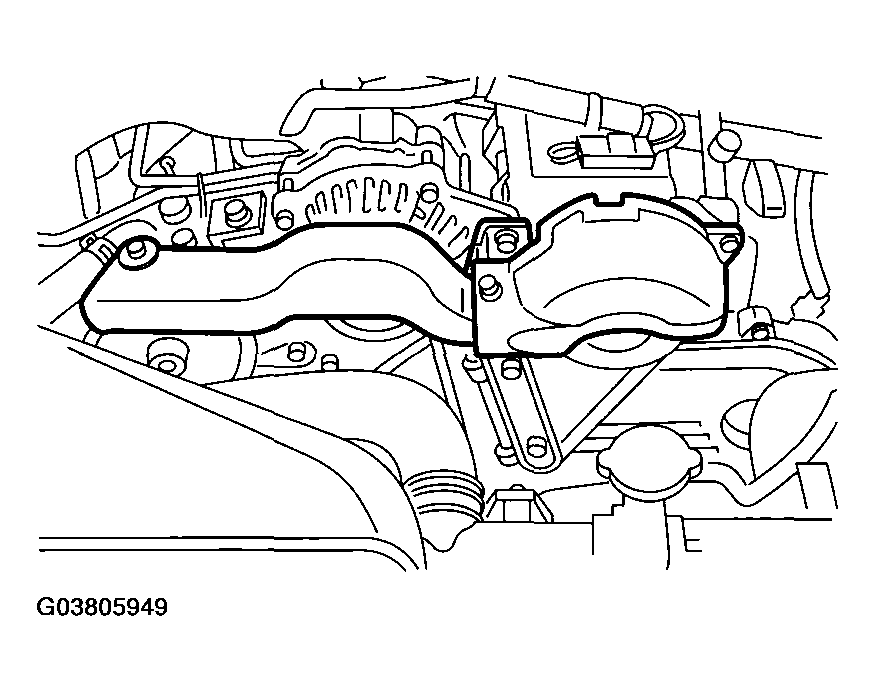

Fig 3: Removing V-Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the front side V-belt.
< Ref. to Front Side Belt, REMOVAL , V-Belt. >
Remove the bolts, and then remove the generator from bracket.

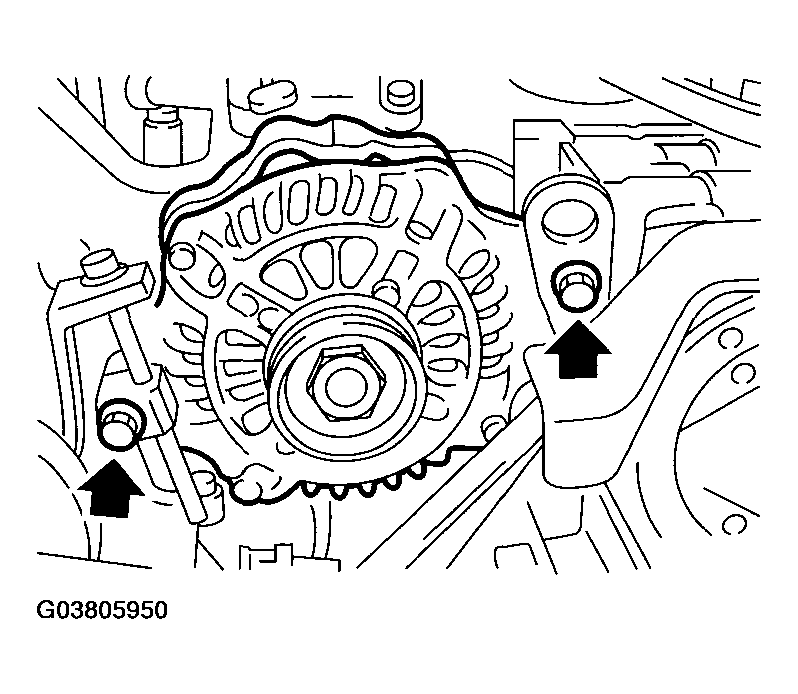

Fig 4: Removing Generator From Bracket
Courtesy of SUBARU OF AMERICA, INC.
