Diagnostics for Engine Starting Failure: Procedure

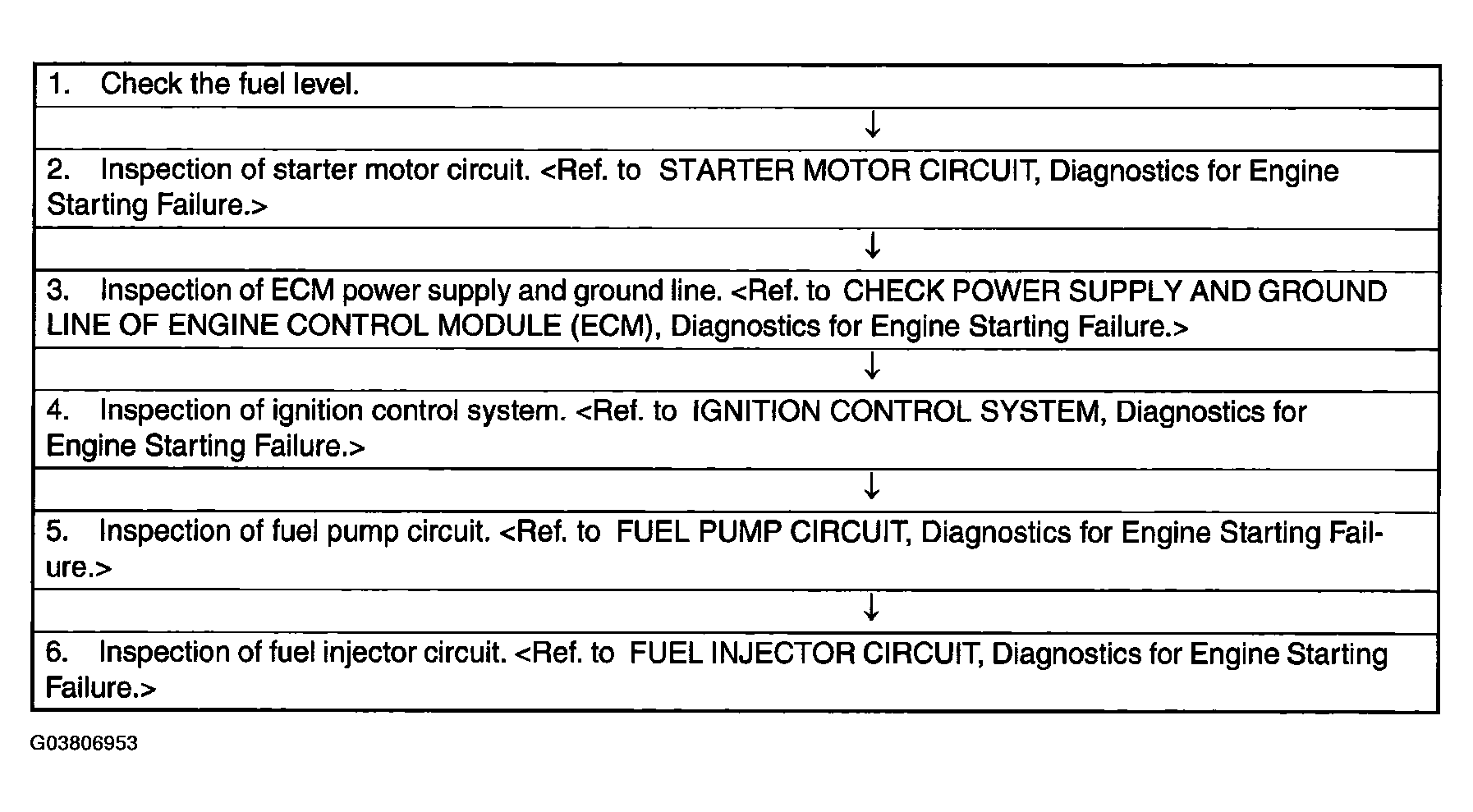

Fig 1: Diagnostics Procedure Chart (Engine Starting Failure)
G03806953Courtesy of SUBARU OF AMERICA, INC.
