Operating Cylinder: Installation

Apply grease to the contact point of the release lever and operating cylinder.
Install in the reverse order of removal.
Before installing the operating cylinder, apply grease (SUNLIGHT 2: Part No. 003602010) to contact point of the release lever and operating cylinder.

Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)
- Non-turbo model

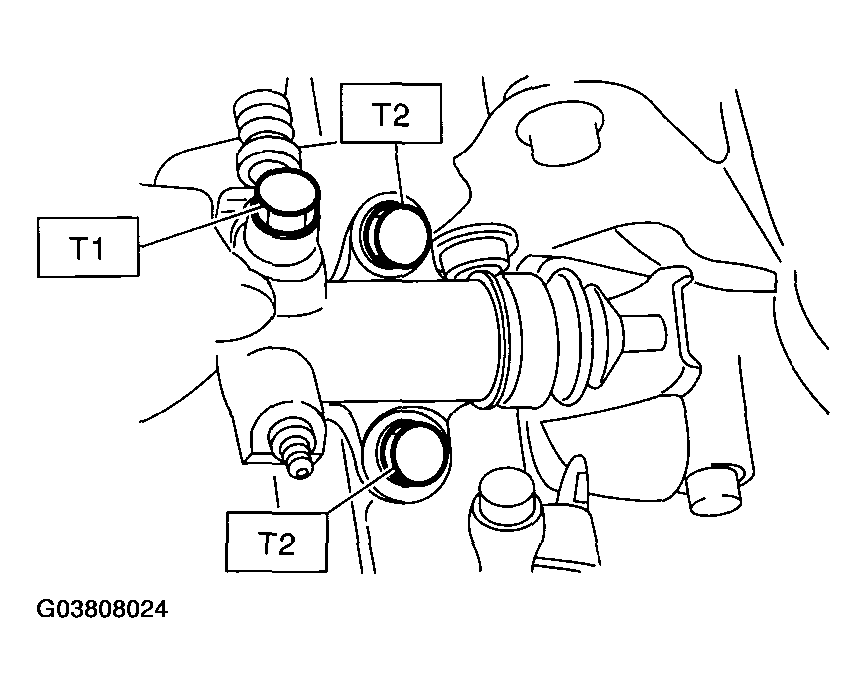

  Fig 1: Installing Operating Cylinder From Transmission (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

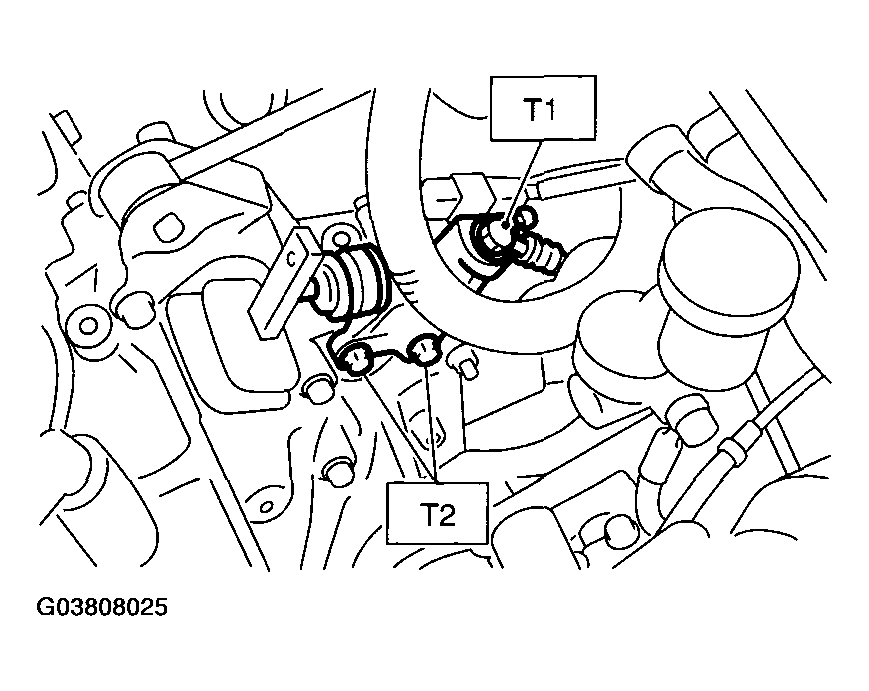

  Fig 2: Installing Operating Cylinder From Transmission (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.

  Fig 3: Identifying Clutch Hose And Operating Cylinder Proper Seating
  Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that clutch operates properly. < Ref. to CLUTCH FLUID AIR BLEEDING . >
