RH Side

Release the fuel pressure. < +Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE , Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.

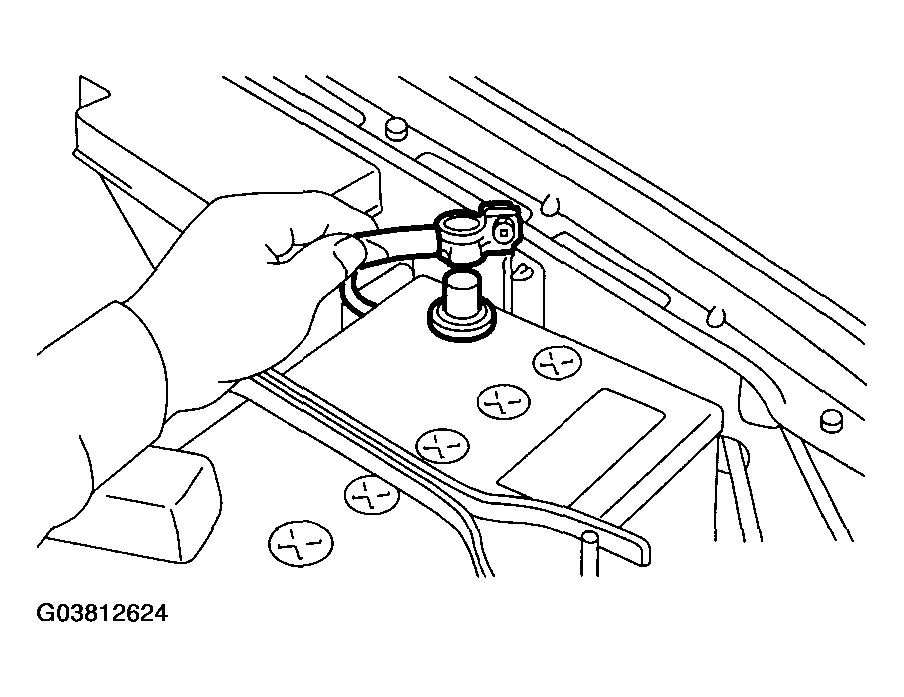

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber and air cleaner case. < Ref. to REMOVAL , Air Intake Chamber. > < Ref. to REMOVAL , Air Cleaner Case. >
Remove the power steering pump and tank from the brackets.
1. Remove the front side V-belt. < Ref. to REMOVAL , V-belt. >

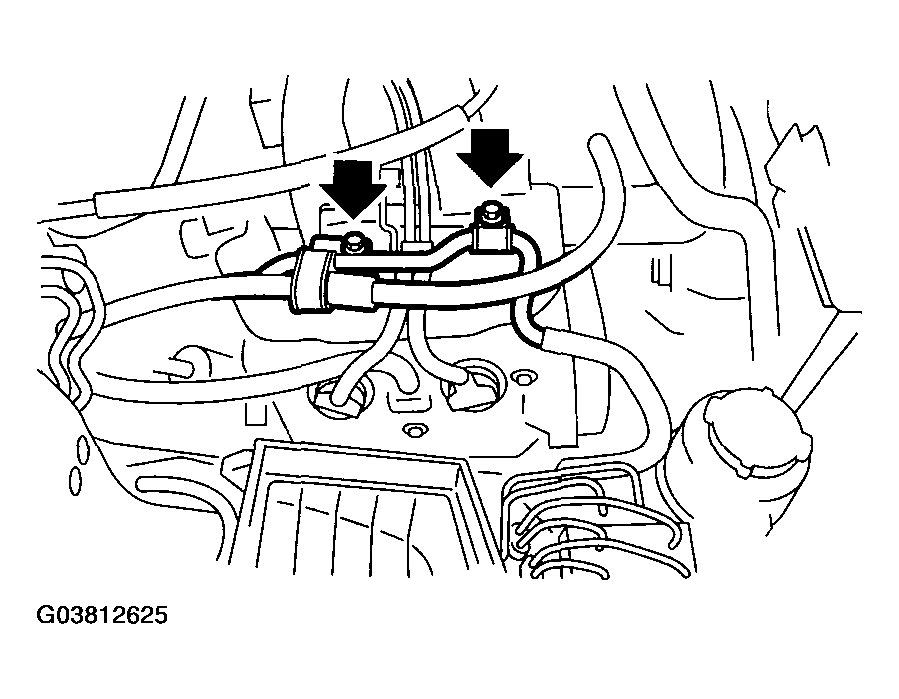

2. Remove the bolts which hold the power steering pipes onto the intake manifold protector.

  Fig 2: Removing Bolts Holding Power Steering Pipes Onto Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.

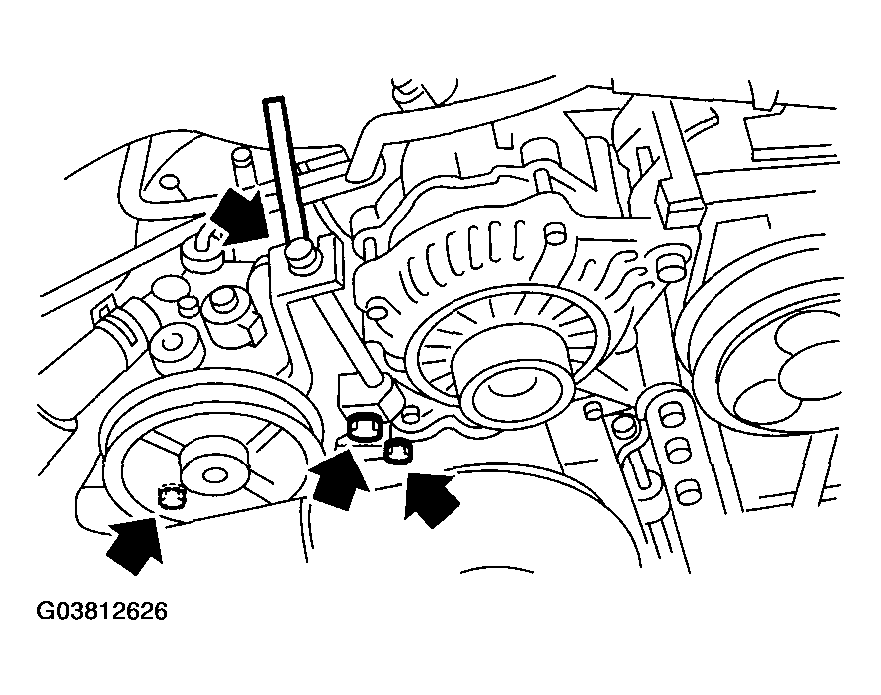

3. Remove the bolts which install the power steering pump to the bracket.

  Fig 3: Removing Bolts Installing Power Steering Pump To Bracket
  Courtesy of SUBARU OF AMERICA, INC.

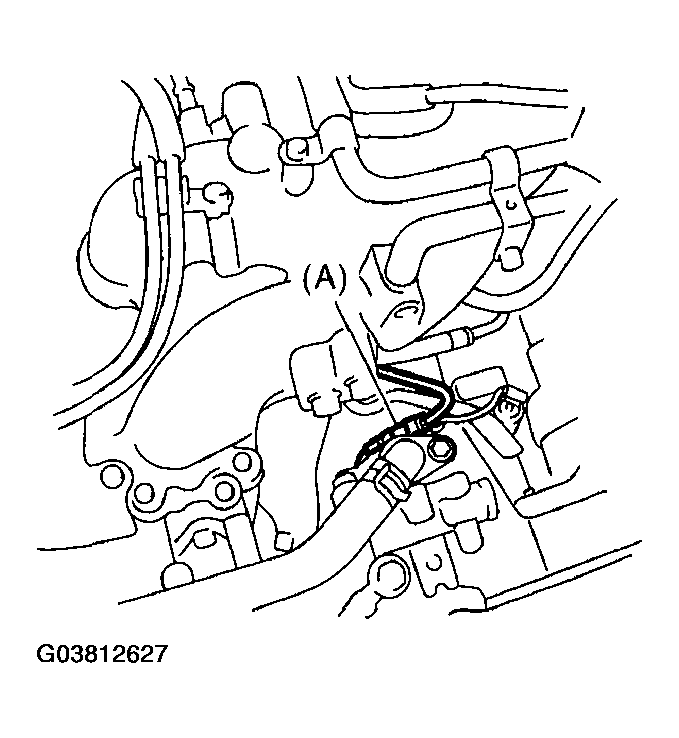

4. Disconnect the power steering pump switch connector (A).

  Fig 4: Disconnecting Power Steering Pump Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.

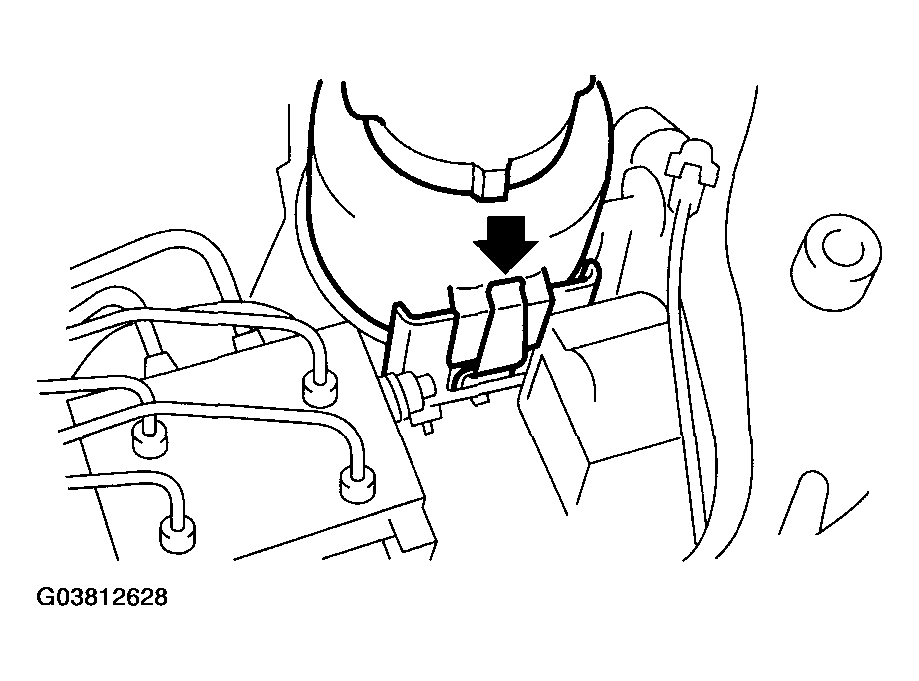

5. Remove the reservoir tank from the bracket by pulling it upwards.

  Fig 5: Removing Reservoir Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.

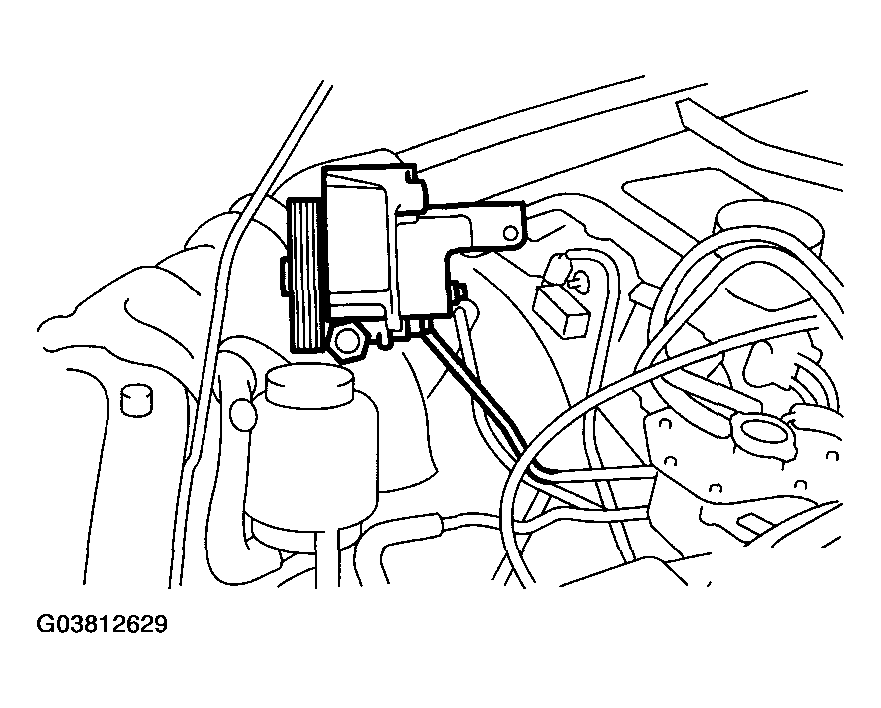

6. Place the power steering pump and tank on the right side wheel apron.

  Fig 6: Placing Power Steering Pump And Tank
  Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug cords from spark plugs (#1 and #3 cylinders).
Remove the fuel pipe protector RH.

Fig 7: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.

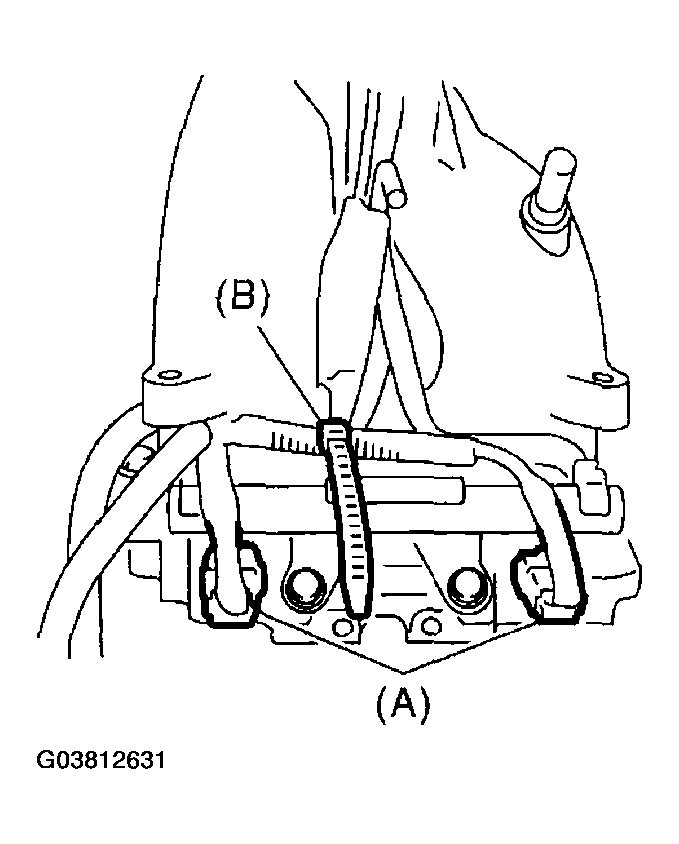

Disconnect the connector (A) from fuel injector.
Remove the harness band (B) which holds engine harness to injector pipe.

Fig 8: Locating Connector And Harness Band
Courtesy of SUBARU OF AMERICA, INC.

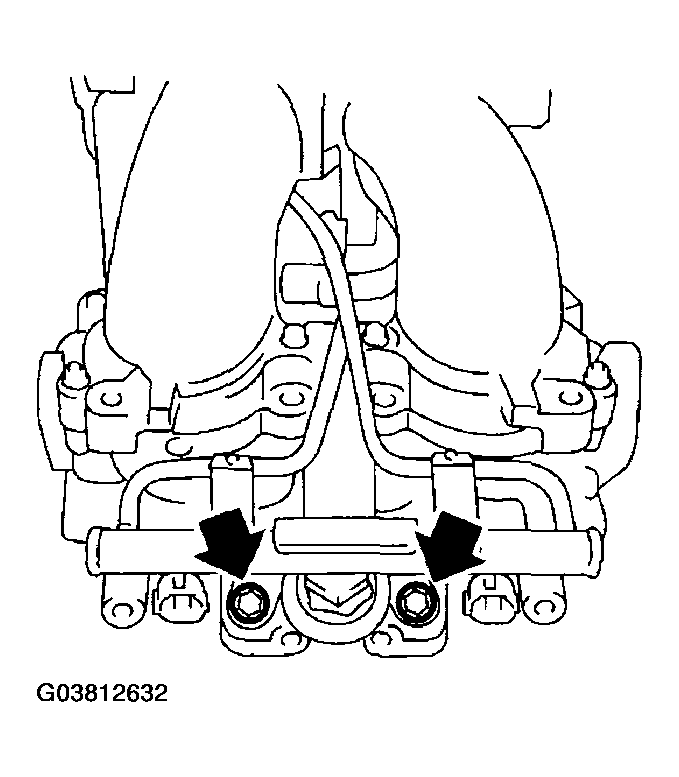

Remove the bolts which hold fuel injector pipe onto intake manifold.

Fig 9: Removing Bolts Holding Fuel Injector Pipe Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

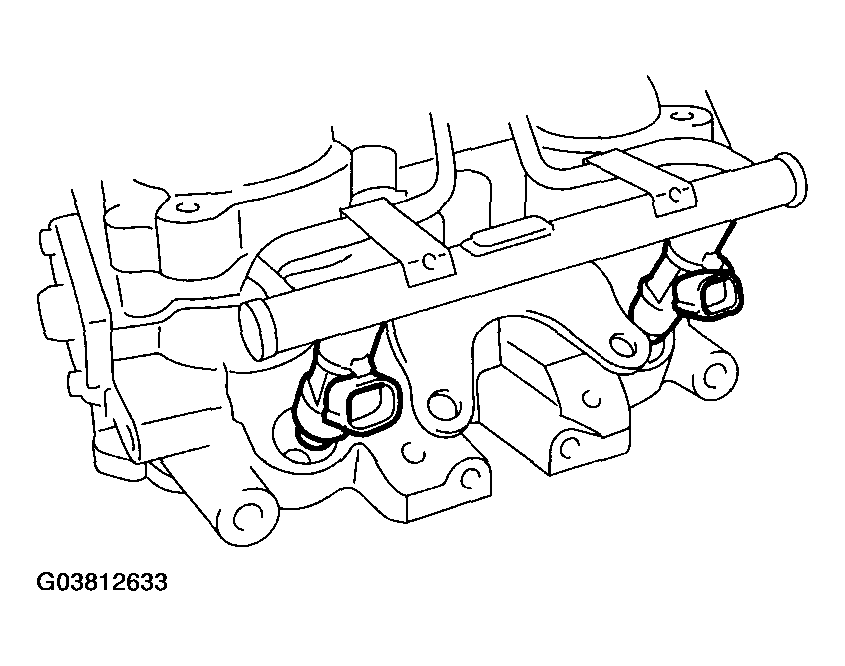

Remove the fuel injector while lifting up the fuel injector pipe.

Fig 10: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
