Non-Turbo Model

  1. Remove the clip (B) above the air cleaner case.

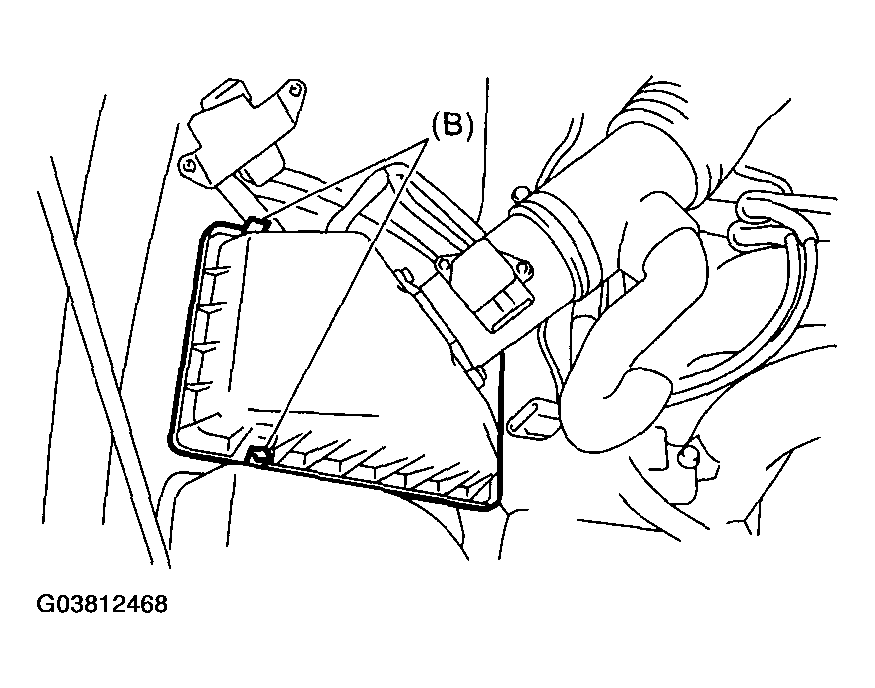

    Fig 1: Removing Clip Air Cleaner Case
    G03812468Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air cleaner.

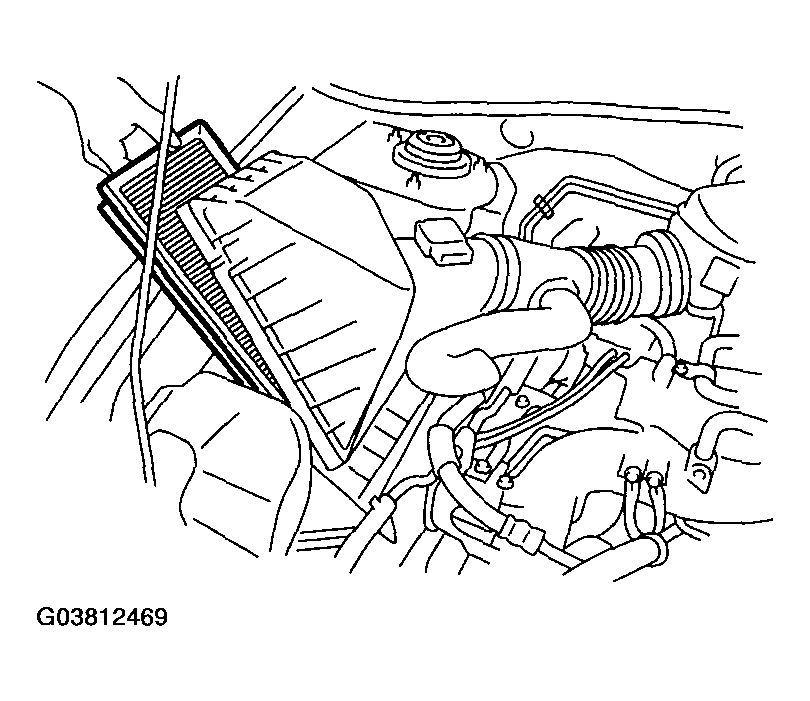

    Fig 2: Removing Air Cleaner
    G03812469Courtesy of SUBARU OF AMERICA, INC.
  3. Install in the reverse order of removal.
    NOTE: Align the protruding portion of air cleaner upper cover with holes of air cleaner lower case, then secure upper cover to case.

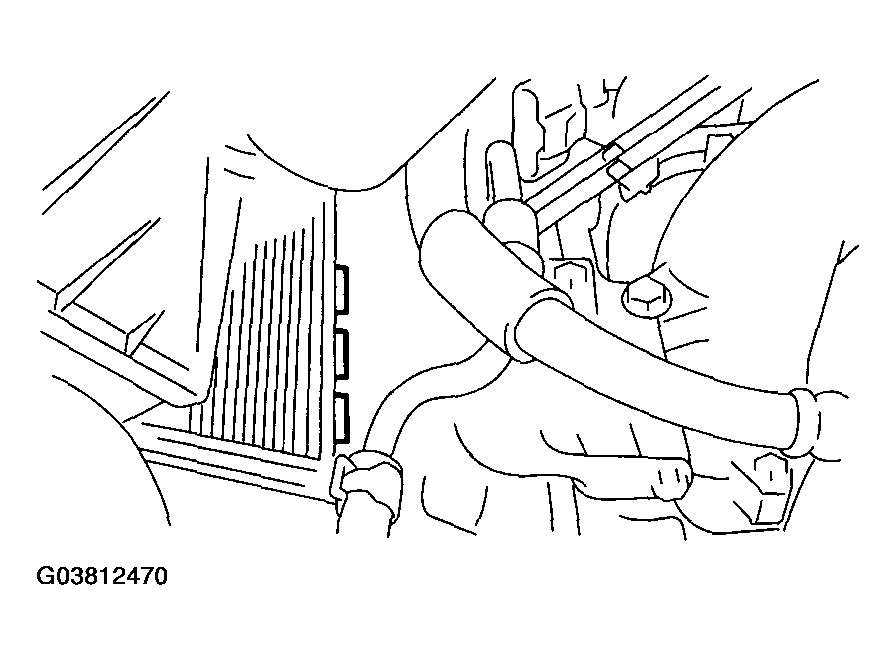

    Fig 3: Aligning Protruding Portion Of Air Cleaner Upper Cover With Holes
    G03812470Courtesy of SUBARU OF AMERICA, INC.
