Automatic Transmission Fluid: Replacement

Lift-up the vehicle.
Drain the ATF completely.
Check the ATF for condition. < Ref. to CONDITION CHECK , Automatic Transmission Fluid. >
CAUTION: Directly after the engine has been running, the ATF is hot. Be careful not to burn yourself.
Replace with a new gasket, and then tighten the ATF drain plug.
Tightening torque:

25 N.m (2.5 kgf-m, 18 ft-lb)

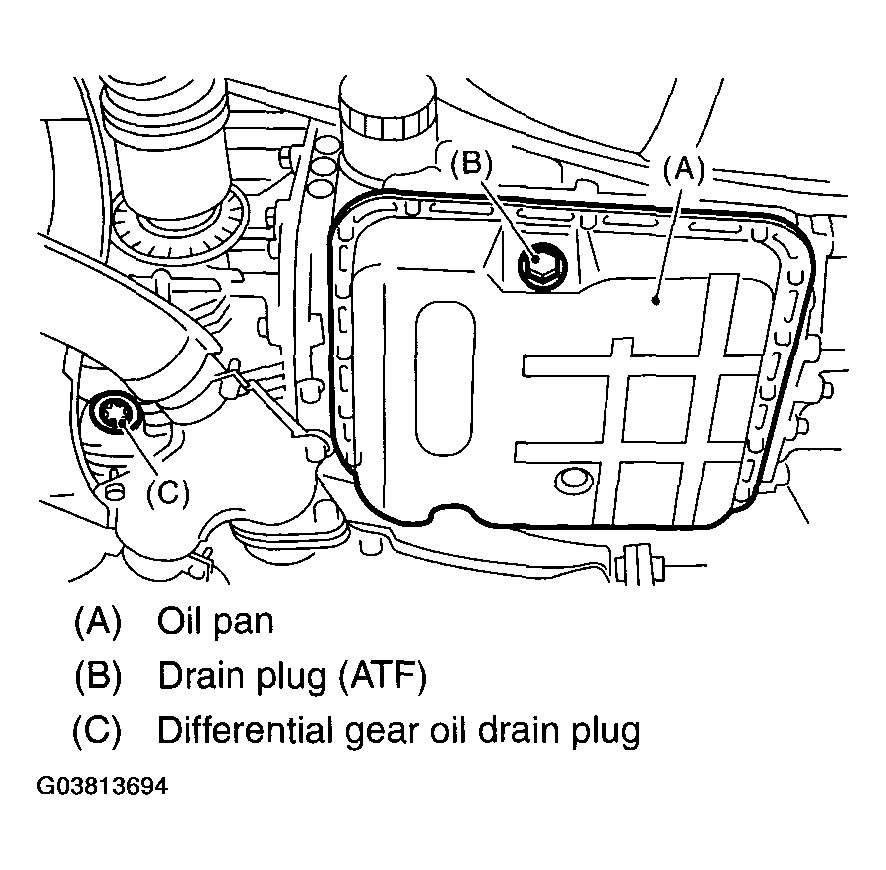

Fig 1: Identifying ATF Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Pour ATF through the oil charge pipe.
Recommended fluid:

Dexron III type automatic transmission fluid

Capacity:

Fill the same amount of ATF drained from drain plug hole.

Capacity when transmission is overhauled:

9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 - 8.4 Imp qt)
Check the level and leaks of ATF.
< Ref. to INSPECTION , Automatic Transmission Fluid. >
