Turbo Model

Set the range select lever in "N" range.
Install the control valve, ATF temperature sensor and ground connectors.
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

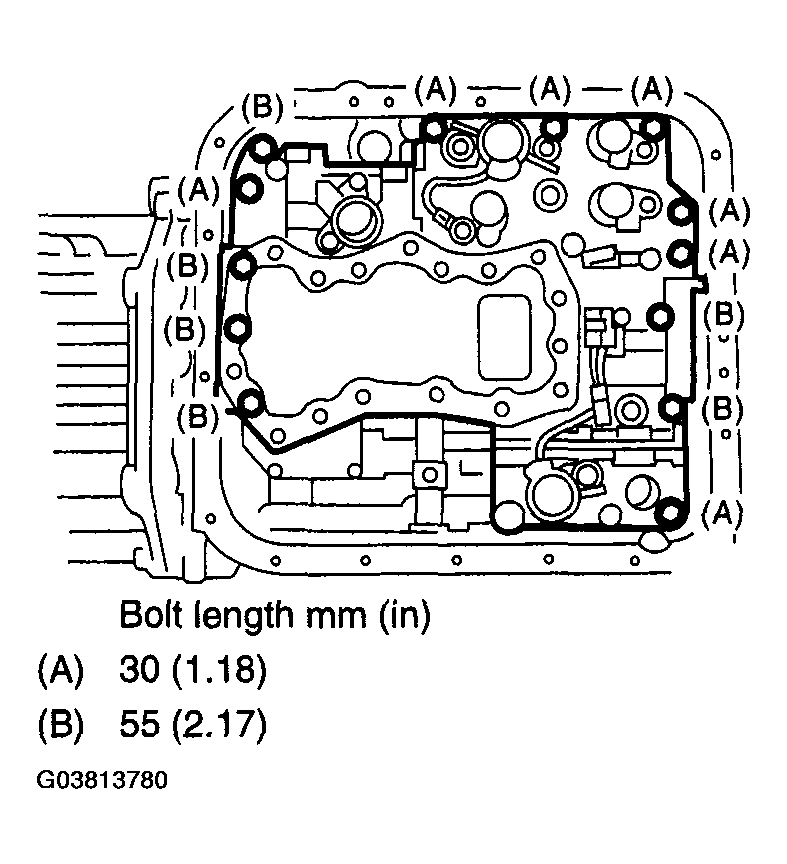

Fig 1: Installing Control Valve, ATF Temperature Sensor And Ground Connectors
Courtesy of SUBARU OF AMERICA, INC.
Connect all connectors.

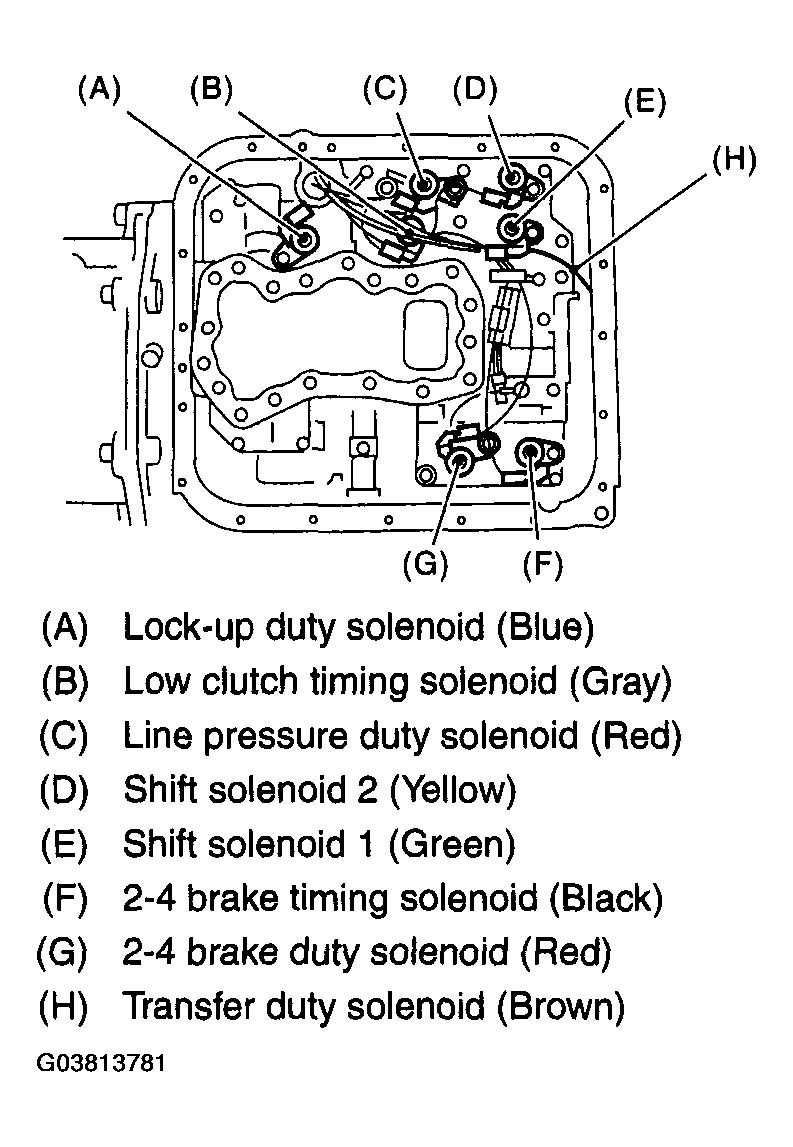

Fig 2: Connecting Connectors
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at specified position.

Fig 3: Installing Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)

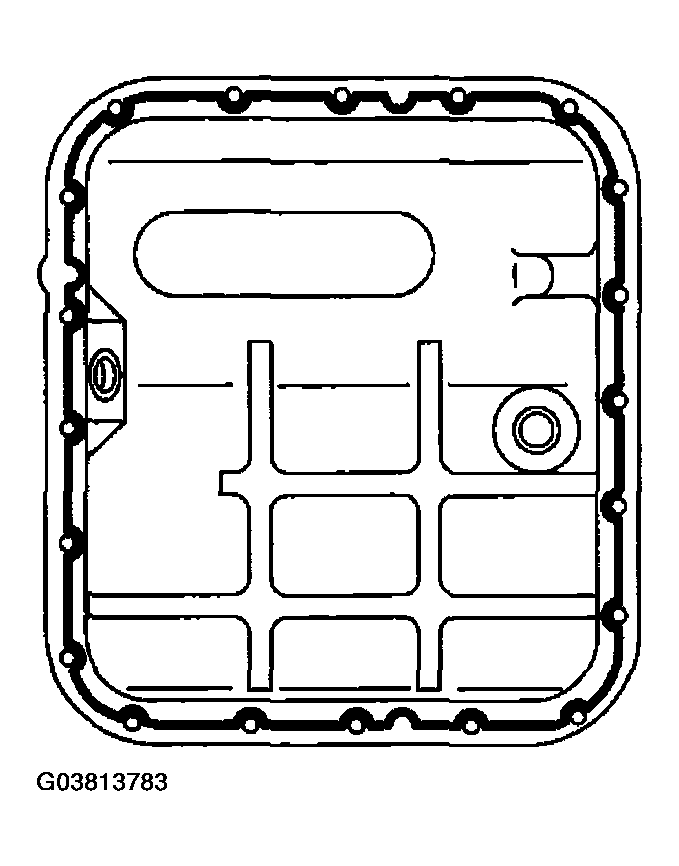

Fig 4: Applying Liquid Gasket To Entire Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket fully to three holes other than screw holes on transmission case.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)

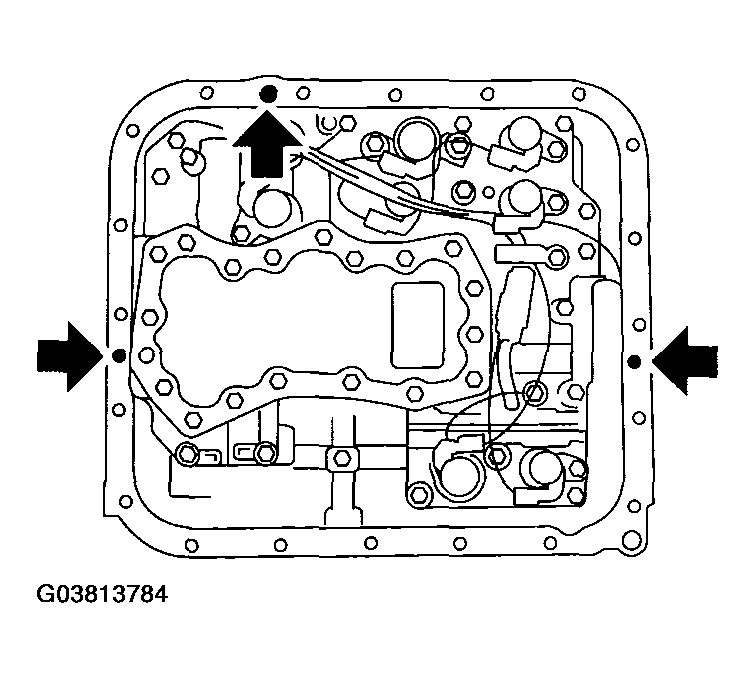

Fig 5: Applying Liquid Gasket To Three Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF from the oil charge pipe.
Recommended fluid:

Dexron III

Fluid capacity:

Fill the same amount of fluid drained from drain plug hole.
Check the level of ATF. < Ref. to AUTOMATIC TRANSMISSION FLUID . >
