Differential Case Assembly

Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear, case (RH) and case (LH).

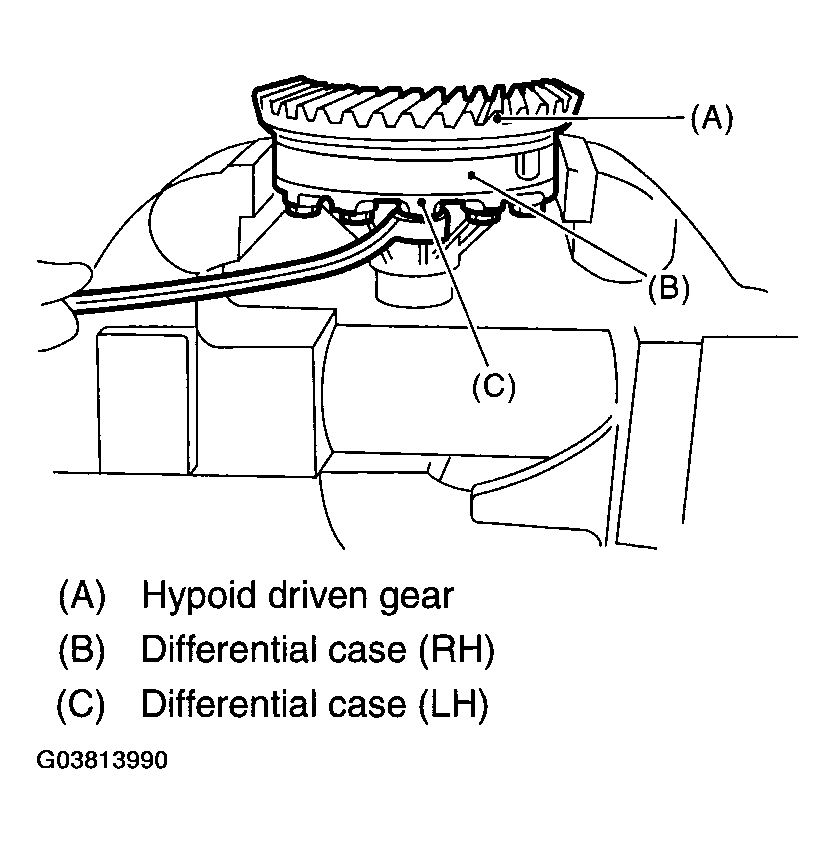

Fig 2: Removing Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

Fig 3: Removing Straight Pin And Shaft
Courtesy of SUBARU OF AMERICA, INC.
