Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Reduction Gear With MPT
Reduction Gear With MPT

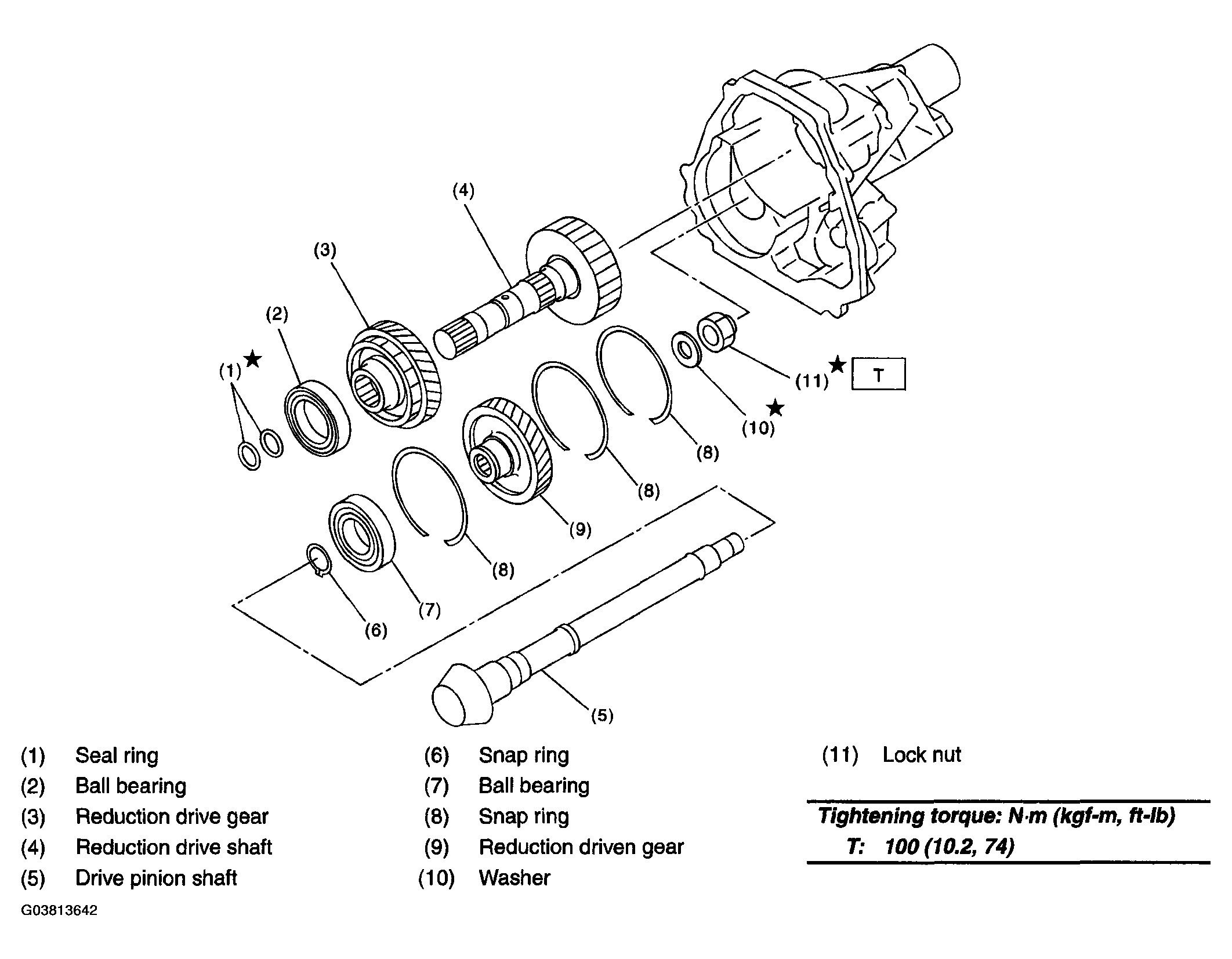

Fig 1: Exploded View Of Reduction Gear With Torque Specifications (With MPT)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
