Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case With MPT
Transfer And Extension Case With MPT

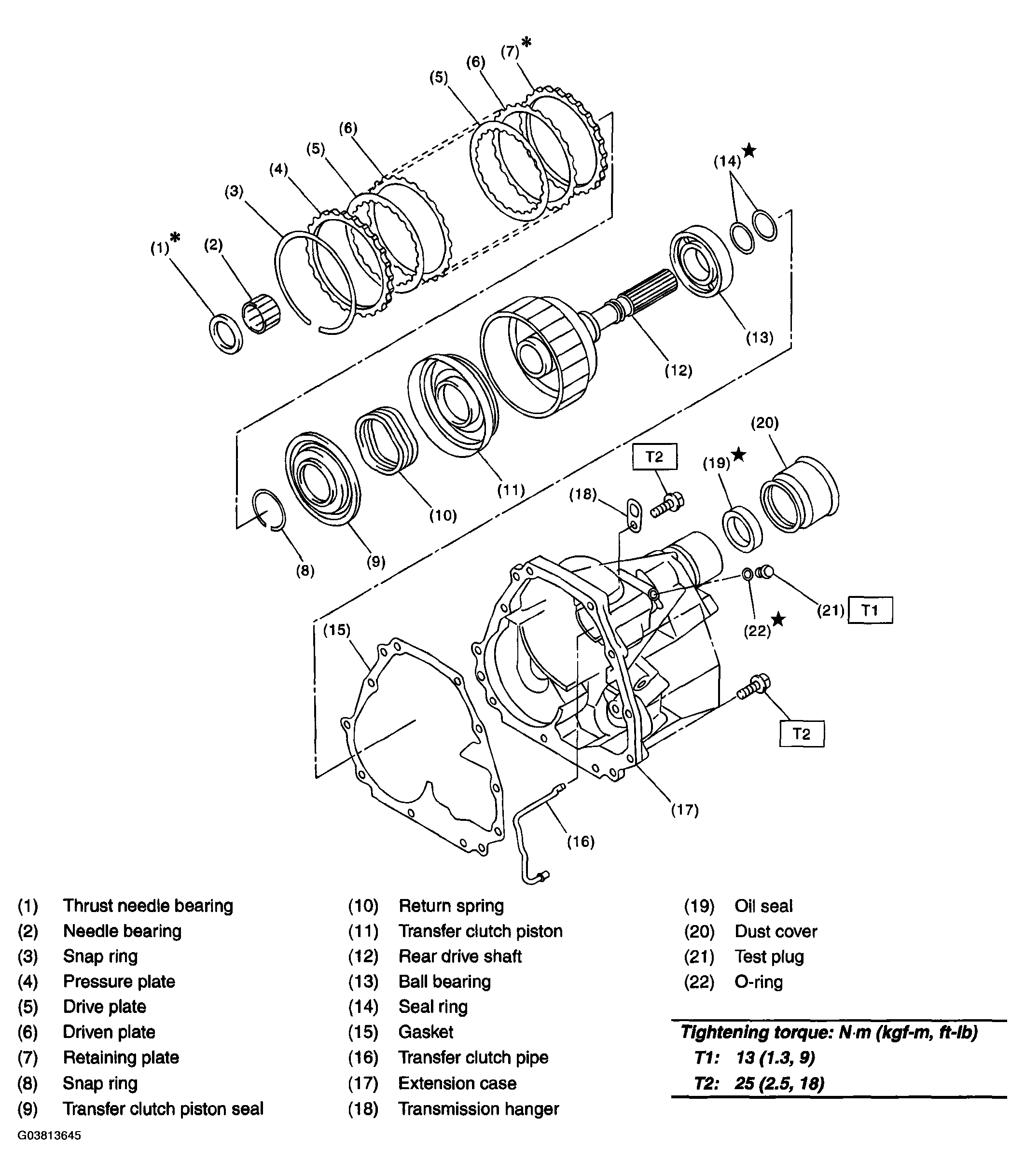

Fig 1: Exploded View Of Transfer And Extension Case With Torque Specifications (With MPT)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
