General Description
›
Components With Torque Specifications
›
At Select Lever
At Select Lever

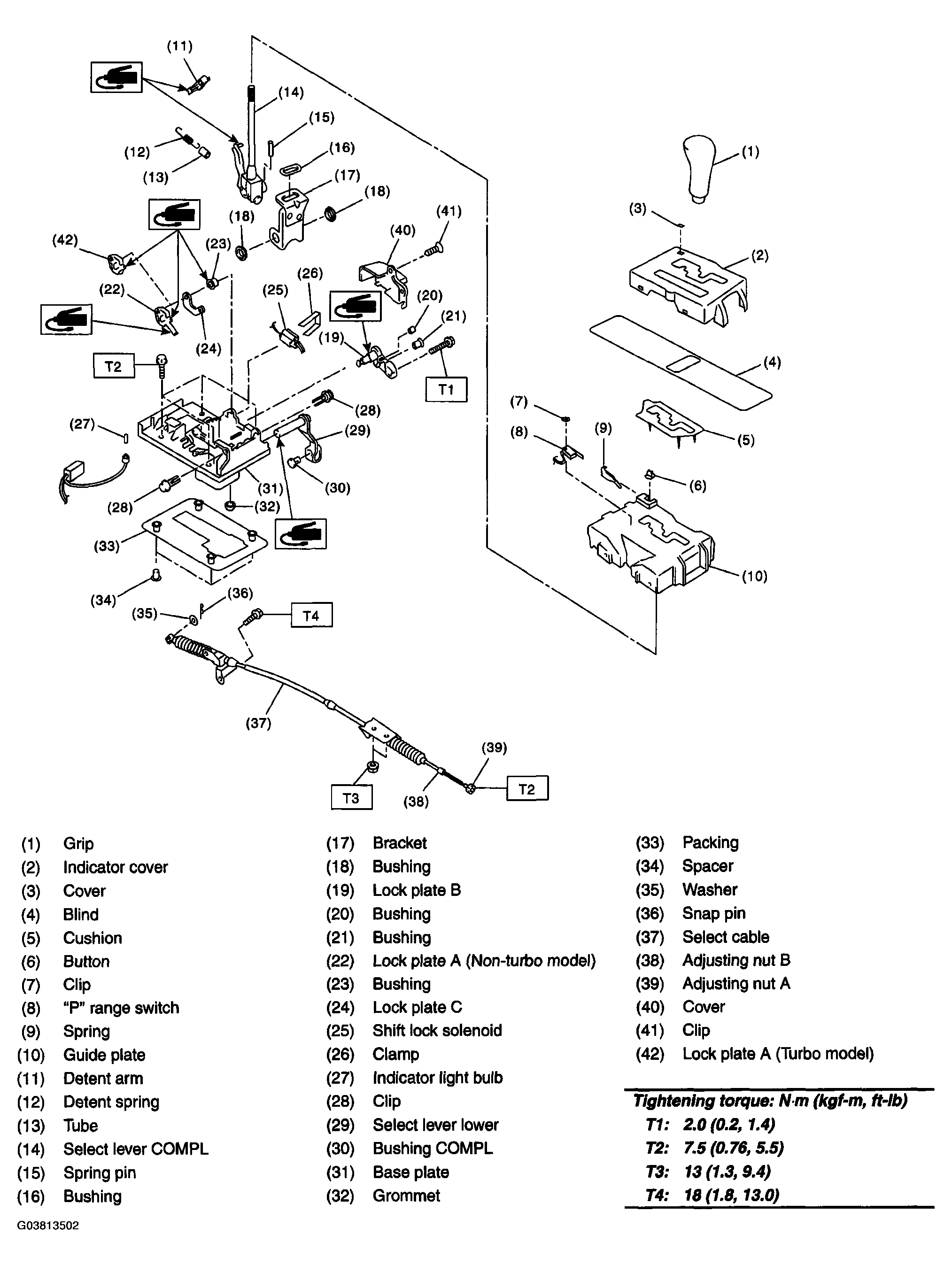

Fig 1: Exploded View Of AT Select Lever With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
