Fuel Injection (Fuel Systems) -- H4SO
›
General Description
›
Components With Torque Specifications
›
Fuel Line
Fuel Line

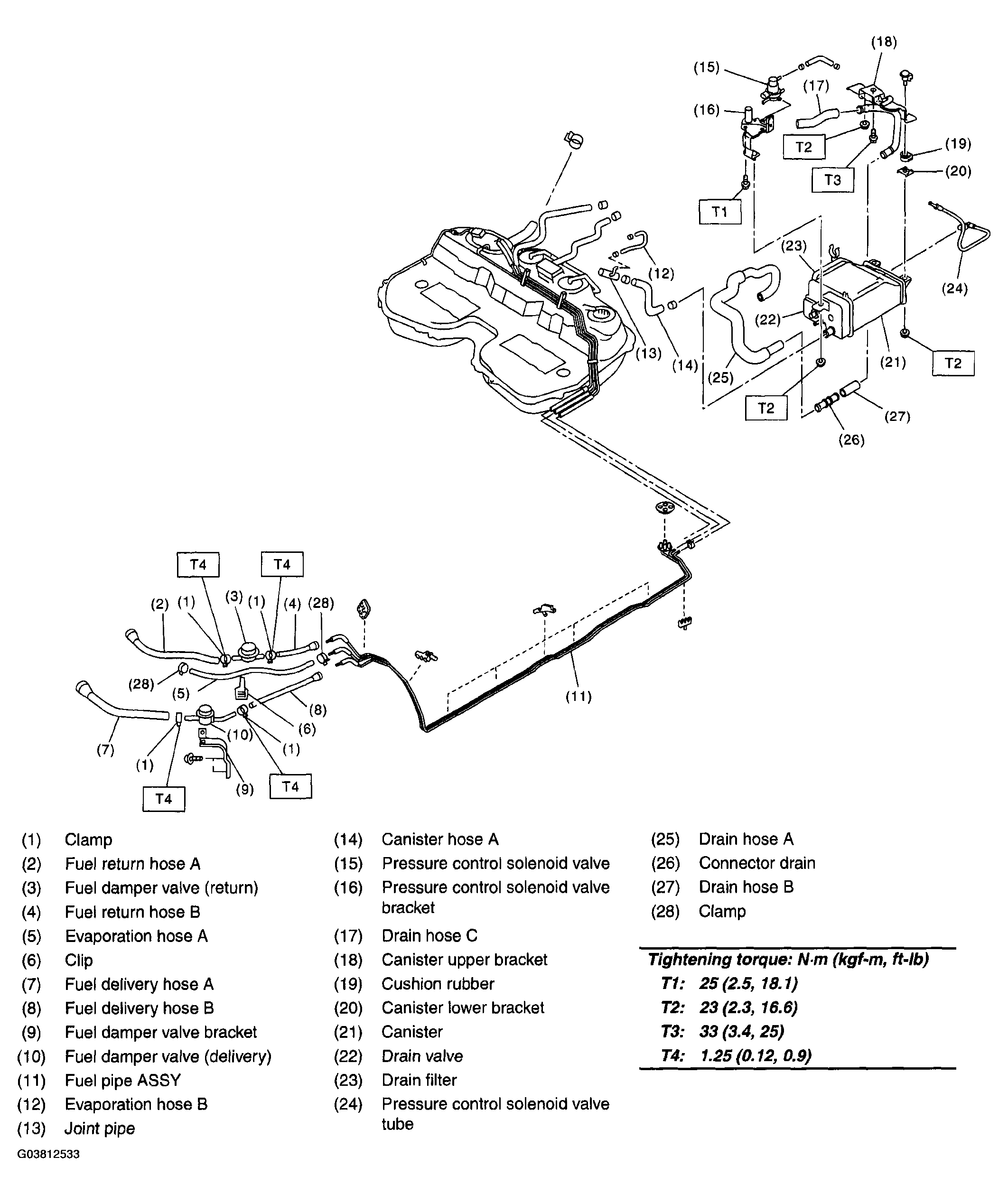

Fig 1: Exploded View Of Fuel Line And Tightening Torques
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
