Accelerator Pedal

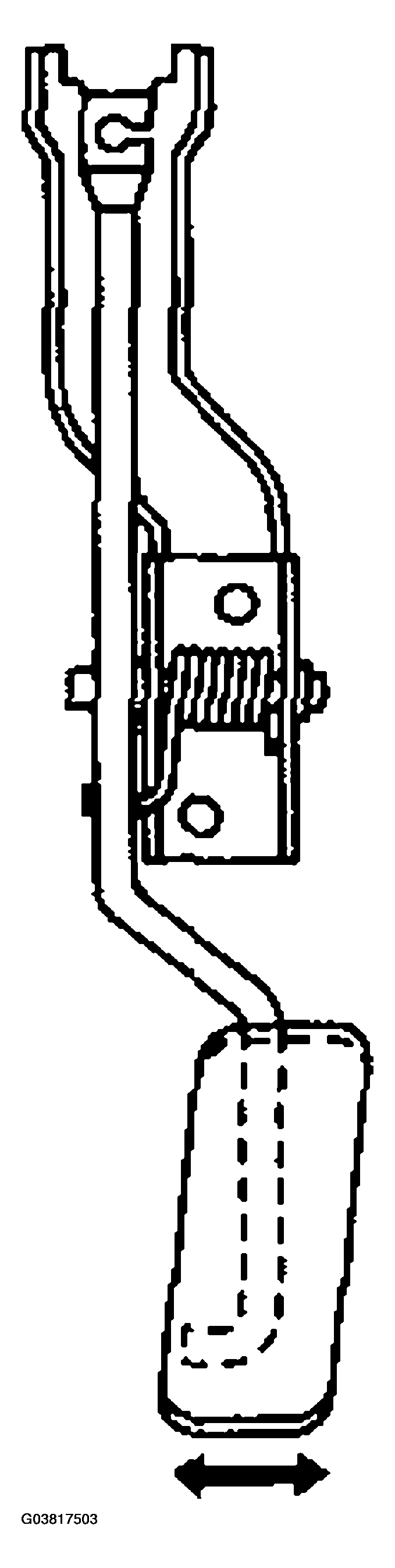

- Lightly move the pedal pad in lateral direction to ensure that pedal deflection is in specified range.
- If excessive deflection is noted, replace the bushing and clip with new ones.
Deflection of accelerator pedal:
Service limit
2.0 mm (0.079 in) or less
