General Description
›
Components With Torque Specifications
›
Generator
Components With Torque Specifications: Generator

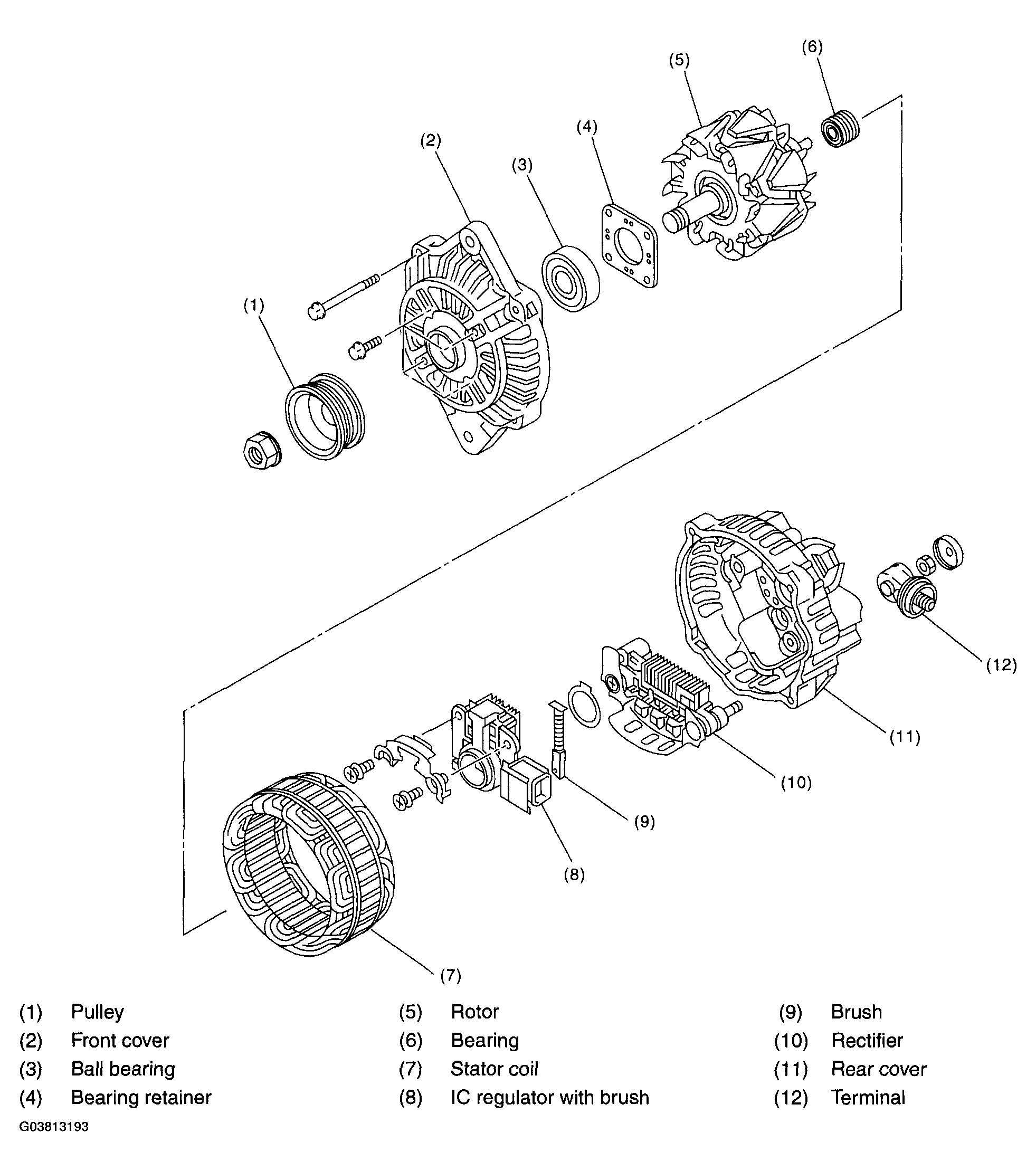

Fig 1: Exploded View Of Generator
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
