Starting/Charging Systems: Starter: Installation

Install in the reverse order of removal.

Tightening torque:

50 N.m (5.1 kgf-m, 37 ft-lb)

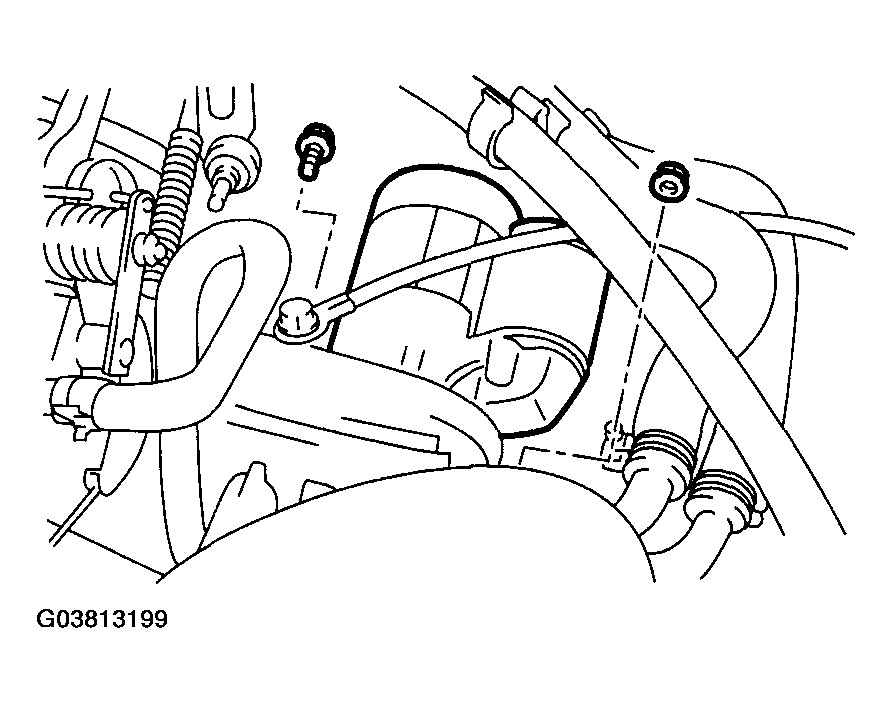

Fig 1: Tightening Bolts

Courtesy of SUBARU OF AMERICA, INC.
