Camshaft Position Sensor: Removal

Disconnect the ground cable from battery.

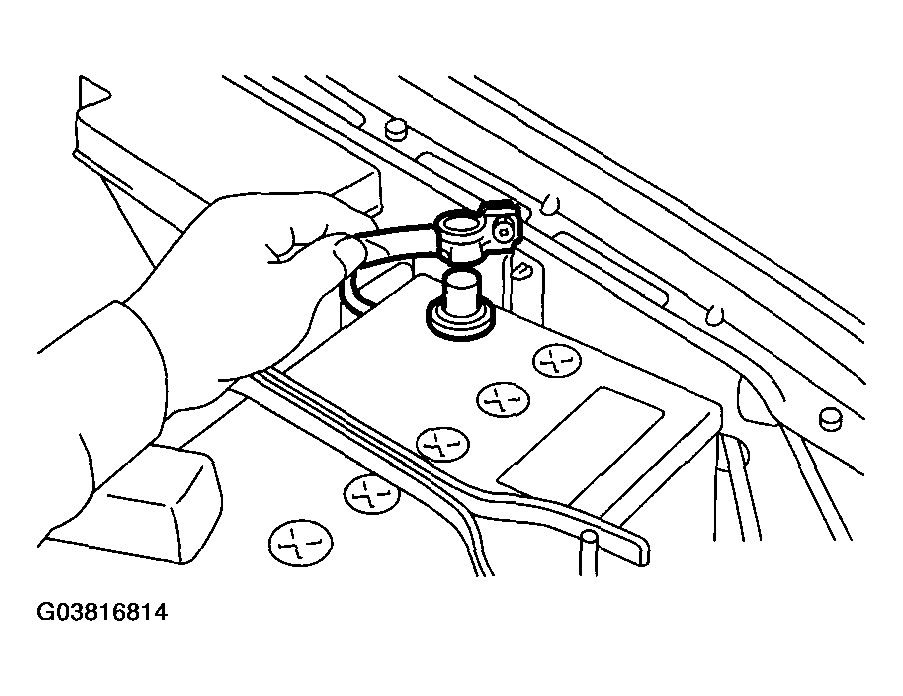

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the camshaft position sensor.

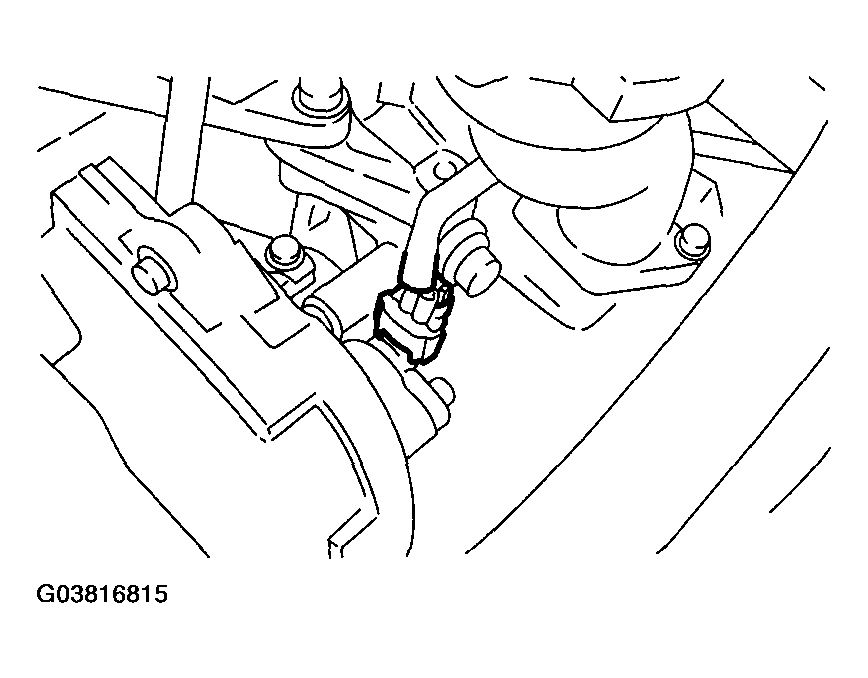

Fig 2: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor from the camshaft support LH.

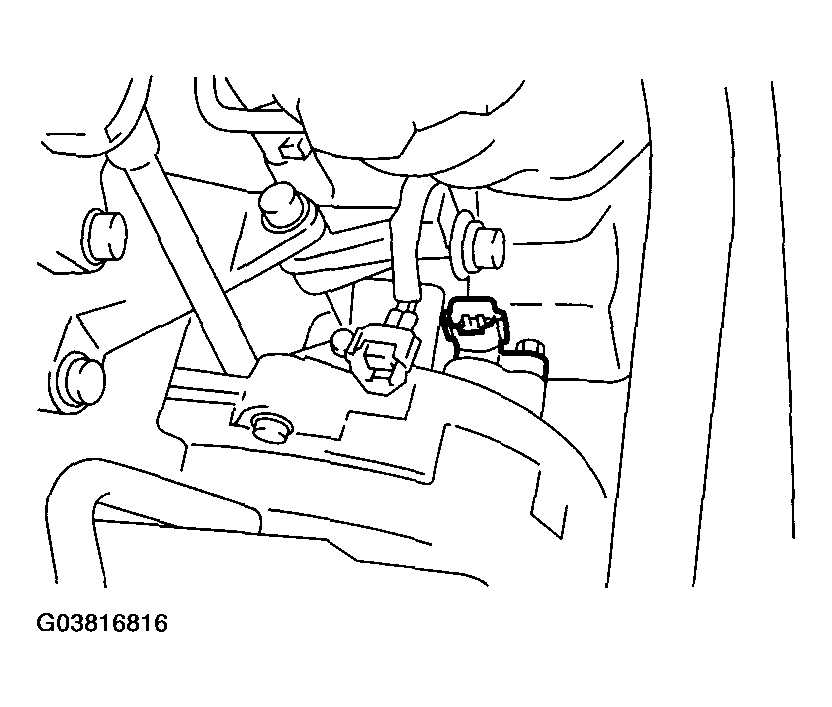

Fig 3: Removing Camshaft Position Sensor From Camshaft Support LH
Courtesy of SUBARU OF AMERICA, INC.
