Fuel Pump Control Unit: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear quarter trim. < Ref. to REMOVAL , Rear Quarter Trim. >
Disconnect the connector from the fuel pump control unit.

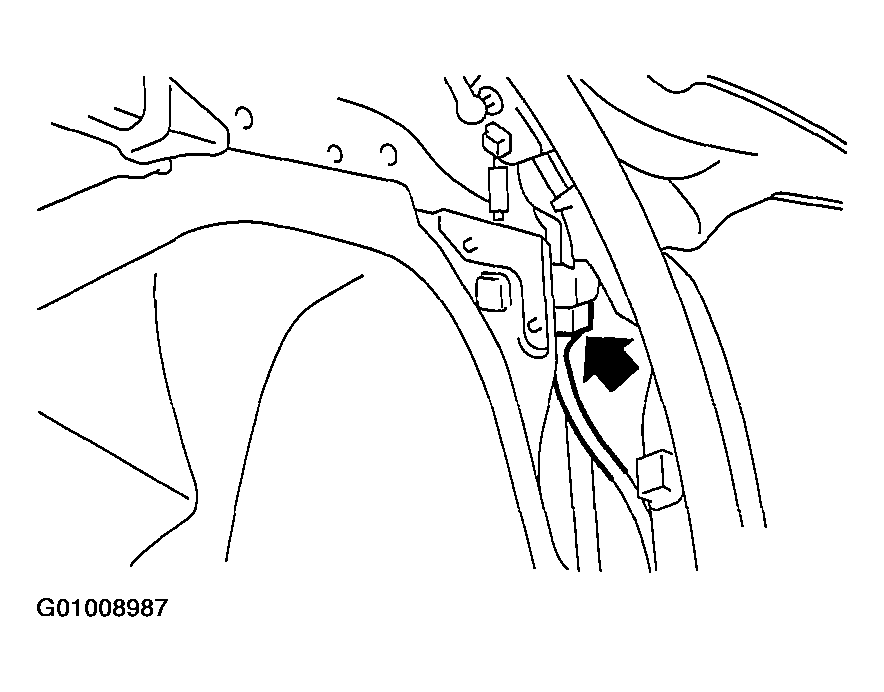

Fig 2: Disconnecting Connector From Fuel Pump Control Unit
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump control unit.

Fig 3: Removing Fuel Pump Control Unit
Courtesy of SUBARU OF AMERICA, INC.
