Fuel Injection (Fuel Systems) -- H4DOTC
›
General Description
›
Components With Torque Specifications
›
Fuel Filler Pipe
Fuel Filler Pipe

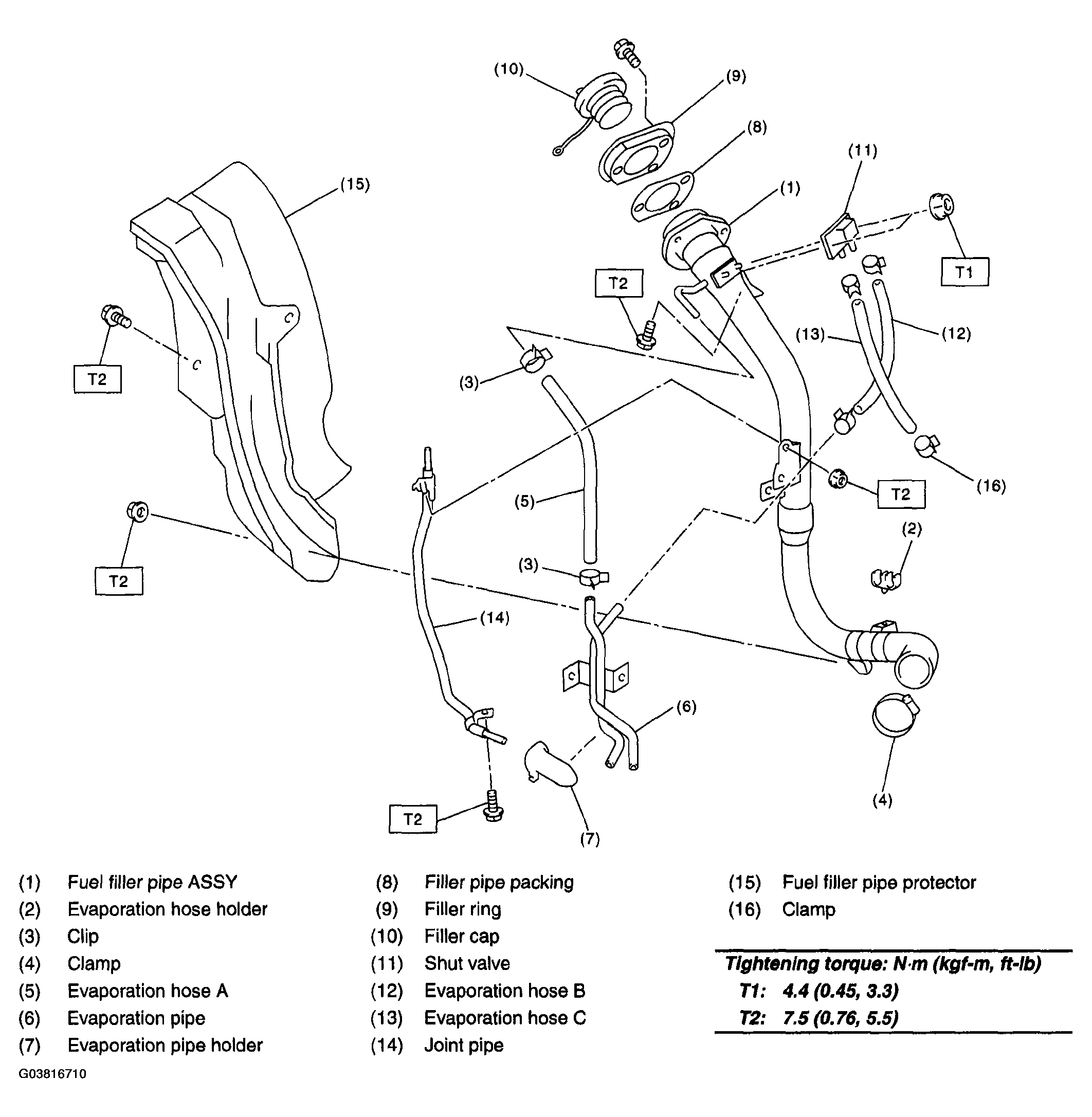

Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
