Subaru
›
2005
›
Impreza WRX STi
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection (Fuel Systems) -- H4DOTC
›
General Description
›
Components With Torque Specifications
›
Intake Manifold
Intake Manifold

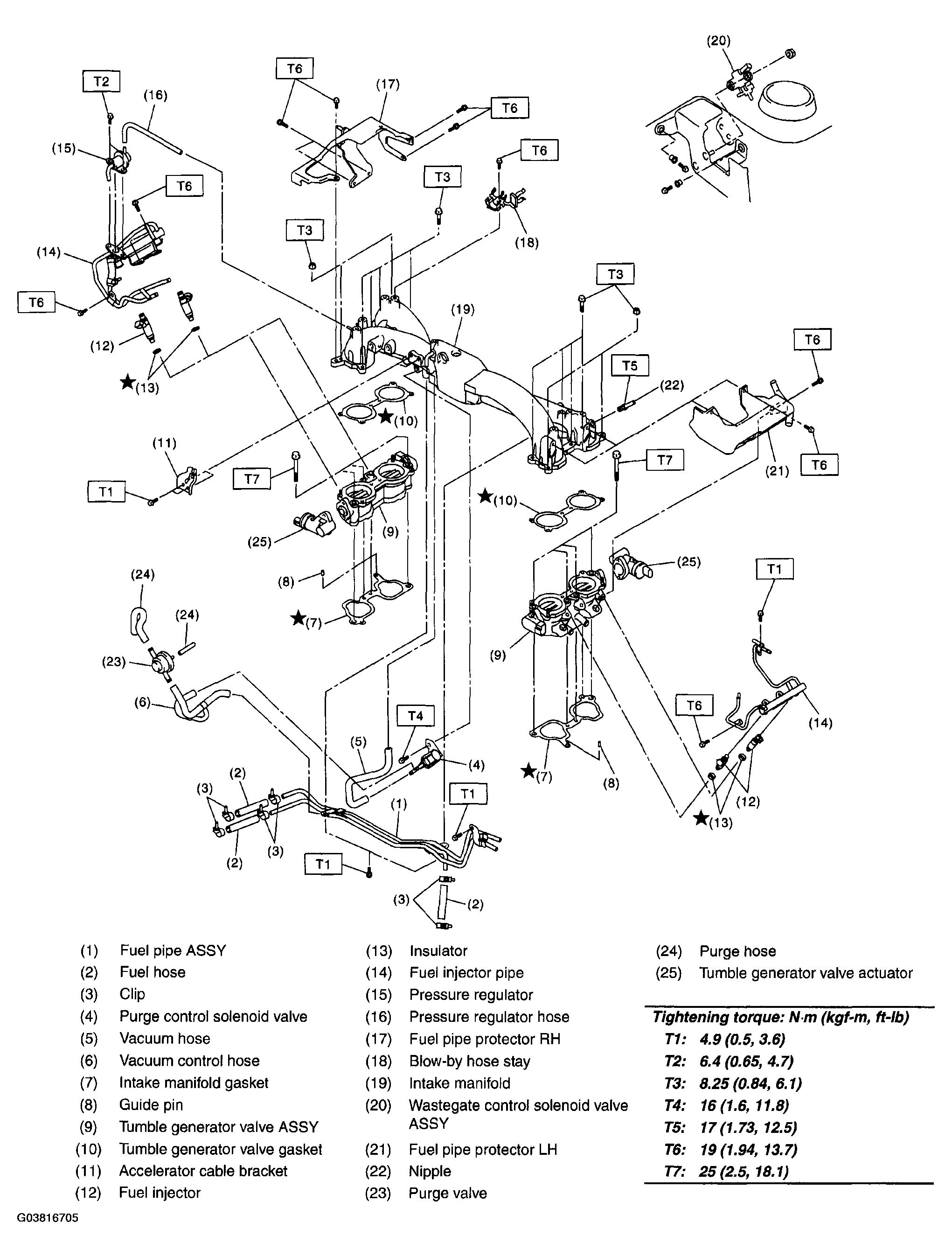

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
