Intake Manifold: Removal

Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , Procedure, Fuel. >
Open the fuel filler lid and remove the fuel filler cap.

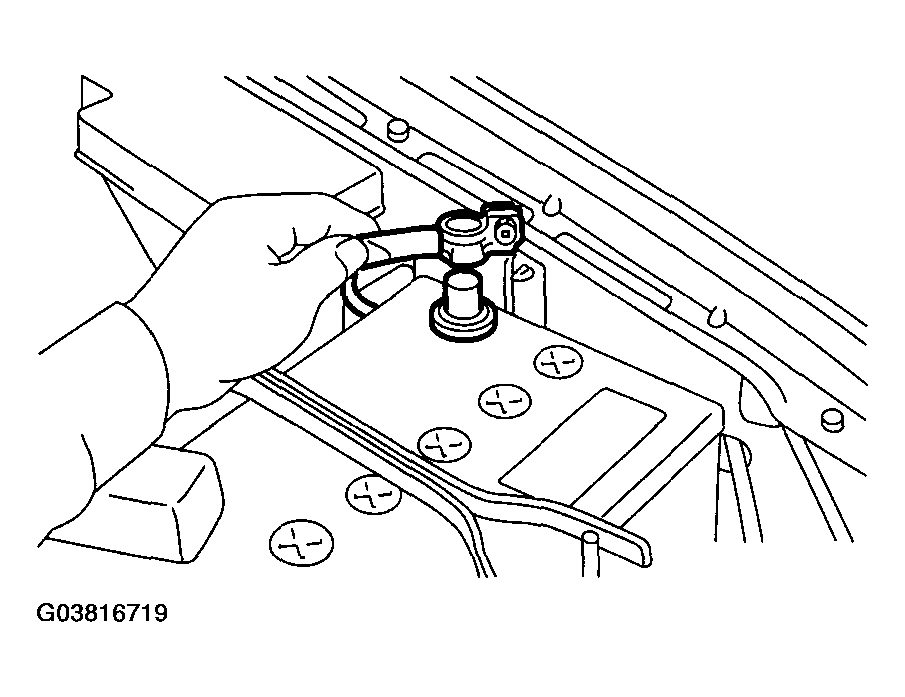

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover.
Drain the engine coolant about 3.0 l (3.2 US qt, 2.6 lmp qt).

Fig 2: Draining Engine Coolant
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner upper cover and air intake boot. < Ref. to REMOVAL , Air Cleaner Case. >
Remove the air cleaner element.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >

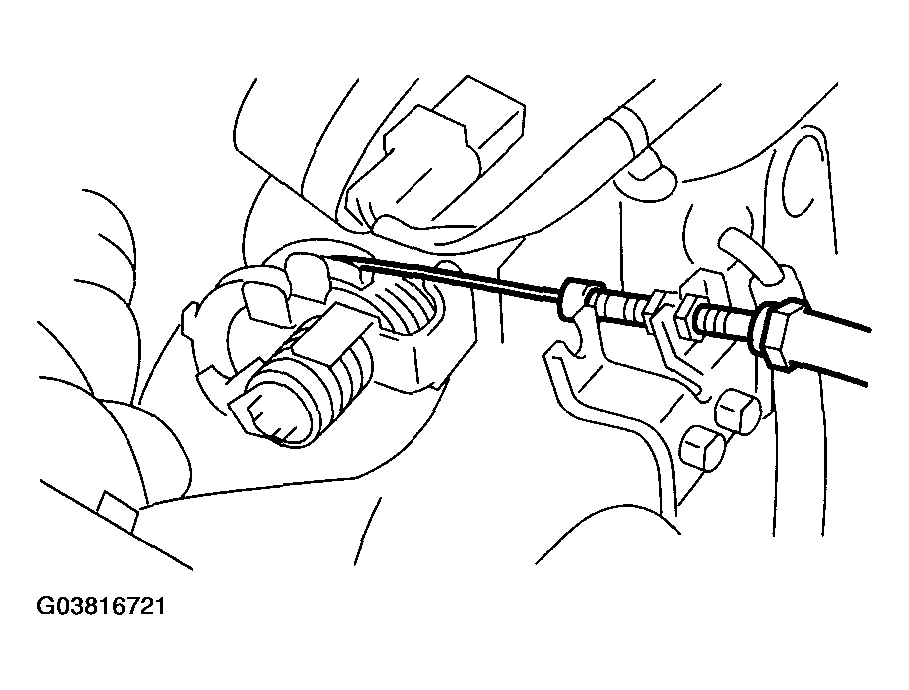

Disconnect the accelerator cable.

Fig 3: Disconnecting Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the coolant filler tank. < Ref. to REMOVAL , Coolant Filler Tank. >
Remove the power steering pump.
1. Remove the front side V-belt. < Ref. to REMOVAL , V-belt. >
2. Disconnect the power steering switch connector.

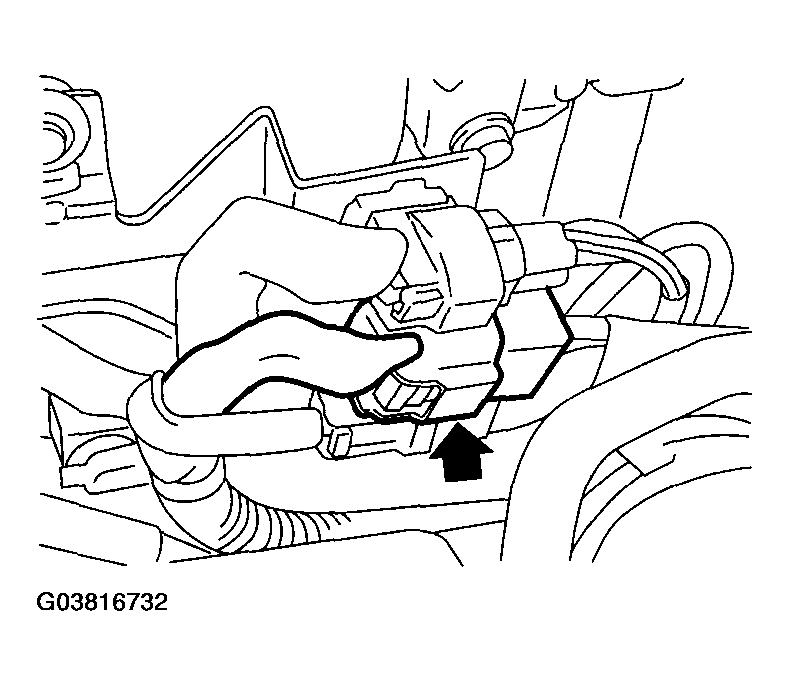

  Fig 4: Locating Power Steering Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.

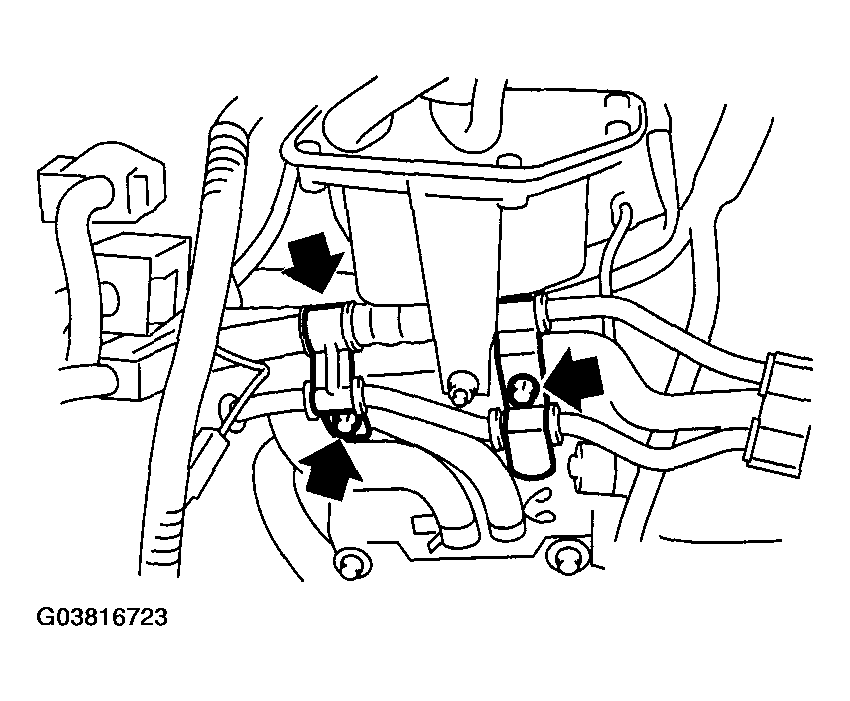

3. Remove the bolts which secure the power steering pipe brackets to the intake manifold.
  NOTE: Do not disconnect the power steering hose.

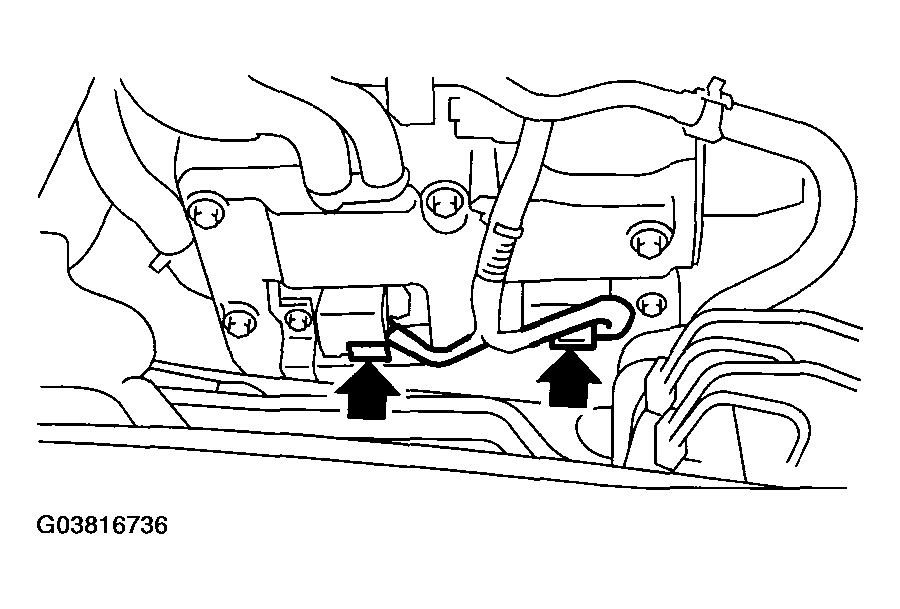

  Fig 5: Removing Power Steering Pipe Brackets To Intake Manifold Securing Bolt
  Courtesy of SUBARU OF AMERICA, INC.

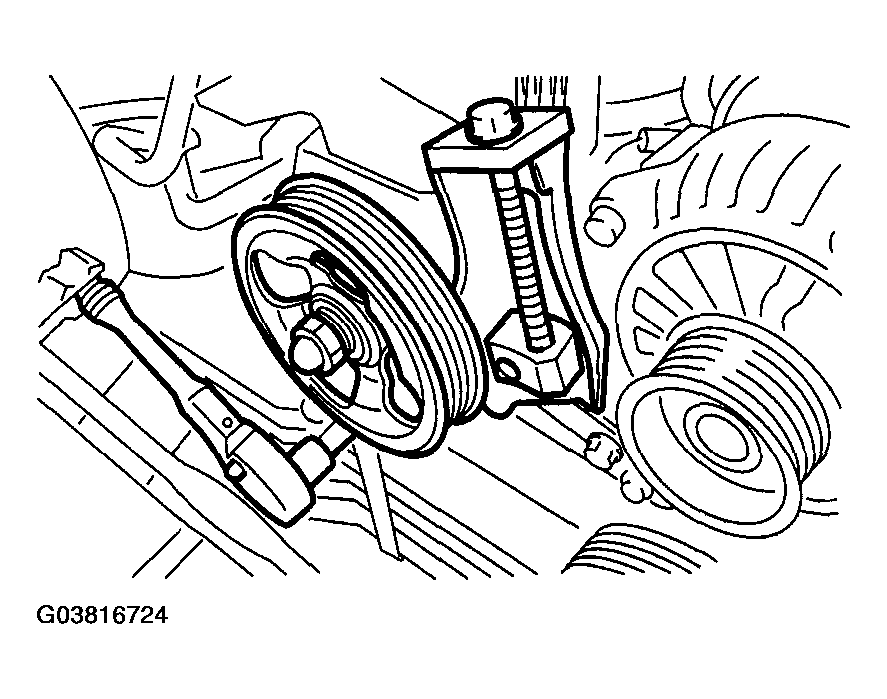

4. Remove the bolts which secure the power steering pump bracket.

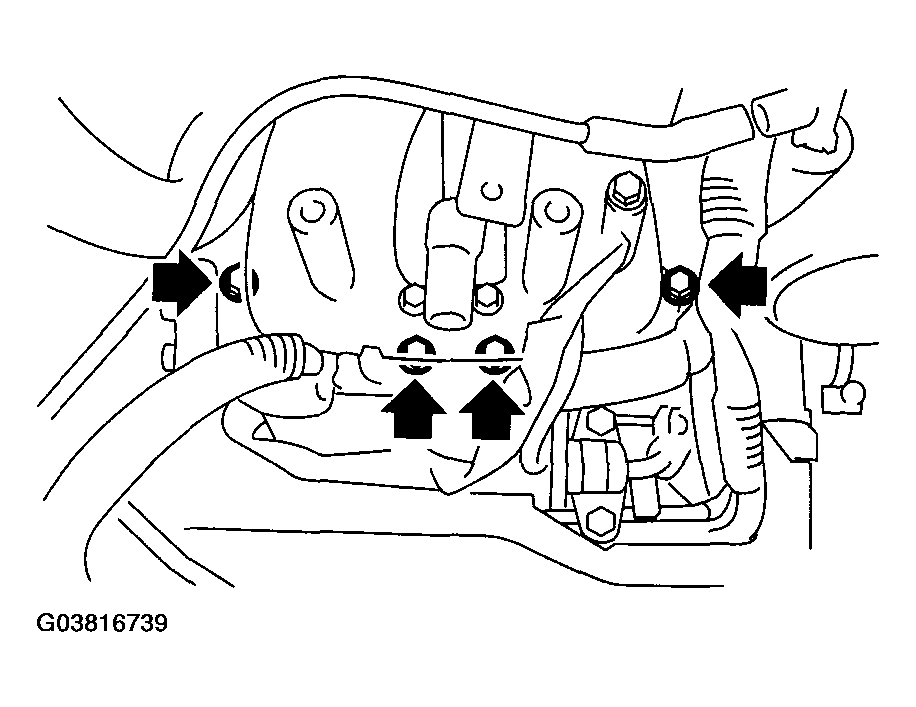

  Fig 6: Removing Power Steering Pump Bracket Securing Bolt
  Courtesy of SUBARU OF AMERICA, INC.
5. Remove the power steering tank from the bracket by pulling it upward.

  Fig 7: Removing Power Steering Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.

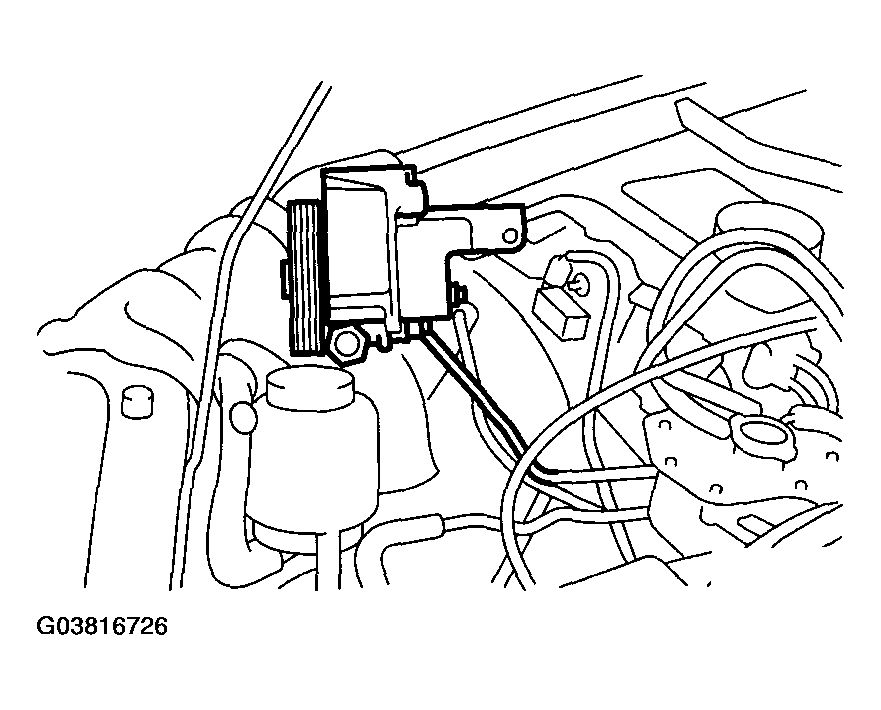

6. Place the power steering pump on the right side wheel apron.

  Fig 8: Placing Power Steering Pump On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.

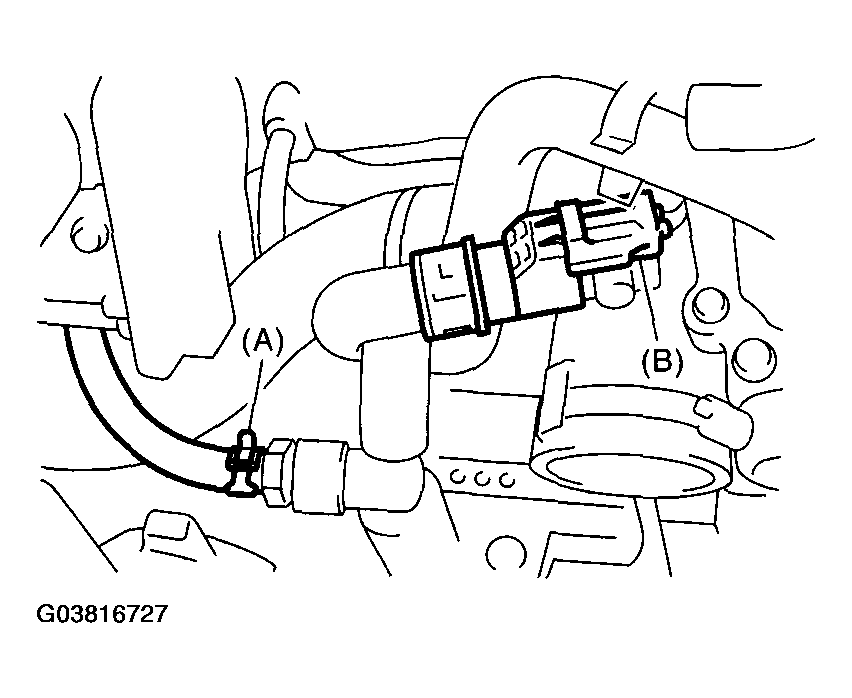

Disconnect the emission hose (A) and connector (B) from the PCV hose assembly.

Fig 9: Disconnecting Emission Hose And Connector From PCV Hose Assembly
Courtesy of SUBARU OF AMERICA, INC.

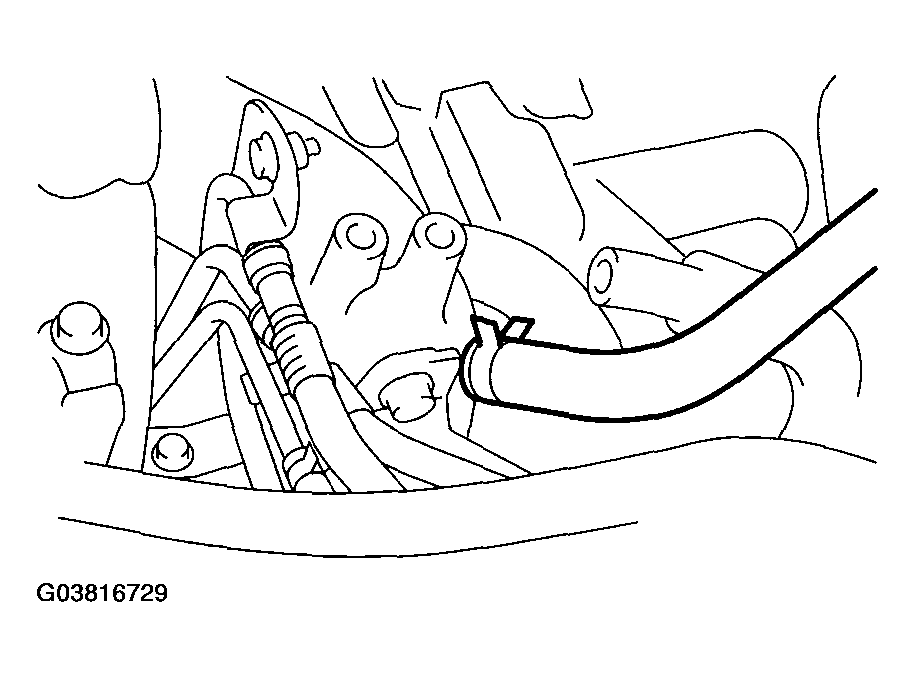

Disconnect the engine coolant hoses from the throttle body.

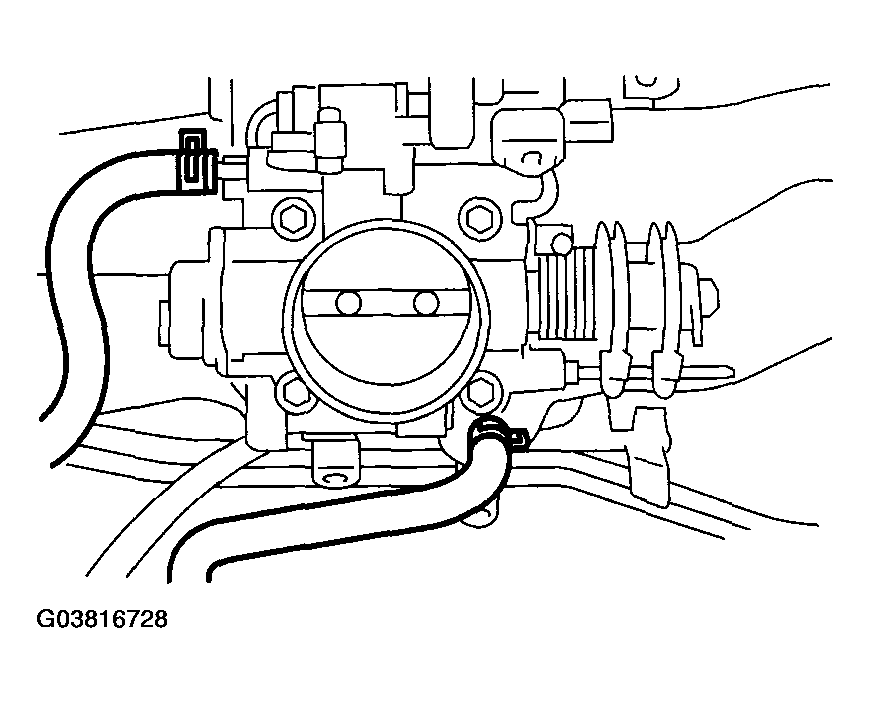

Fig 10: Disconnecting Engine Coolant Hoses From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the brake booster vacuum hose.

Fig 11: Disconnecting Brake Booster Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.

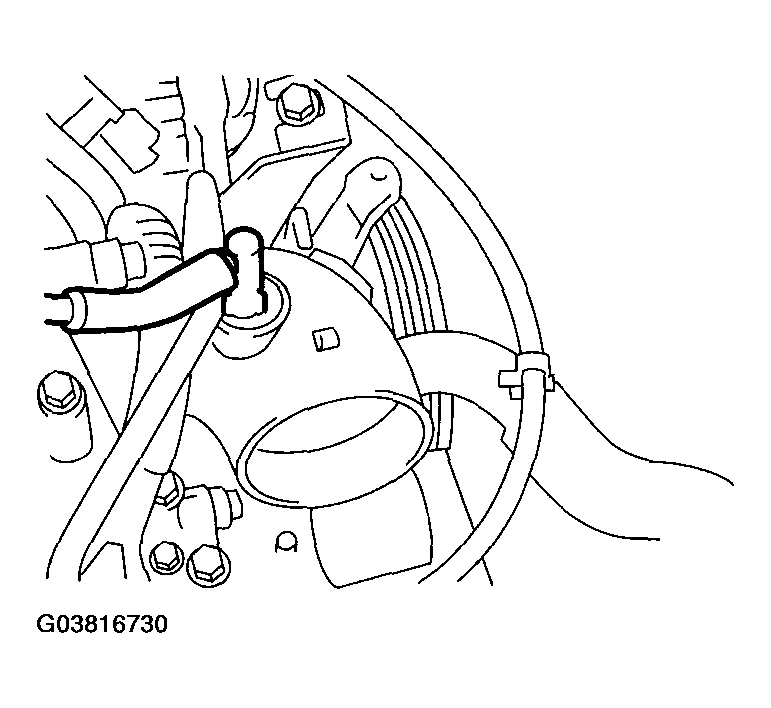

Disconnect the pressure hose from the intake duct.

Fig 12: Disconnecting Pressure Hose From Intake Duct
Courtesy of SUBARU OF AMERICA, INC.

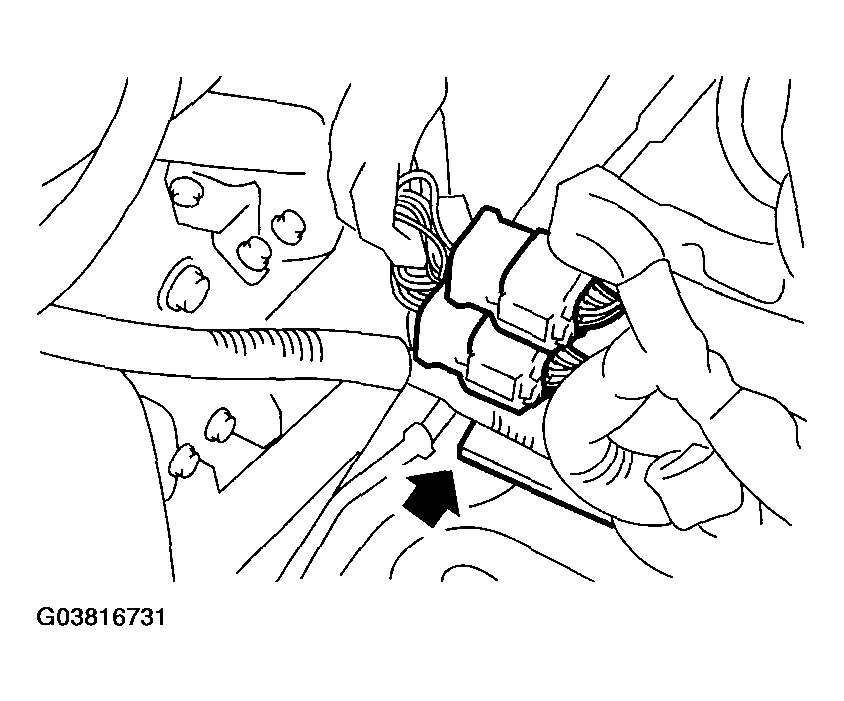

Disconnect the engine harness connectors from the bulkhead harness connectors.

Fig 13: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors(1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Disconnecting Engine Harness Connectors From Bulkhead Harness Connectors(2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

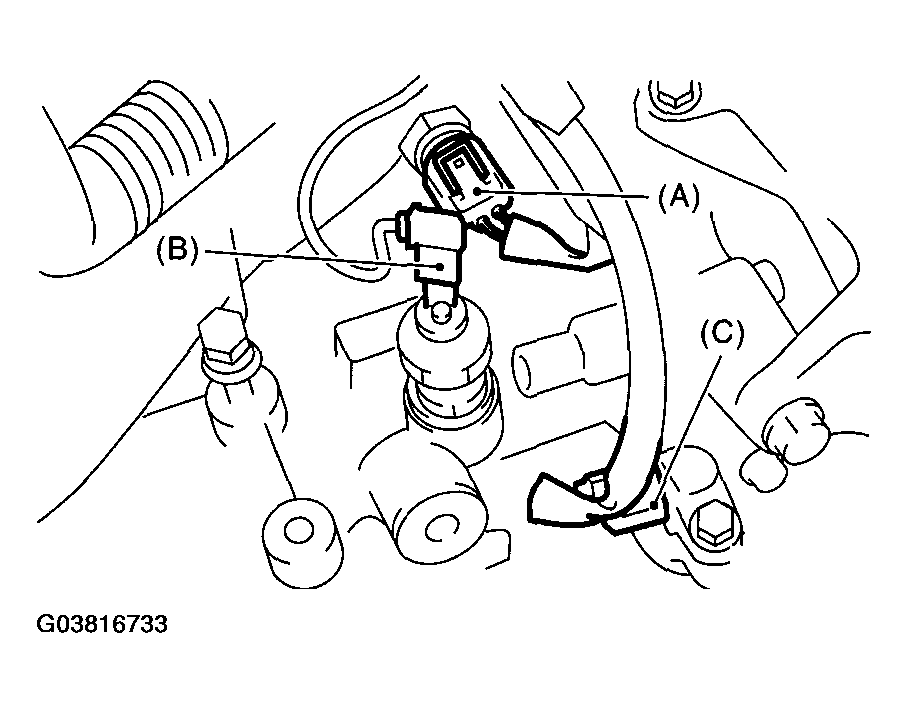

Disconnect the connectors from the engine coolant temperature sensor (A), oil pressure switch (B) and crankshaft position sensor (C).

Fig 15: Locating Engine Coolant Temperature Sensor, Oil Pressure Switch And Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

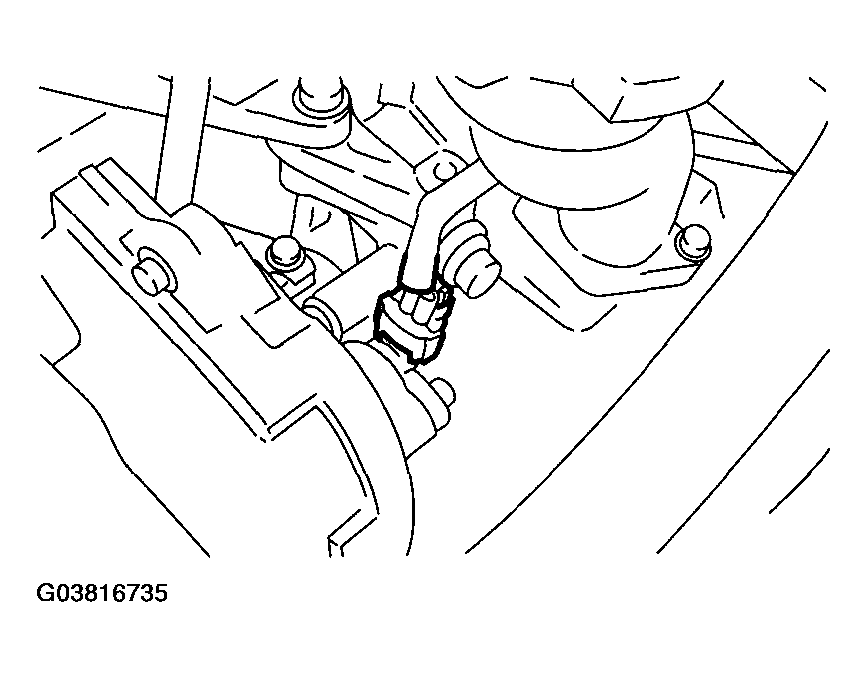

Disconnect the knock sensor connector.

Fig 16: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

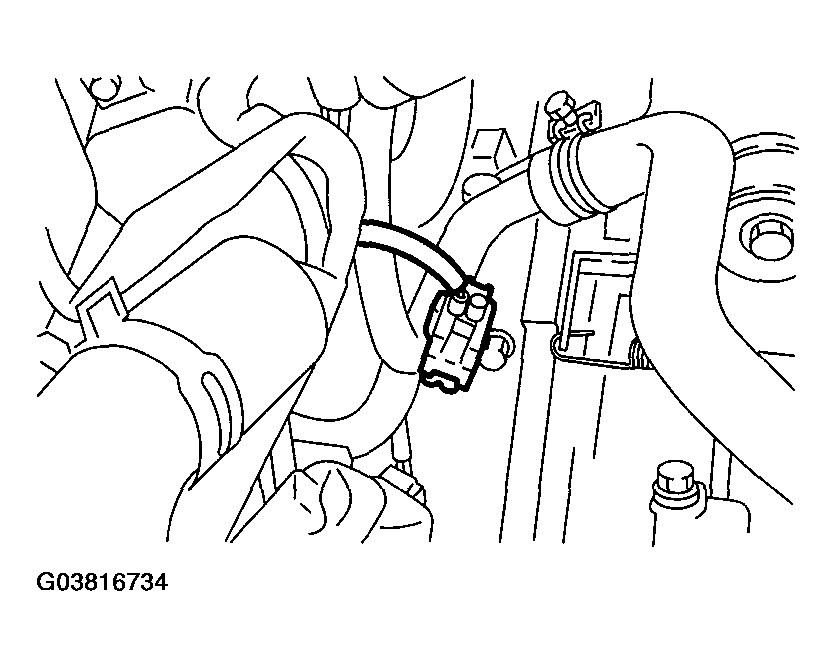

Disconnect the connector from the camshaft position sensor.

Fig 17: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

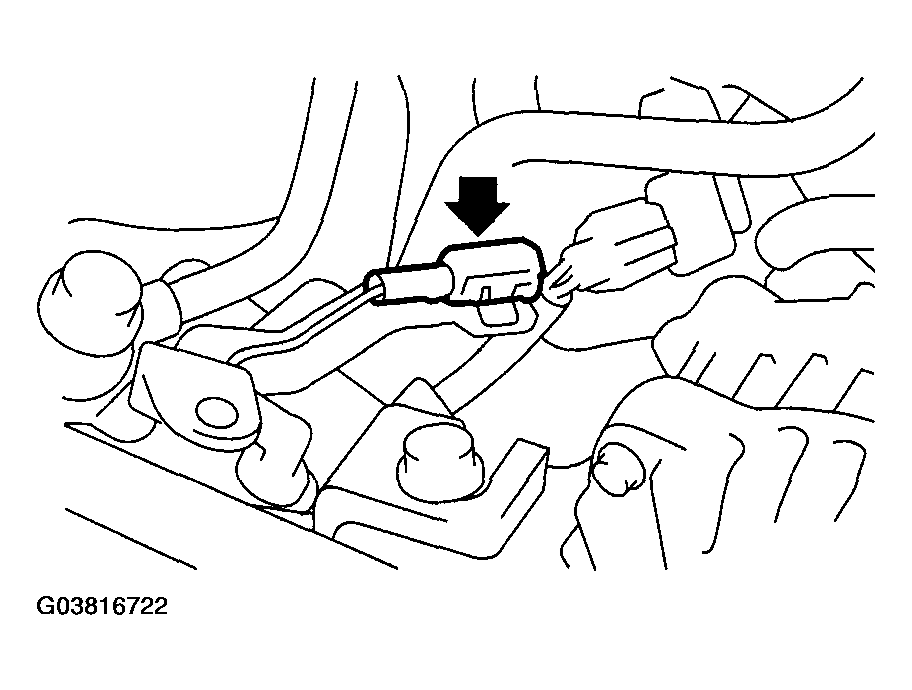

Disconnect the connector from the ignition coil.

Fig 18: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.

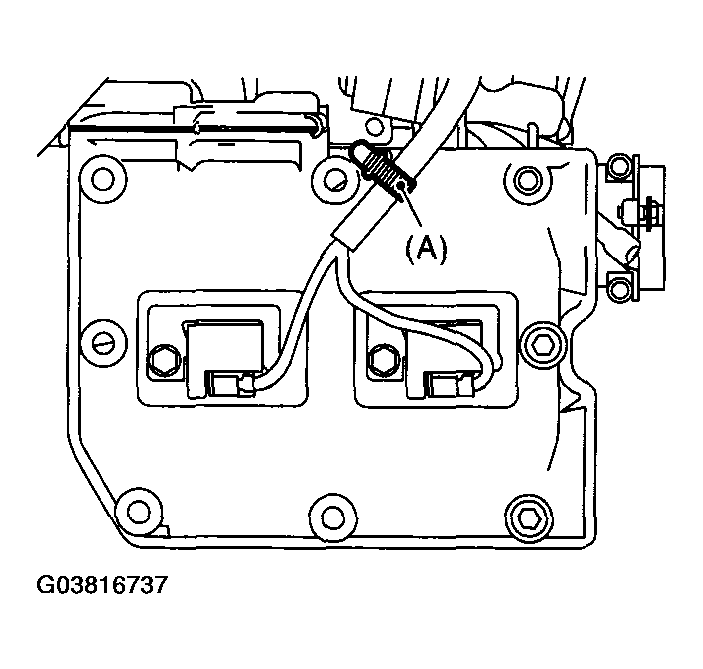

Disconnect the engine harness fixed by clip (A) from the bracket.

Fig 19: Disconnecting Engine Harness Fixed By Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.

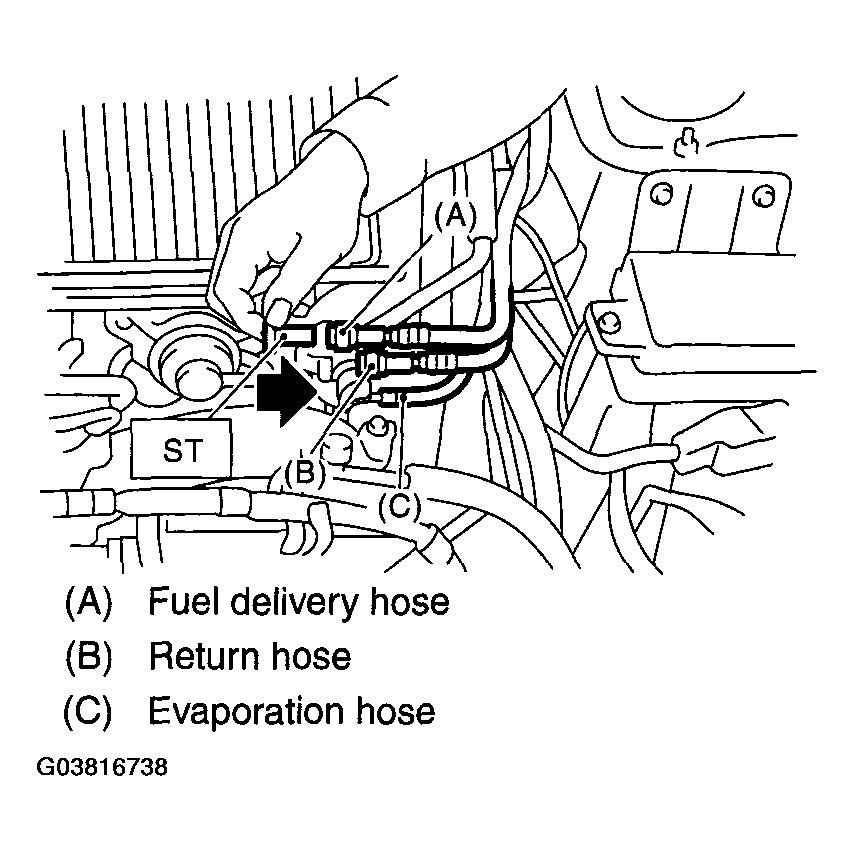

Using ST, disconnect fuel hoses from fuel pipes. < Ref. to , REMOVAL , Fuel Delivery, Return and Evaporation lines. >
CAUTION:
- Be careful not to spill fuel.
- Catch fuel from hoses using a container or cloth.
  ST 42099AE000 CONNECTOR REMOVER

  Fig 20: Disconnecting Fuel Hoses From Fuel Pipes Using Special Tool
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the intake manifold to the cylinder heads.

Fig 21: Removing Intake Manifold To Cylinder Heads Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
