Throttle Body: Installation

Install in the reverse order of removal.
NOTE: Always use a new gasket.

Tightening torque:

22 N.m (2.2 kgf-m, 15.9 ft-lb)

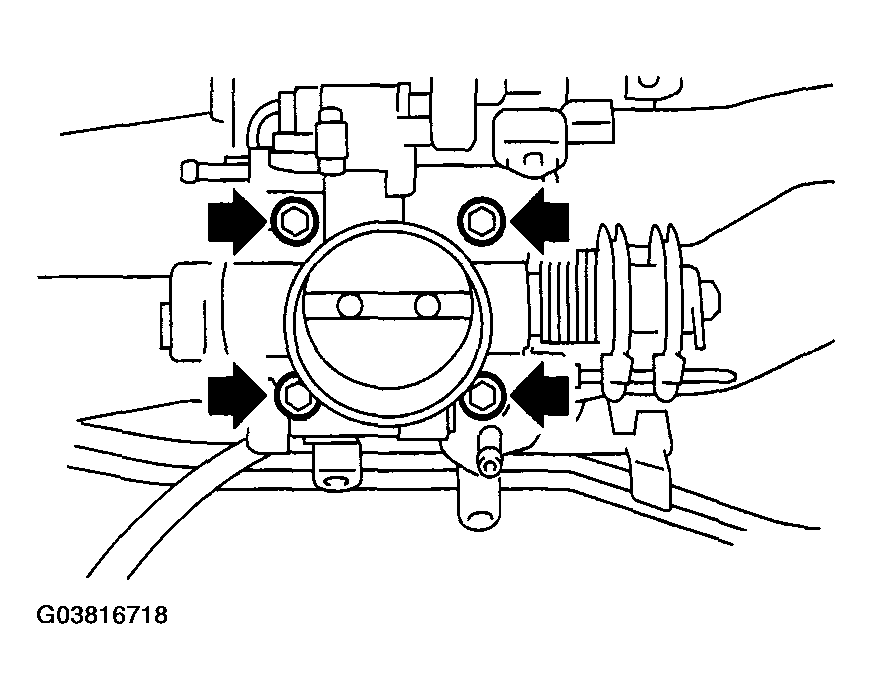

Fig 1: Installing Throttle Body To Intake Manifold Securing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Adjust the play of accelerator cable. < Ref. to INSTALLATION , Accelerator Control Cable. >
