Accelerator Pedal: Disassembly

  1. Remove the clip, and then remove the accelerator pedal lever from bracket.
  2. Pull out the spring pin, and then remove the accelerator pedal from accelerator pedal lever.

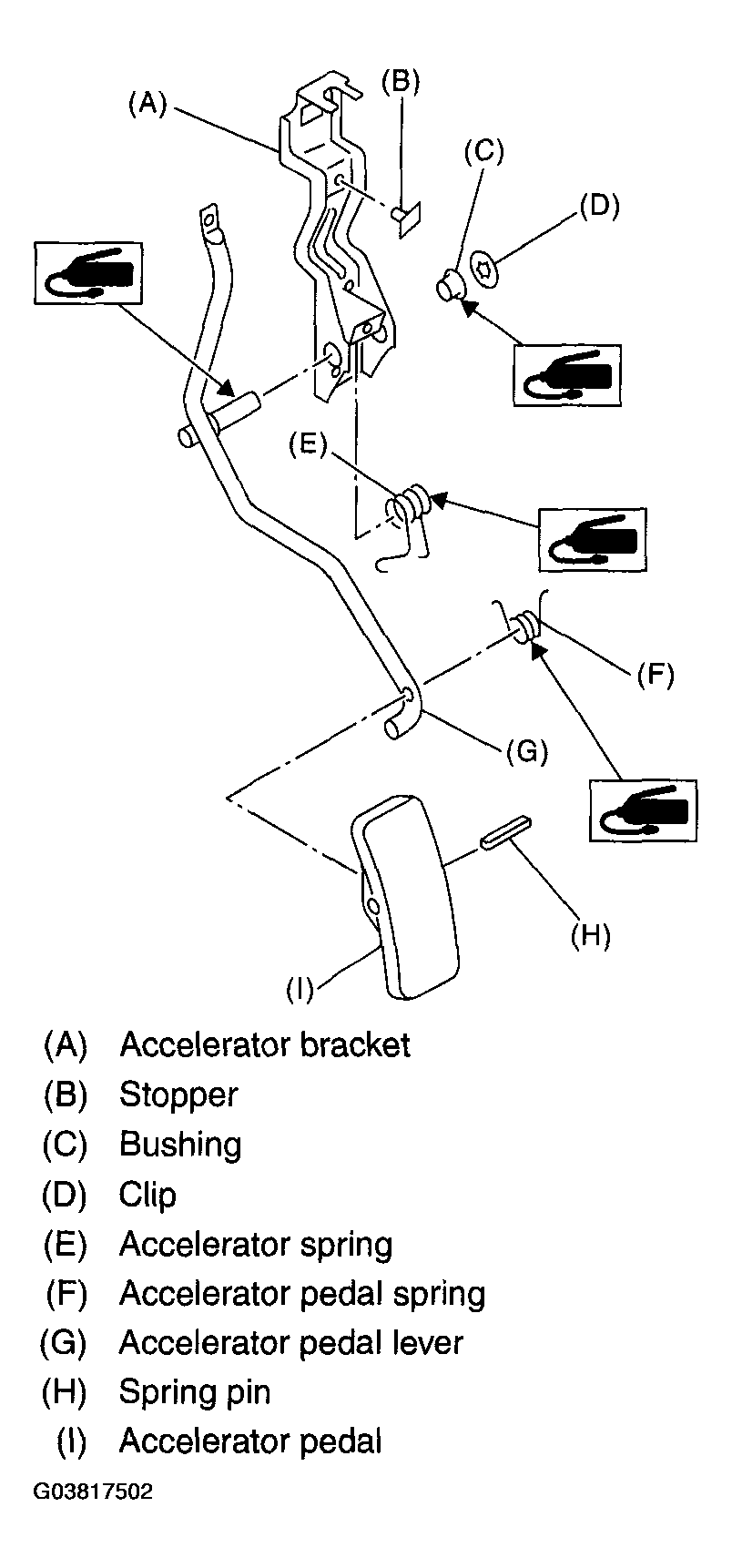

    Fig 1: Removing Accelerator Pedal From Accelerator Pedal Lever
    G03817502Courtesy of SUBARU OF AMERICA, INC.
