Electronic Throttle Control Relay: Removal

Disconnect the ground cable from battery.

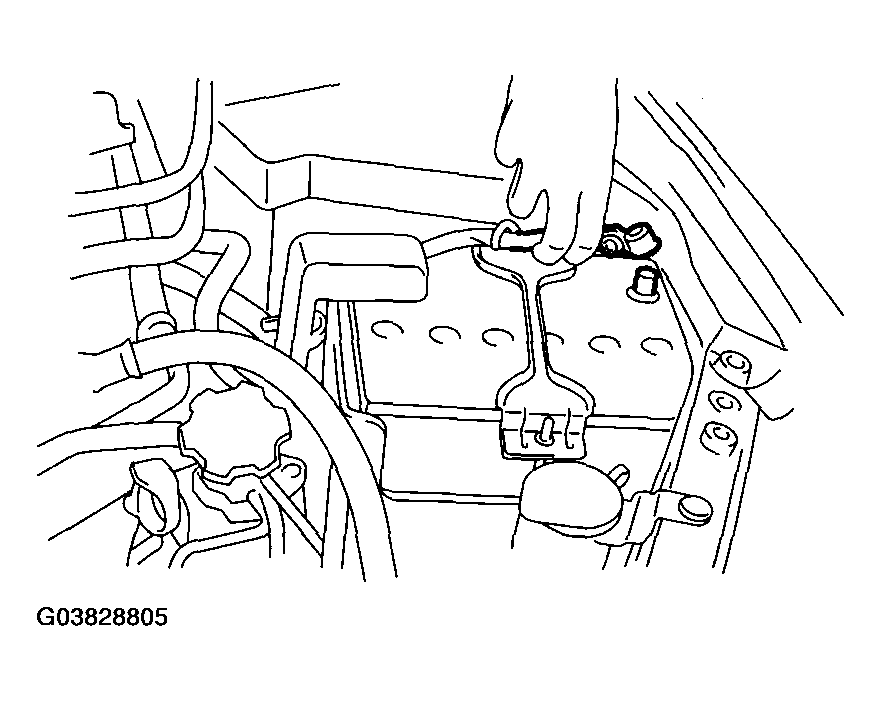

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. < Ref. to REMOVAL , Glove Box. >
Remove the harness cover (A).

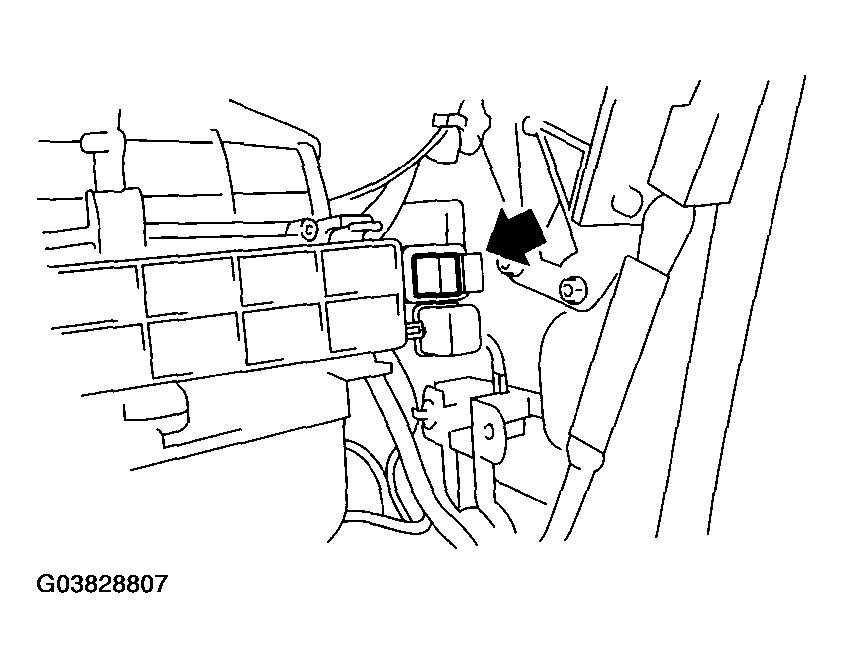

Fig 2: Removing Harness Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from electric throttle control relay.

Fig 3: Disconnecting Connector From Electric Throttle Control Relay
Courtesy of SUBARU OF AMERICA, INC.
