Fuel Damper Valve: Removal

Release the fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Remove the fuel clamper valve from fuel delivery line and fuel return line.

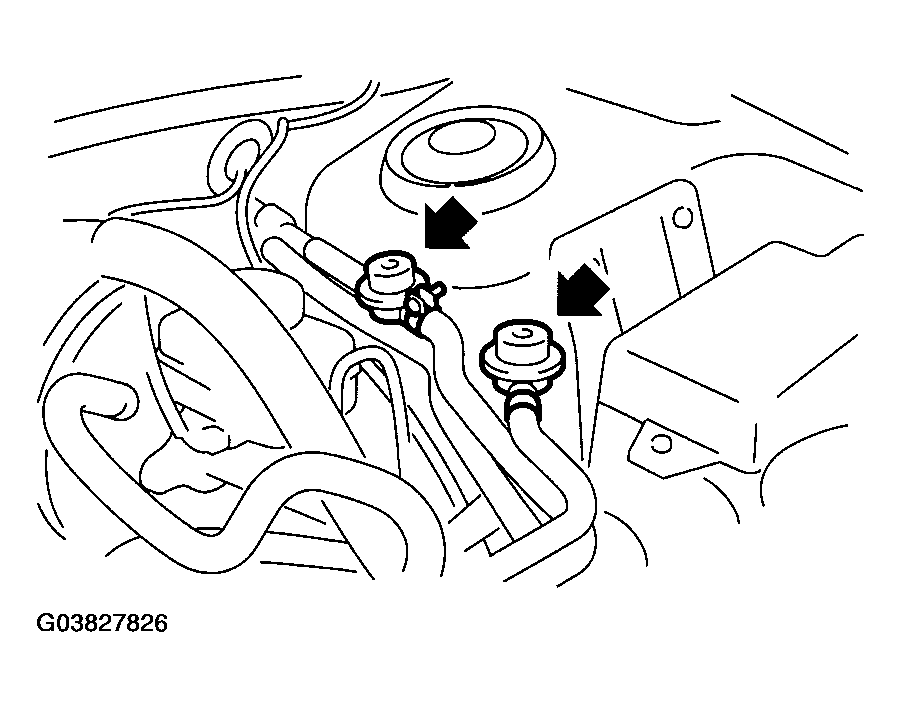

Fig 1: Removing Fuel Clamper Valve From Fuel Delivery Line And Fuel Return Line
Courtesy of SUBARU OF AMERICA, INC.
