RH Side

Install in the reverse order of removal.

NOTE: Use new O-rings.

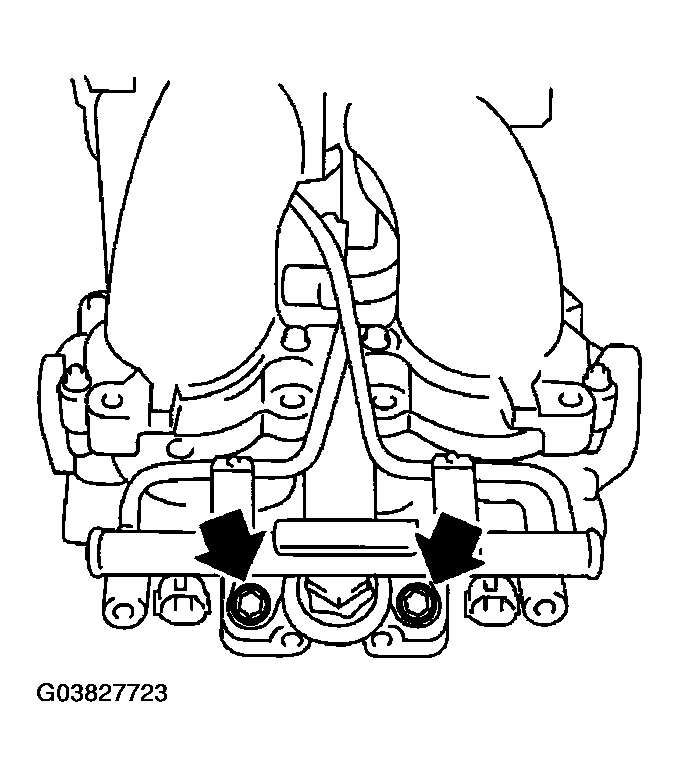

Fig 1: Installing Fuel Injector - RH Side (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

Fig 2: Installing Fuel Injector - RH Side (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

Fig 3: Installing Fuel Injector - RH Side (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
