Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO)
›
Diagnostic Trouble Code (DTC) Detecting Criteria
›
DTC P0607 Control Module Performance
›
Component Description
Component Description

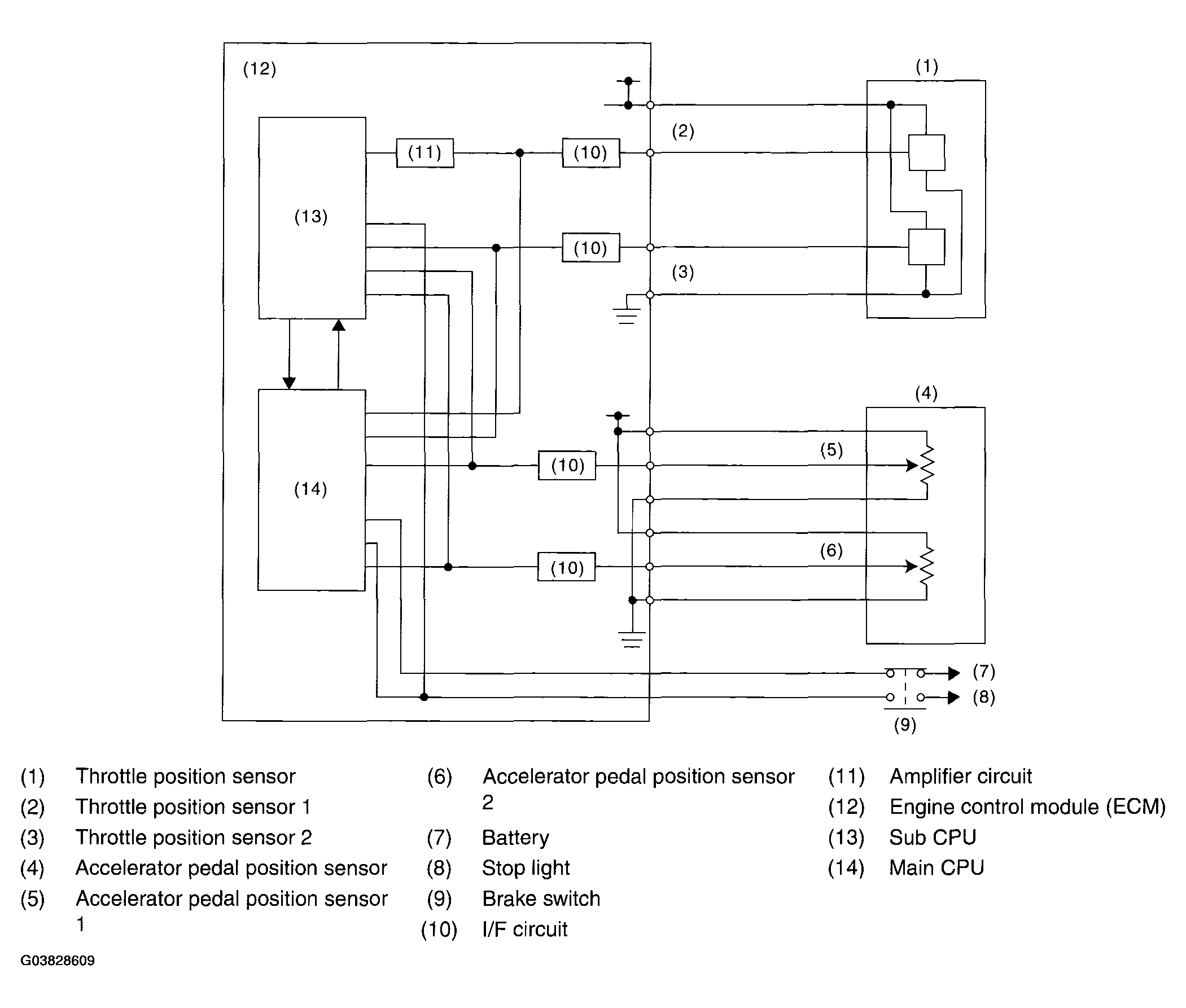

Fig 1: DTC P0607 Control Module Performance - Description Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
