Sub-Woofer Wiring Harness Re-Routing (15-113-04)

Publication date: 2004-10-11
Reference number: 15-113-04

SUB-WOOFER WIRING HARNESS RE-ROUTING

TECHNICAL SERVICE BULLETIN

Reference Number(s): 15-113-04, Date of Issue: October 11, 2004

SUBARU:

2005 MY Legacy and Outback models with Accessory Sub-woofer

INTRODUCTION

If you encounter a customer complaint that the (blue) sub-woofer wiring harness is exposed, use the following procedure to re-route the harness.

REPAIR PROCEDURES

Record the pre-set radio stations.
Position (left front) drivers seat so that the front bolts that secure the seat are accessible.
Remove the 2 front seat bolts.
Slide and tilt the seat forward to gain access to the 2 rear bolts.
Remove the 2 drivers seat bolt covers at rear of slide rail (see Fig 1 ).

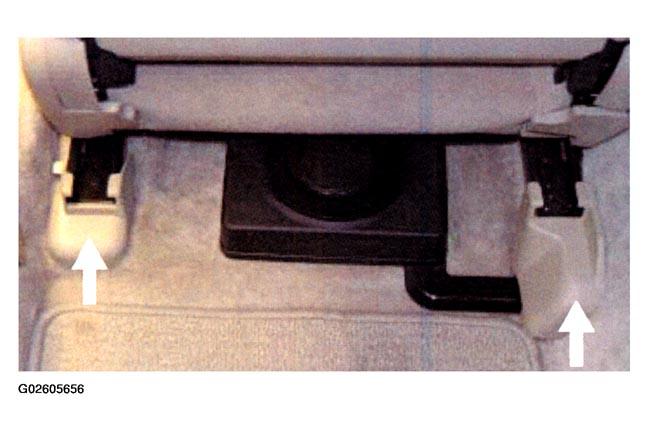

Fig 1: Locating Seat Bolt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the 2 rear bolts.
Disconnect ground cable from battery.
Carefully remove parking brake cover.
NOTE: Cover is fixed with 5 clips (Fig 2 ). Do not pull on the parking brake boot as it will separate from the cover.

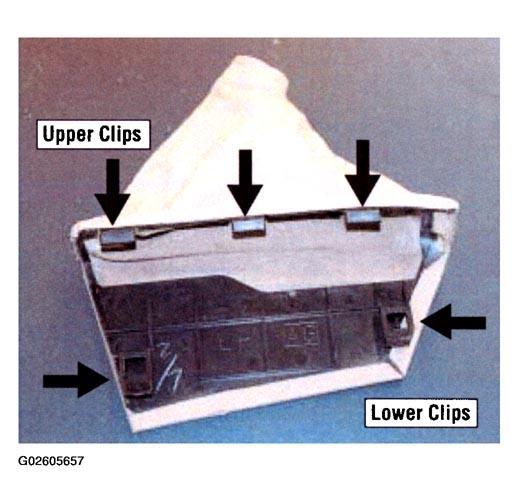

Fig 2: Locating Parking Brake Cover Clip
Courtesy of SUBARU OF AMERICA, INC.

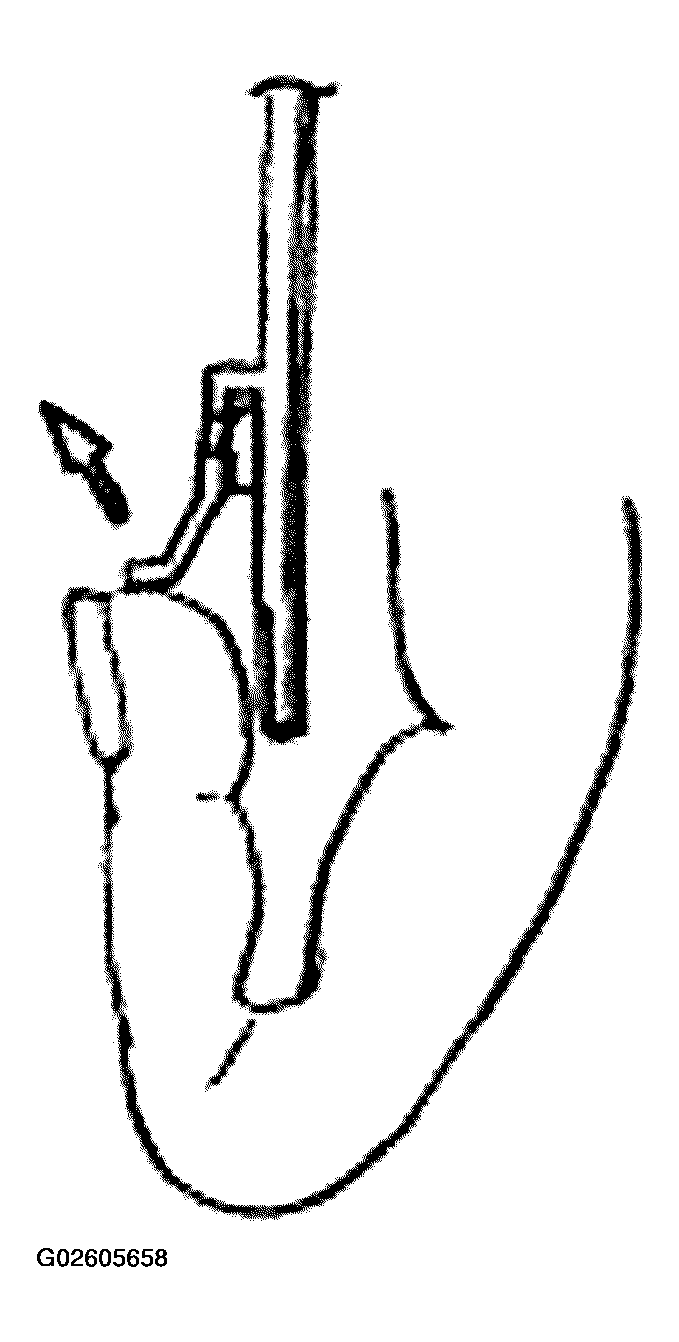

Fig 3: Removing Parking Brake Clip
Courtesy of SUBARU OF AMERICA, INC.

Insert finger into gap between carpet and parking brake cover; release the two lower clips by pushing them up (see Fig 3 ) and at the same time carefully pull up on the cover. Upper clips will release at the same time. If upper clips do not released at the same time, insert finger from upper side of the cover and release the clips
Tilt driver's seat rearward to gain access to sub-woofer wiring harness connector and disconnect connector (see Fig 4 ).

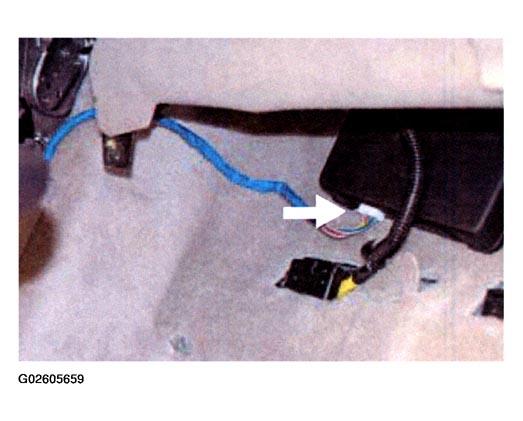

Fig 4: Disconnecting Sub-Water Wiring Connector
Courtesy of SUBARU OF AMERICA, INC.
Re-route blue wiring harness under black wiring harness (and away from parking brake assembly and switch), then behind carpet starting at center console location (see Fig 5 ) and exit through carpet opening at rear passenger heater vent (see Fig 6 ). Make sure to tuck wiring harness and carpet under center console when finished.

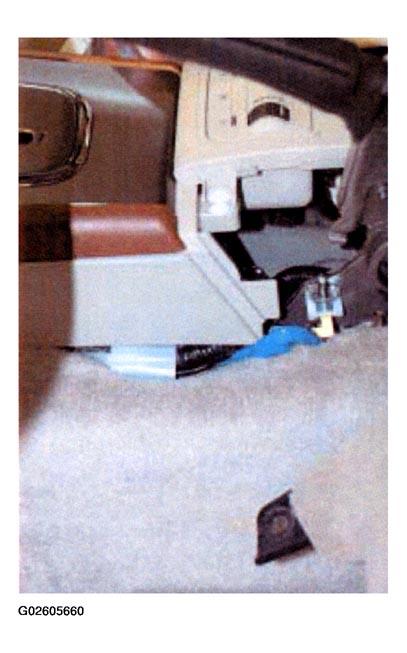

Fig 5: Removing Wiring Harness At Enter Console Carpet
Courtesy of SUBARU OF AMERICA, INC.

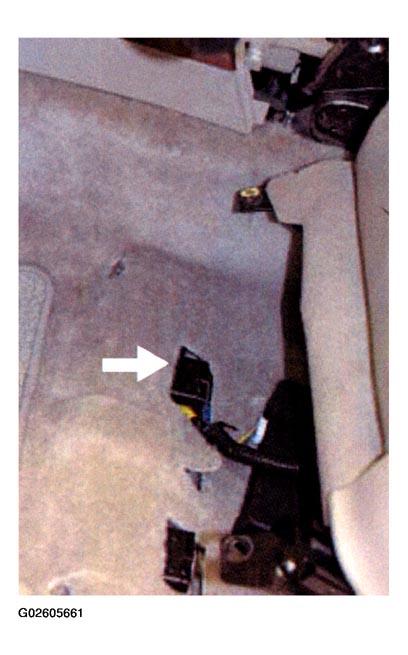

Fig 6: Locating Wiring Harness At Rear Passenger Heat Vent Carpet
Courtesy of SUBARU OF AMERICA, INC.

Reassembly

Re-connect sub-woofer wiring harness connector.
Re-position seat and hand start bolts.
Torque seat bolts to proper specification; 53 N-m (5.4 kgf-m, 39 ft-lb)
Re-install drivers seat bolt covers at rear of slide rail.
Re-install parking brake cover.
Re-install ground cable to battery.
Re-set radio stations.
Re-set clock.

CLAIM REIMBURSEMENT/WARRANTY INFORMATION

For vehicles within the Basic New Car Warranty period, this repair can be claimed using:

WARRANTY INFORMATION

LABOR DESCRIPTION	OPERATION #	FAIL CODE	LABOR TIME
Sub-woofer harness re-routing	A850-528	ZJI-48	0.3
