Adjustment

When adjusting, adjust it to the following value.

Toe-in:

0+/-2 mm (0+/-0.08 in)

1. Loosen the self-locking nut on the inner side of rear link.
   NOTE: When loosening or tightening the adjusting bolt, hold the bolt head and turn self-locking nut.

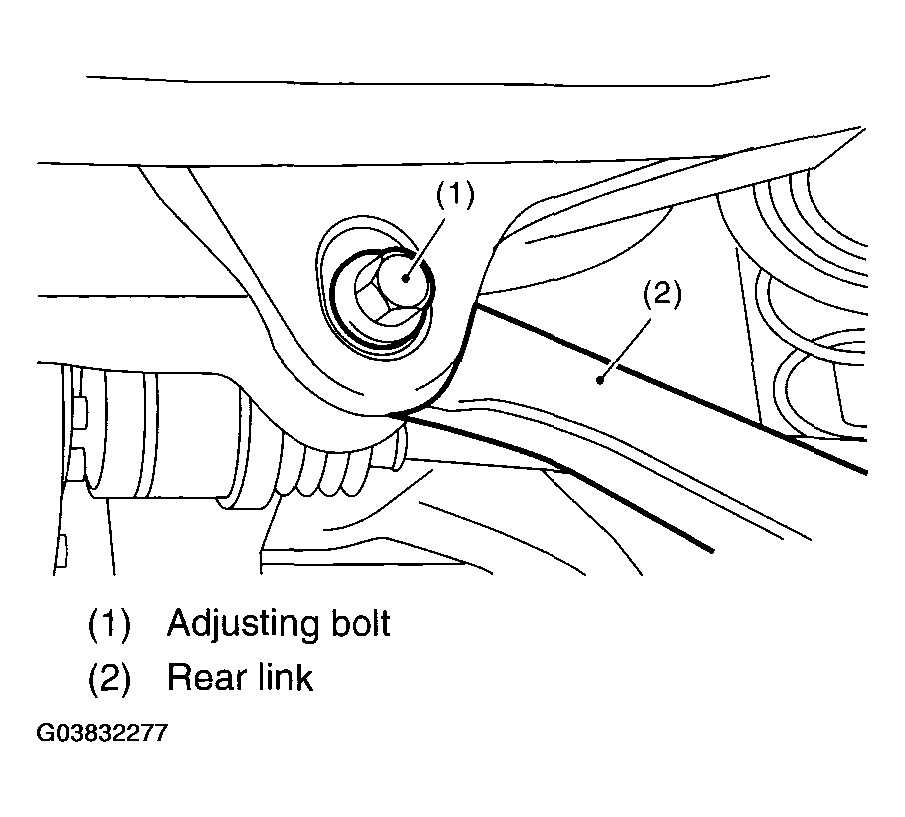

   Fig 1: Locating Adjusting Bolt

   Courtesy of SUBARU OF AMERICA, INC.
2. Turn the adjusting bolt until toe-in is at the specification.
   NOTE: When the left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approx. 0.6 mm (0.02 in).

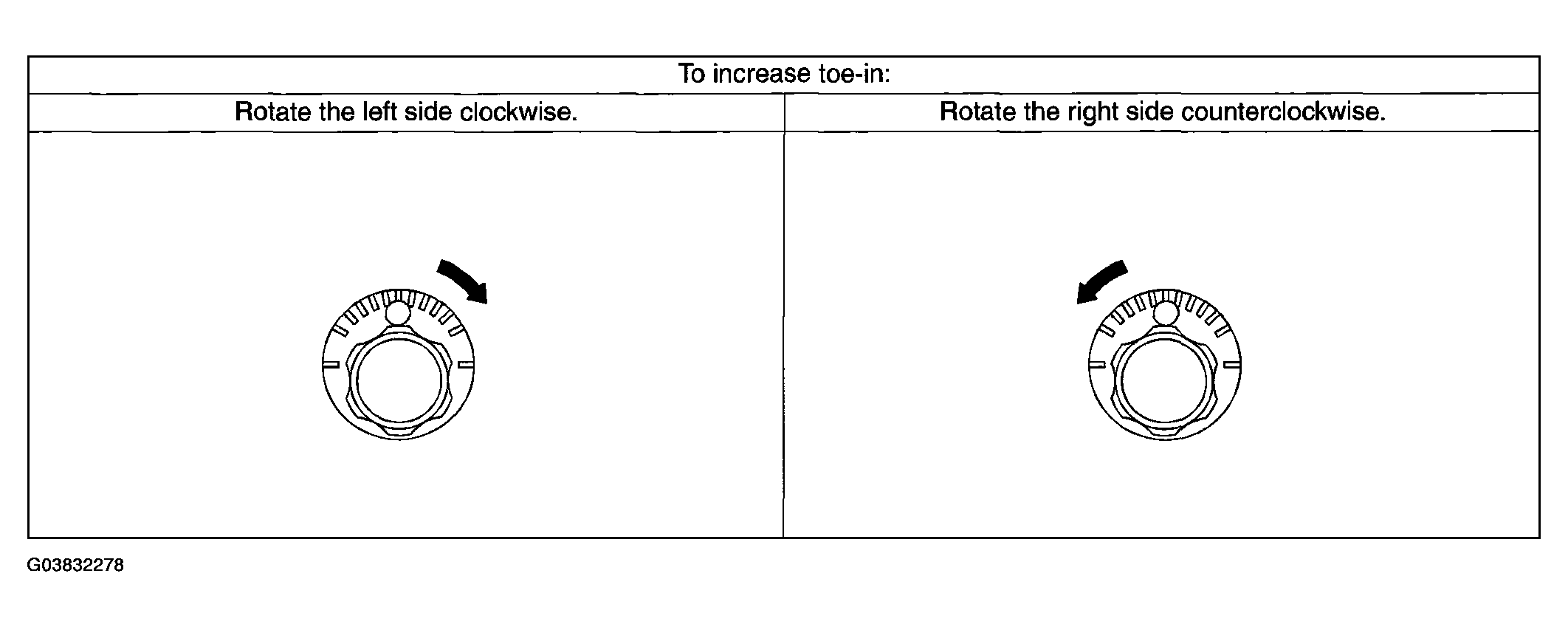

   Fig 2: Identifying Toe In Increasing Position

   Courtesy of SUBARU OF AMERICA, INC.

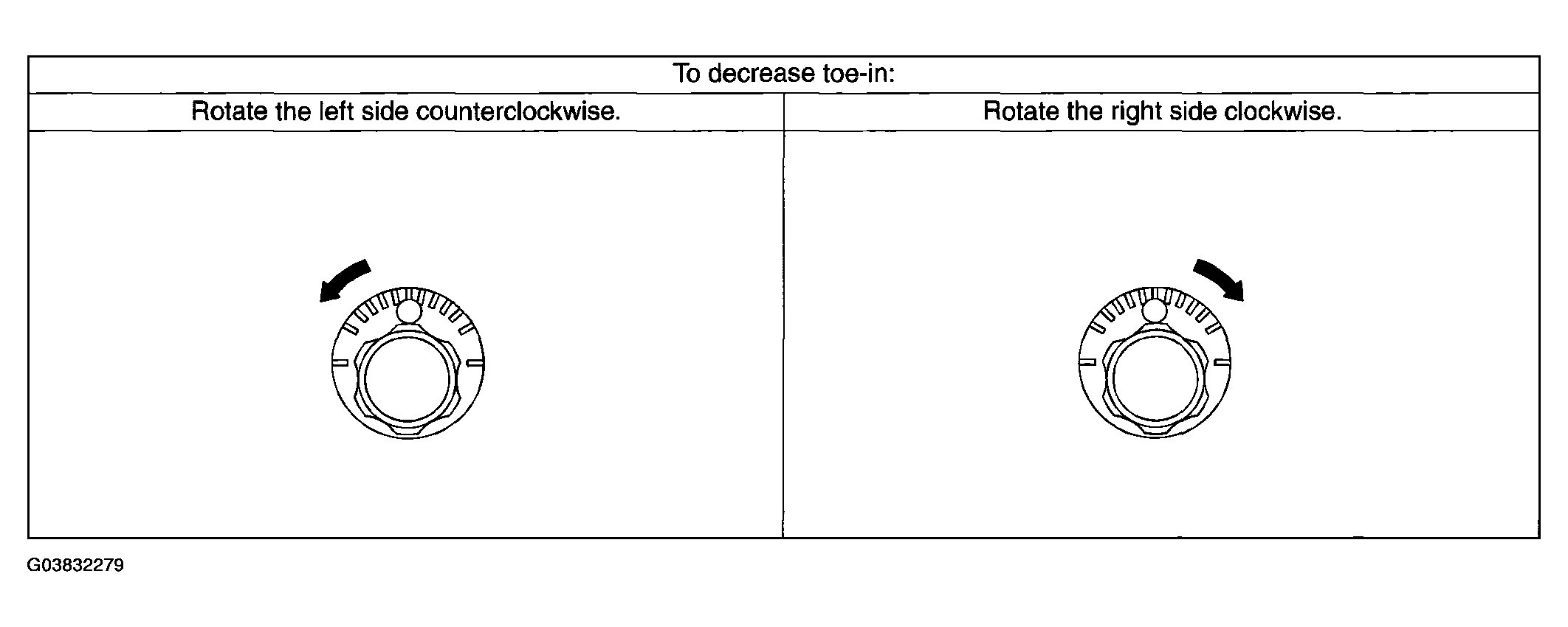

   Fig 3: Identifying Toe In Decreasing Position

   Courtesy of SUBARU OF AMERICA, INC.
3. Tighten a new self-locking nut.

Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
