Crankshaft Position Sensor: Removal

Disconnect the ground cable from battery.

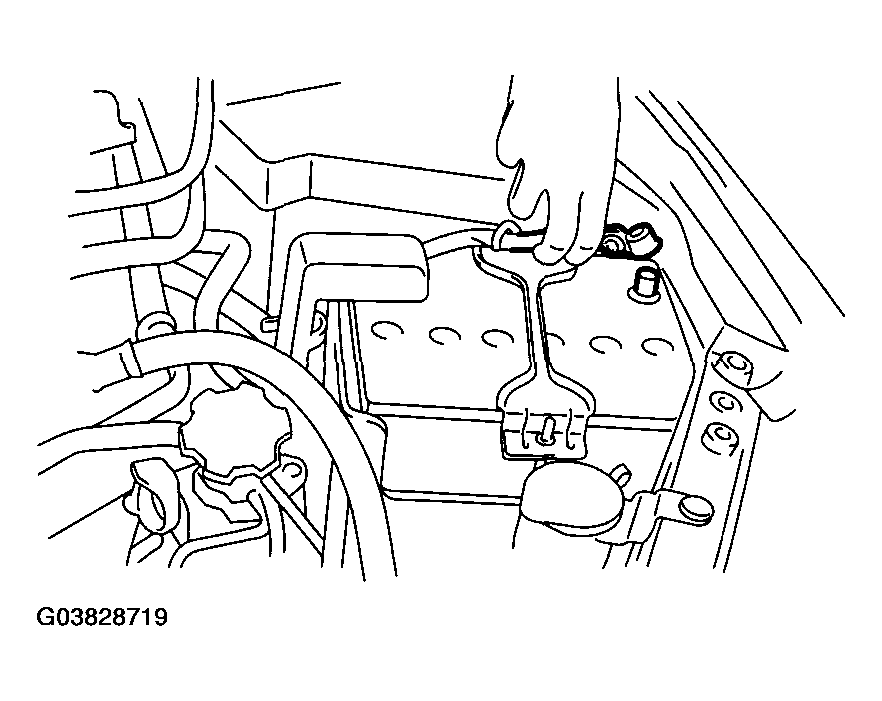

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator. < Ref. to REMOVAL , Generator. >
Remove the bolt which installs crankshaft position sensor to cylinder block.

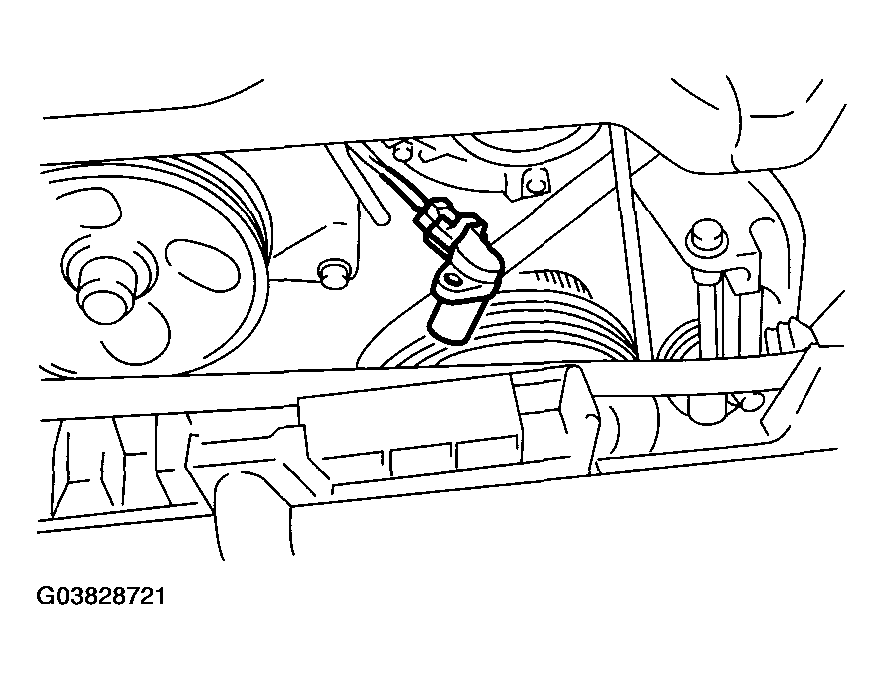

Fig 2: Removing Bolt Of Crankshaft Position Sensor To Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Remove the crankshaft position sensor, and disconnect the connector from it.

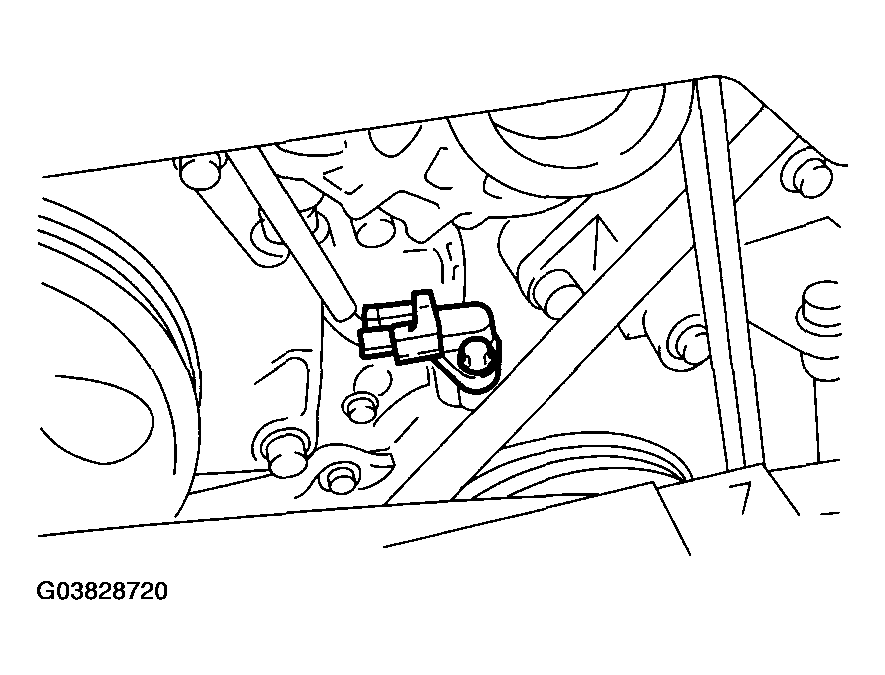

Fig 3: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
