Rear Oxygen Sensor: Installation

Before installing rear oxygen sensor, apply anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.
Anti-seize compound:

SS-30 JET LUBE

CAUTION: Never apply anti-seize compound to the protector of rear oxygen sensor.
Install the rear oxygen sensor.
Tightening torque:

21 N.m (2.1 kgf-m, 15.2 ft-lb)

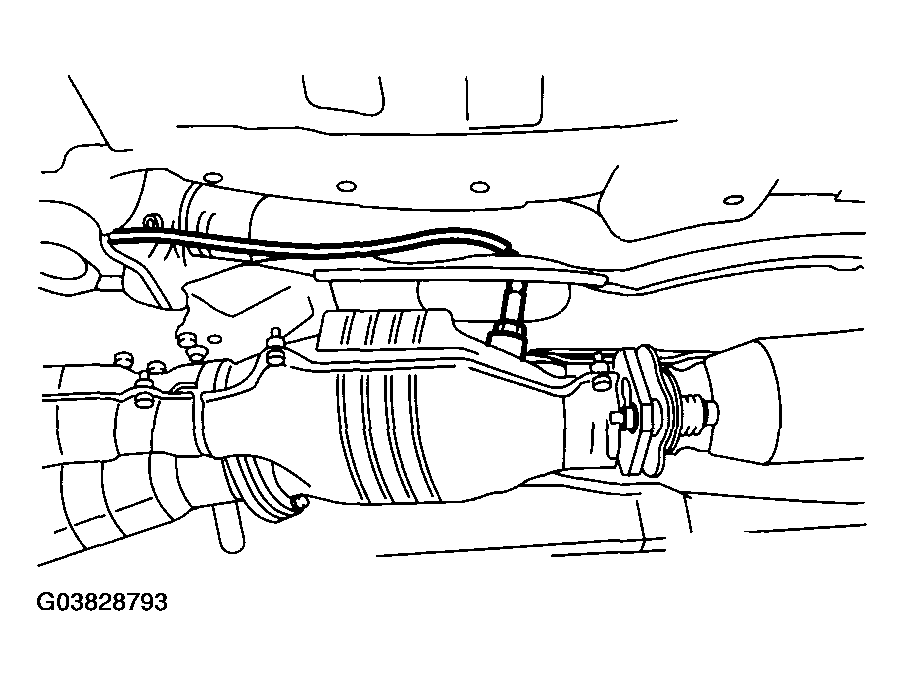

Fig 1: Installing Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to rear oxygen sensor.

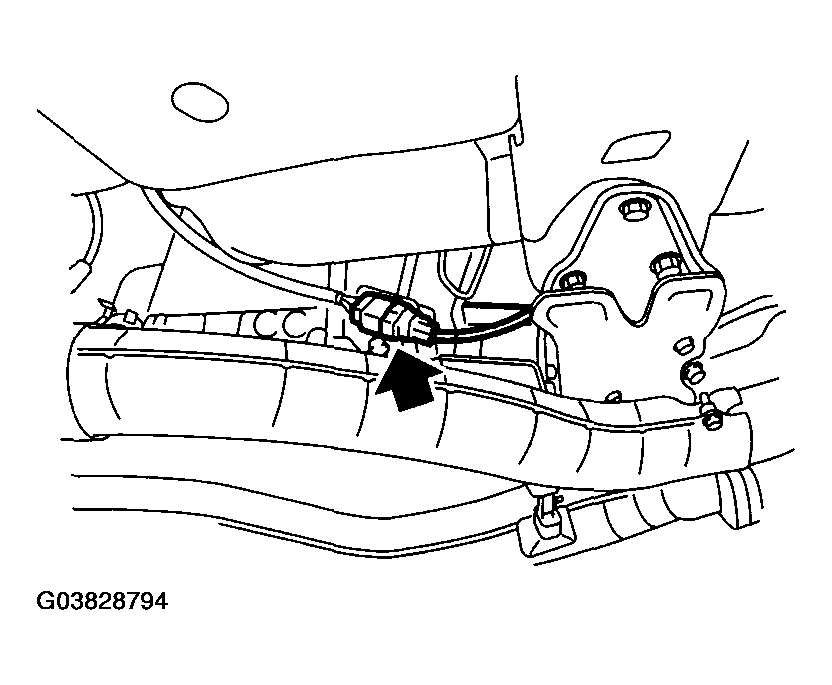

Fig 2: Connecting Connector To Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the battery ground cable to battery.

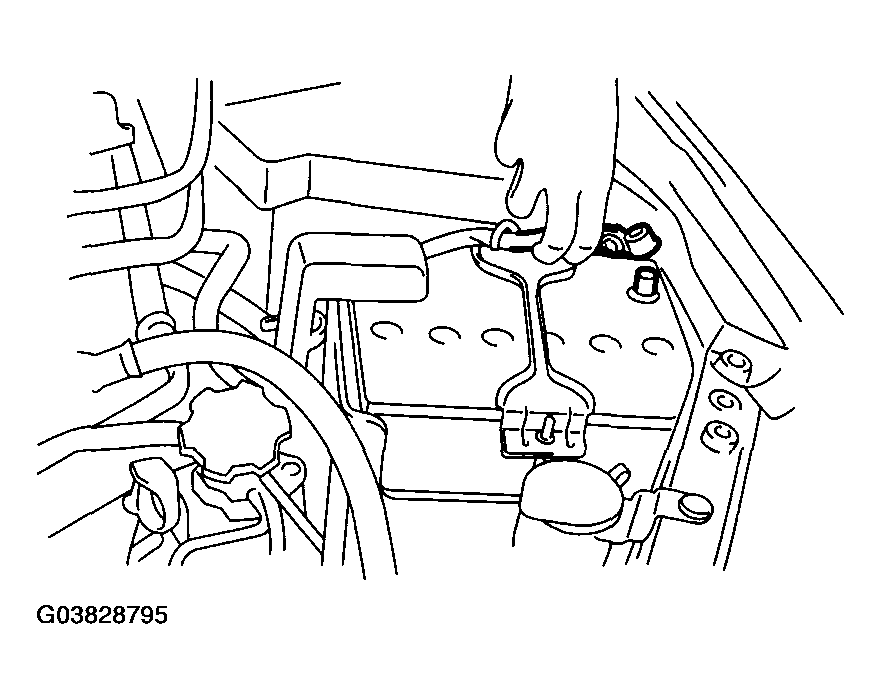

Fig 3: Connecting Battery Ground Cable To Battery

Courtesy of SUBARU OF AMERICA, INC.
