Clutch Switch: Inspection

Measure the clutch switch resistance.

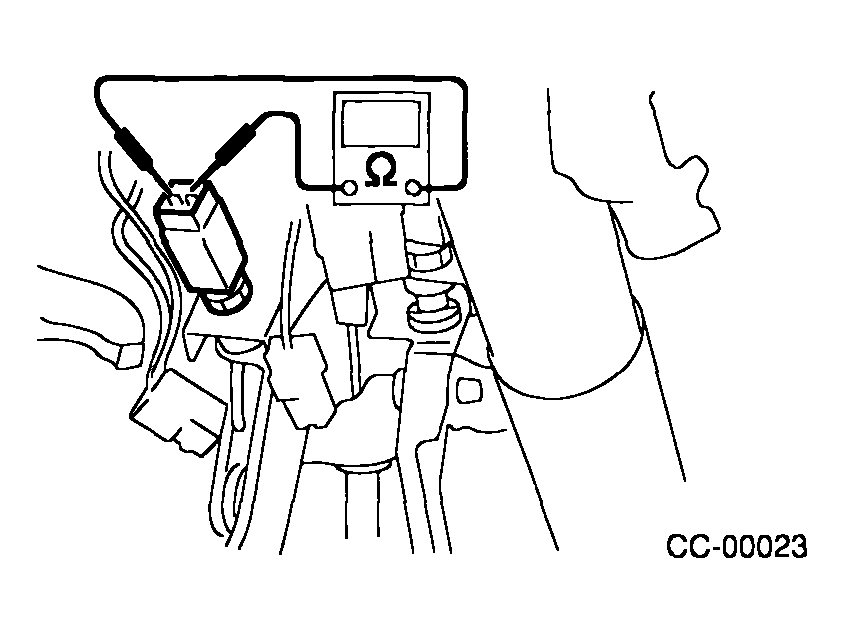

Fig 1: Measuring Clutch Switch Connector Terminal Resistance

Courtesy of SUBARU OF AMERICA, INC.

TERMINAL RESISTANCE CHART

Switch	Pedal	Terminal No.	Standard
Clutch	Released	1 and 2	Less than 1
Clutch	Depressed	1 and 2	More than 1 M

If NG, replace the clutch switch.
