Security And Locks
›
General Description
›
Components With Torque Specifications
›
Door Lock Assembly
Door Lock Assembly

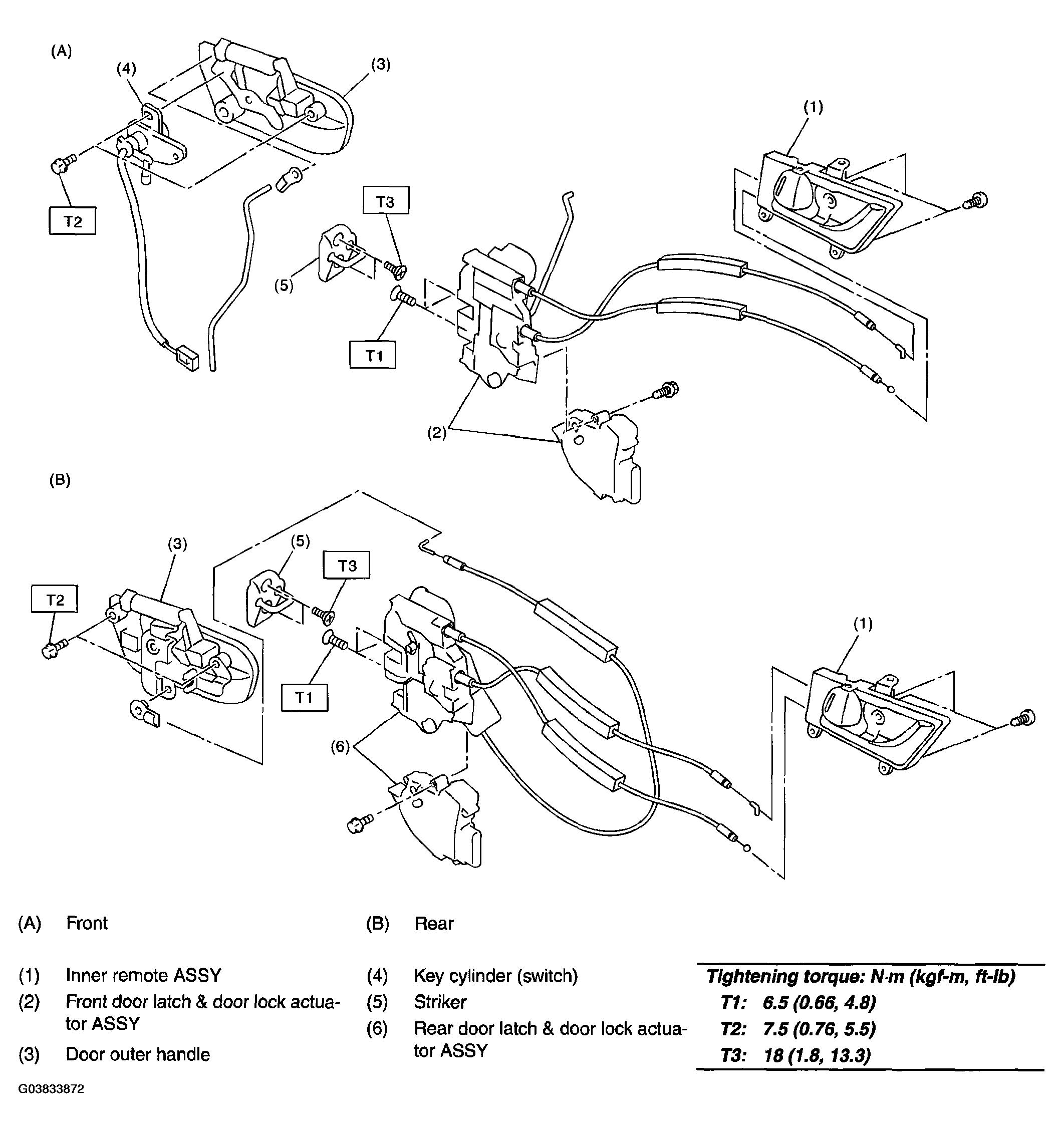

Fig 1: Exploded View Of Door Lock Assembly
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
