General Description
›
Components With Torque Specifications
›
Trunk Lid And Rear Gate Lock
Trunk Lid And Rear Gate Lock

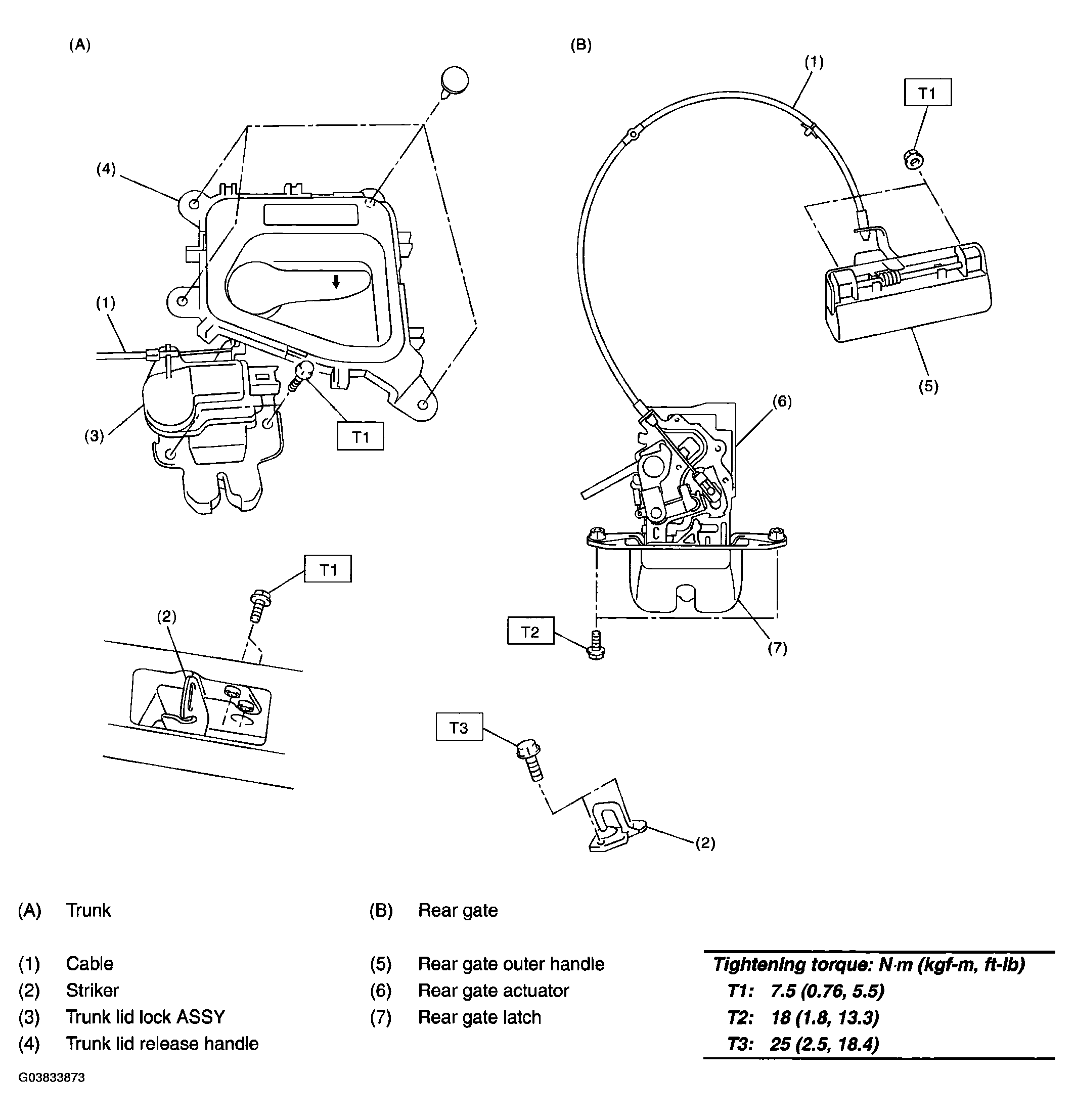

Fig 1: Exploded View Of Trunk Lid And Rear Gate Lock
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
