Key Lock Cylinders: Replacement

1. Raise the front door glass to the top position.
2. Remove the door trim. < Ref. to REMOVAL , Door Trim. >
3. Remove the sealing cover.
4. Remove the rod clamp. Remove the bolt. Replace the key cylinder (1).

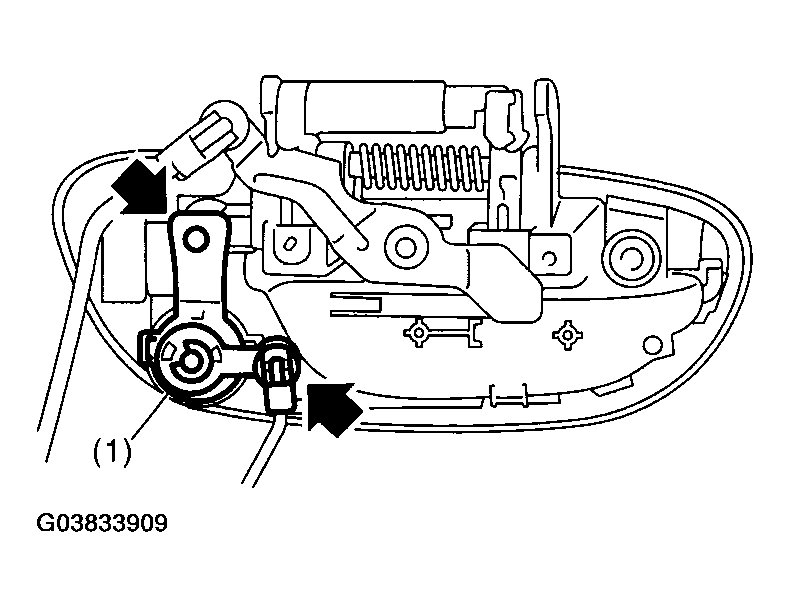

Fig 1: Removing Rod Clamp

Courtesy of SUBARU OF AMERICA, INC.
