Datum Dimensions: Measurement: Inside: Rear

• Wagon model

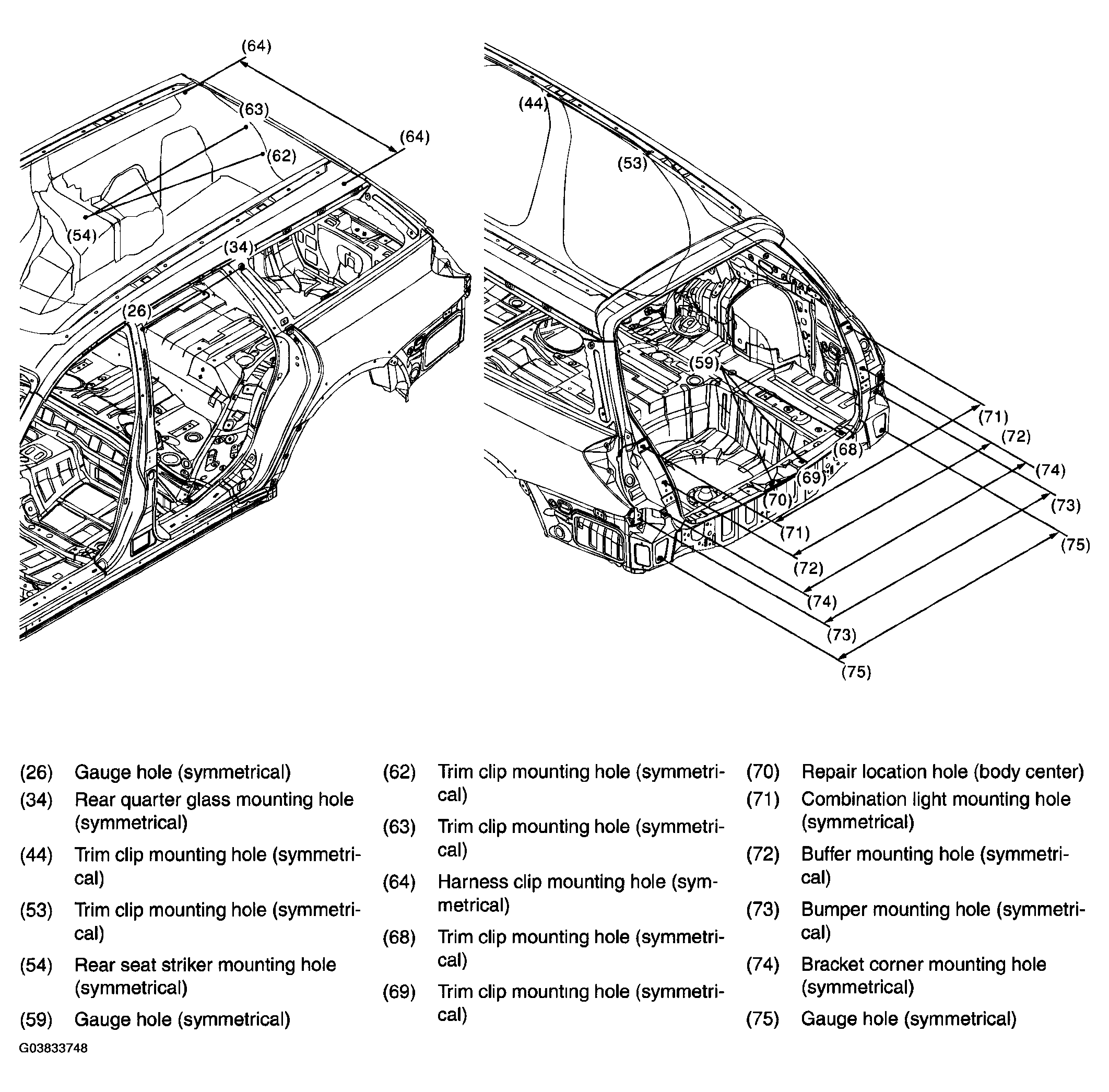

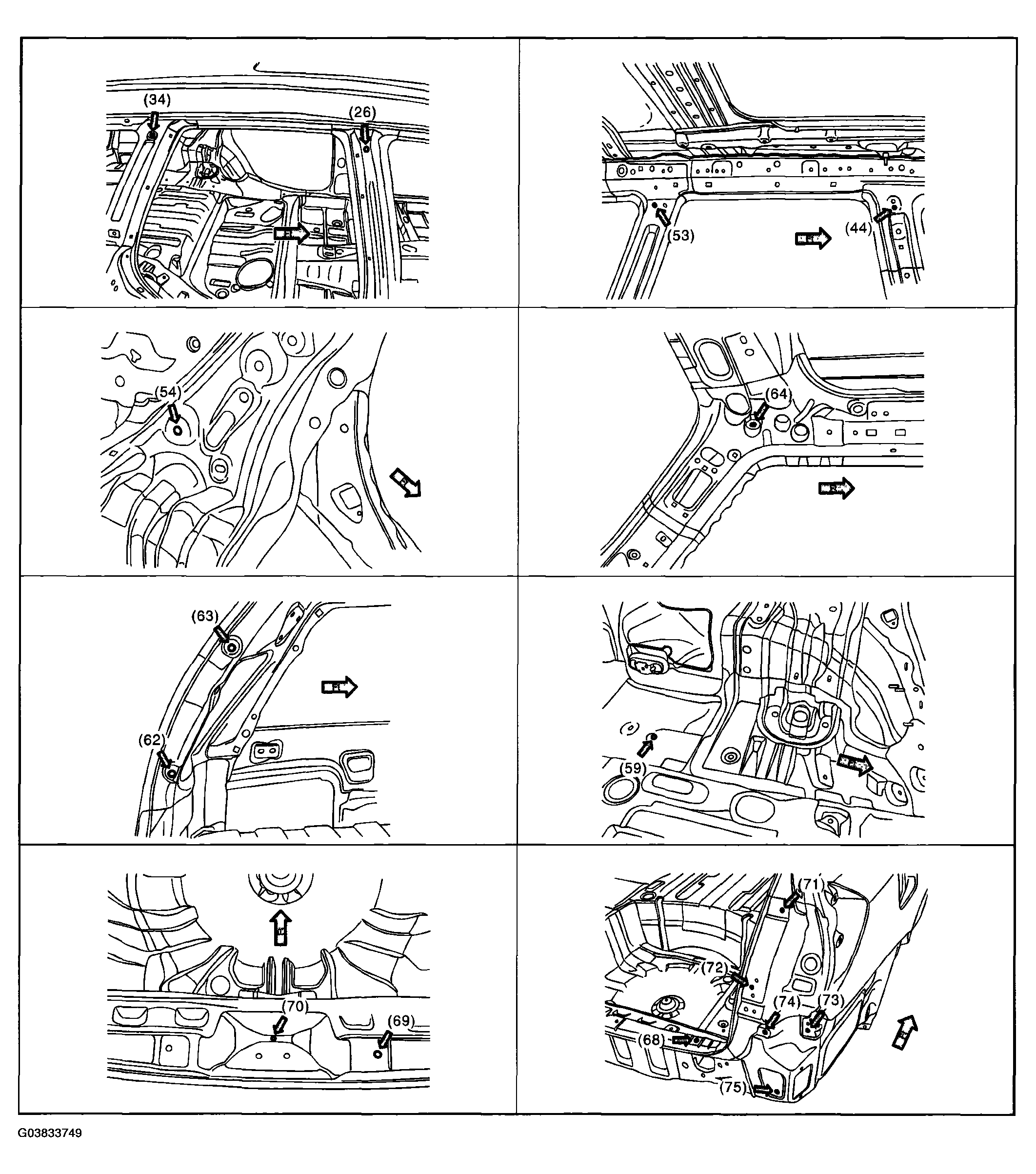

Fig 1: Identifying Rear Dimensions (Wagon Model) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

POINT DIMENSION SPECIFICATION

Measuring point	Reference dimension mm (in)
(26) - (34)	613(24.13)
(44) - (53)	591 (23.27)
(54) - (62)	969(38.15)
(54) - (63)	884 (34.80)
(59) - (68)	1,087 (42.80)
(59) - (69)	1,142(44.96)
(59) - (70)	1,166(45.91)
(64) - (64)	944(37.17)
(71) - (71)	1,224(48.19)
(72) - (72)	1,173(46.18)
(73) - (73)	1,438(56.61)
(74) - (74)	1,250(49.21)
(75) - (75)	1,320 (59.97)

NOTE:

• The reference point (70) is at the body center, while the other points are left-right symmetrical.
• The dimensions are the actual dimensions between the reference points.

Fig 2: Identifying Rear Dimensions (Wagon Model) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

• Sedan model

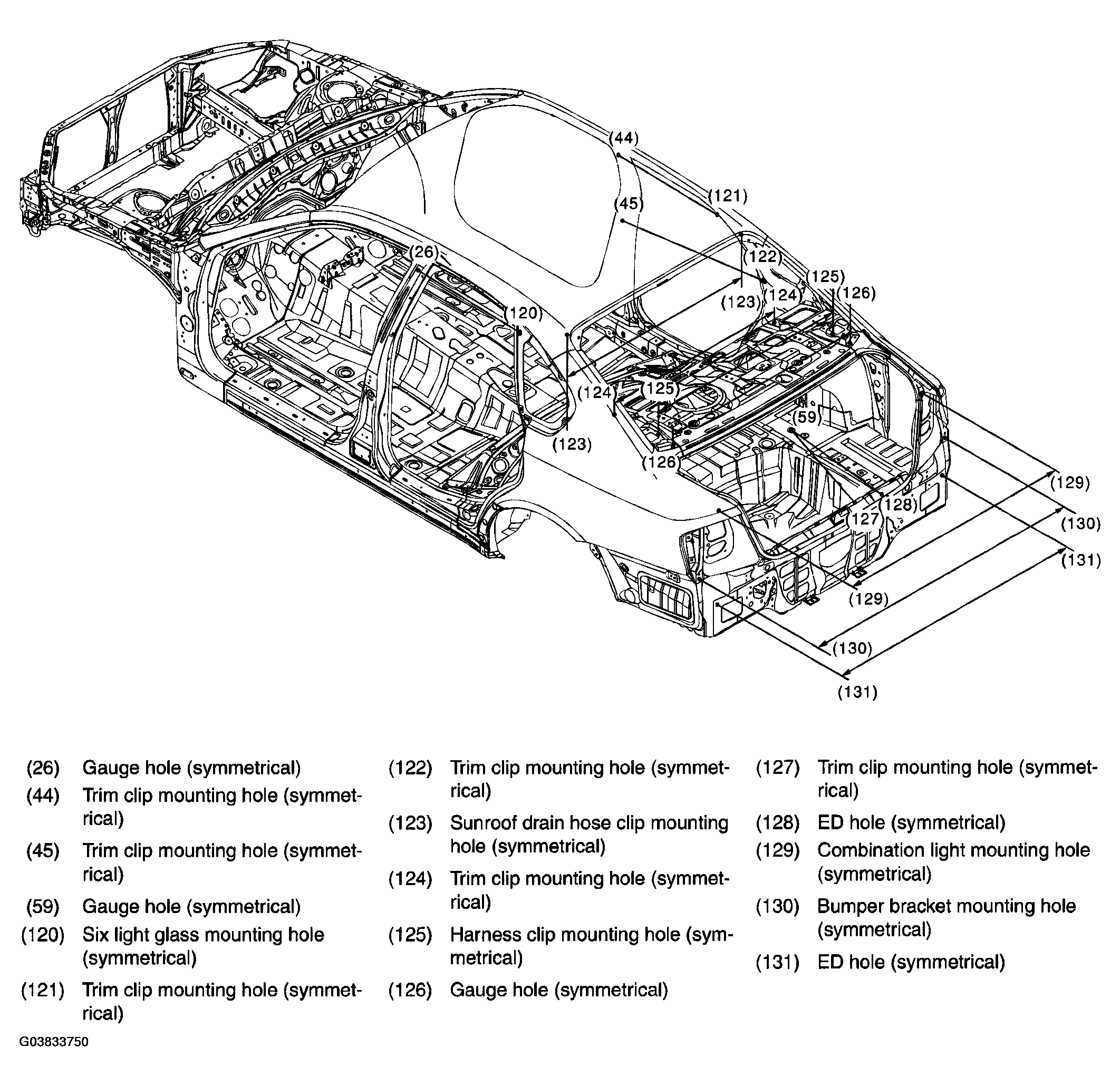

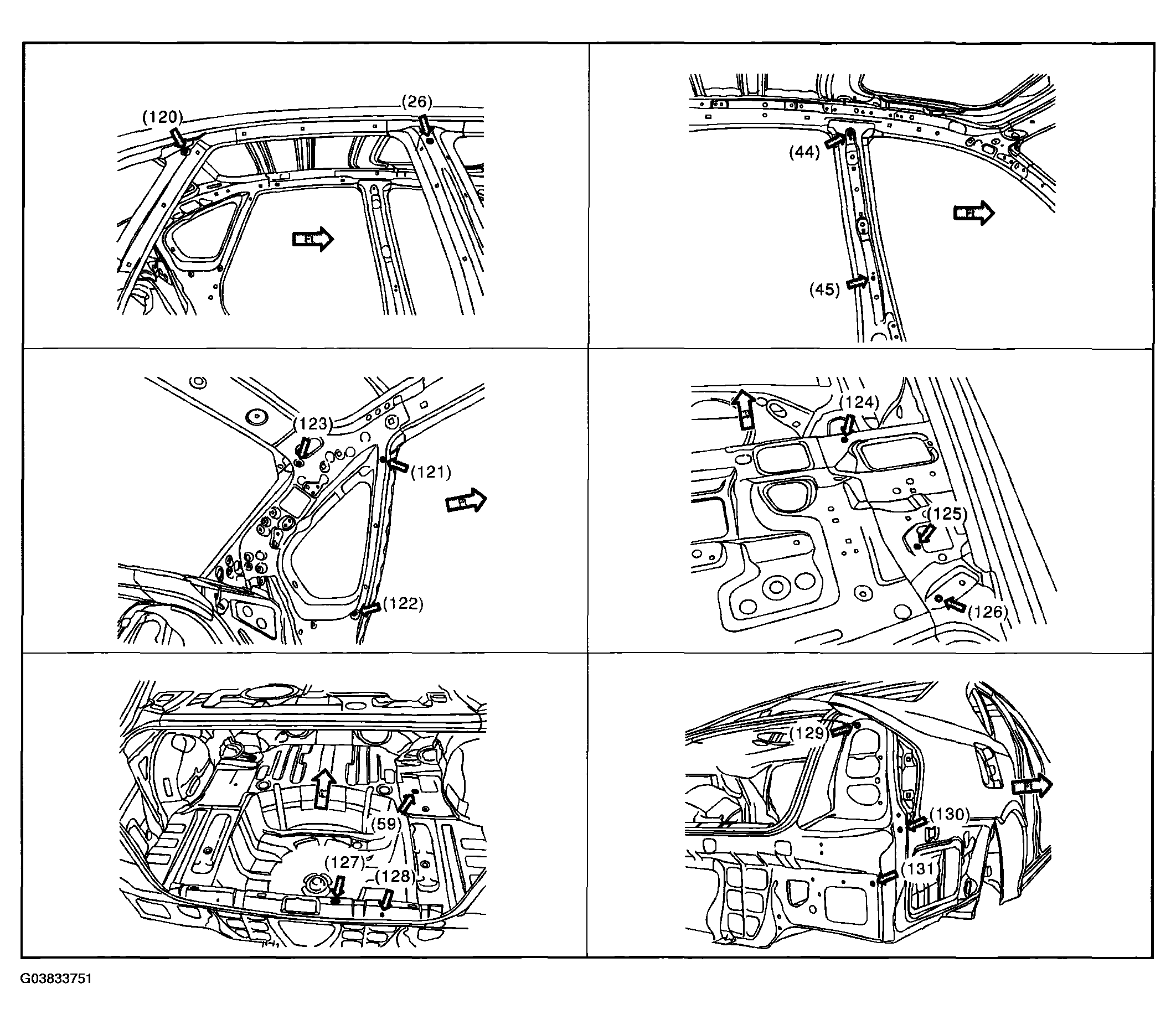

Fig 3: Identifying Rear Dimensions (Sedan Model) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

POINT DIMENSION SPECIFICATION

Measuring point	Reference dimension mm (in)
(26) - (120)	598 (23.54)
(44) - (121)	570 (22.44)
(45) - (122)	835 (32.87)
(59) - (127)	1,096(43.15)
(59) - (128)	1,088 (42.83)
(123) - (123)	1,024(40.31)
(124) - (124)	940(37.01)
(125) - (125)	1,024(40.31)
(126) - (126)	1,040 (40.94)
(129) - (129)	1,191 (46.89)
(130) - (130)	1,442 (56.77)
(131) - (131)	1,322 (52.05)

NOTE:

• All reference points are left-right symmetrical.
• The dimensions are the actual dimensions between the reference points.

Fig 4: Identifying Rear Dimensions (Sedan Model) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
