Plastic Parts and Materials: Specification

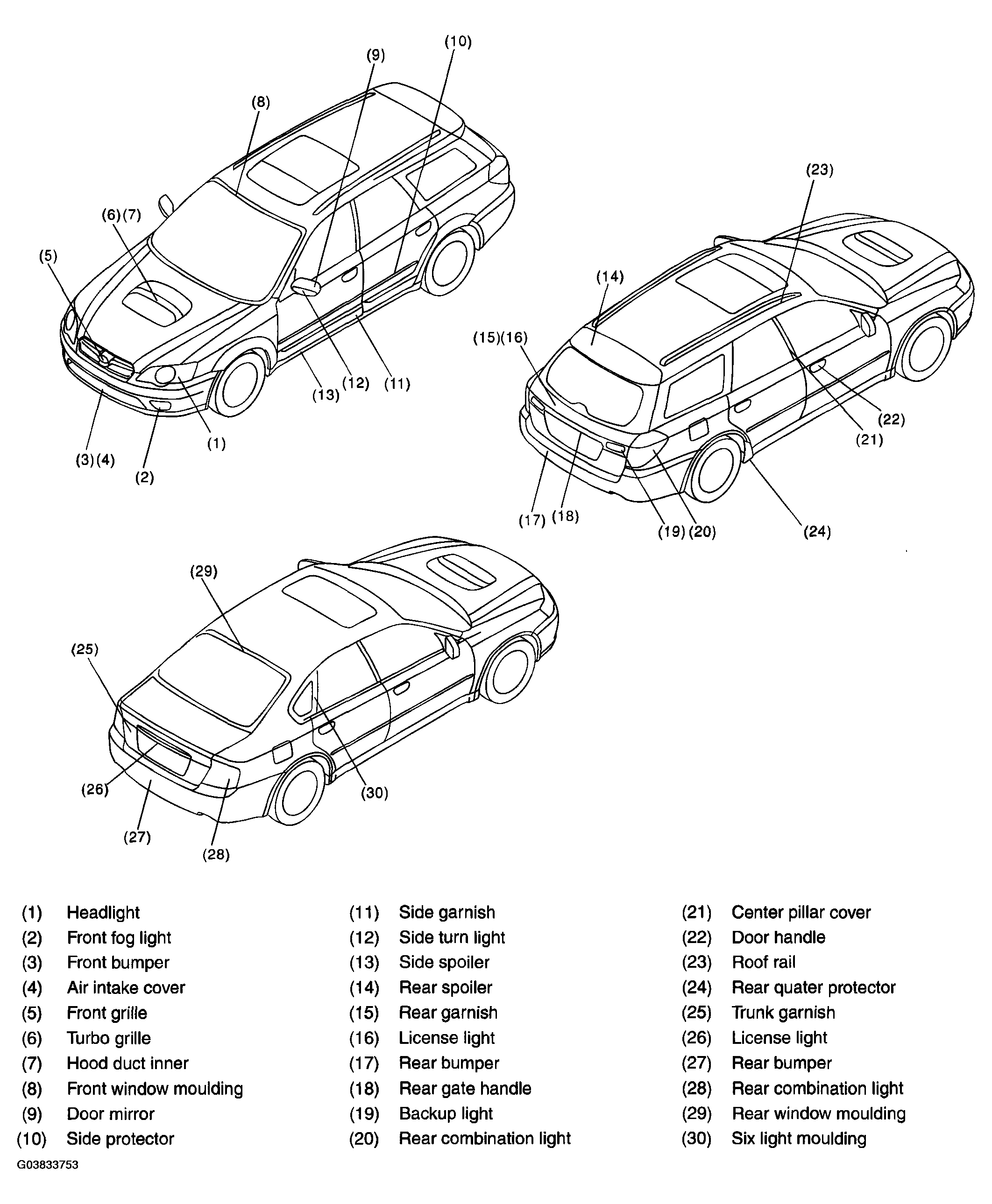

- Wagon model/Common for wagon and sedan modelWAGON MODEL/COMMON FOR WAGON AND SEDAN MODEL SPECIFICATION
No. Part name Material (1) Headlight Lens PC Housing PP Extension PBT + PET (2) Front fog light (standard) Housing PET Front fog light (OUTBACK) Lens PC Reflector UP-GF 10 Bracket PP - GF 30 (3) Front bumper Face PP EA foam Foamed PP Fog light cover PP Hook cover PP Bumper cover (OUTBACK) PP (4) Air intake cover PP (5) Front grille ABS (6) Turbo grille PA + PPE (7) Hood duct inner PP + EPDM (8) Front window moulding PVC (9) Door mirror Body AES Inner cover AES Outer cover ABS Mirror holder PP (10) Side protector PP (11) Side garnish Door body PC + PET Other than door body PP Side sill end cover PP + EPDM (12) Side turn light Lens PMMA + PC Housing PC (13) Side spoiler Body PP (14) Rear spoiler Body PC + PET High mount lens PMMA High mount housing ABS (15) Rear garnish Body PC + PET Moulding ABS (16) License light Lens PC Housing PBT + PET (17) Rear bumper Face PP EA foam Foamed PP (18) Rear gate handle PP-GF 20 (19) Backup light Lens PMMA Housing ASA (20) Rear combination light Lens PMMA Inner lens PC Housing ASA Reflex reflector PMMA Cover ASA (21) Center pillar cover ABS (22) Door handle Handle PPE + PA End cover PP (23) Roof rail Front cover PC + PET Center cover (OUTBACK) PC + PET Rear cover PC + PET (24) Rear quarter protector PP Front mudguard Body PE Air flap TPO Rear mudguard PE Under cover Body PP Flap TPO Splash board PP Cowl panel Body, side PP Cover PP Rear wiper Blade PBT Arm PET Arm cover PBT - Sedan model
SEDAN MODEL SPECIFICATION
| No. | Part name | Material | |
|---|---|---|---|
| (25) | Trunk garnish | PC + PET | |
| (26) | License light | Lens | PMMA |
| Housing | ASA | ||
| (27) | Rear bumper | Face | PP |
| EA foam | Foamed PP | ||
| (28) | Rear combination light | Lens | PMMA |
| Inner lens | PC | ||
| Housing | ASA | ||
| Reflex reflector | PMMA | ||
| Cover | ASA | ||
| (29) | Rear window moulding | PVC | |
| (30) | Six light moulding | ABS | |
| High mount stop light | Lens | PC | |
| Case | PP | ||
| Reflector | PBT + PET | ||
