Under Coat: Specification

Repair material:

Three Bond 6115

1. The application thickness is 0.4 mm or more.
2. Take care that under coat does not become attached to other locations than shown in the figures and the following locations.
   • High-temperature parts related to the exhaust pipe
   • Hoses, tubes, and harness parts
   • Installation surfaces of rear suspension, transmission, subframe, etc.
3. Application range
   • Side view

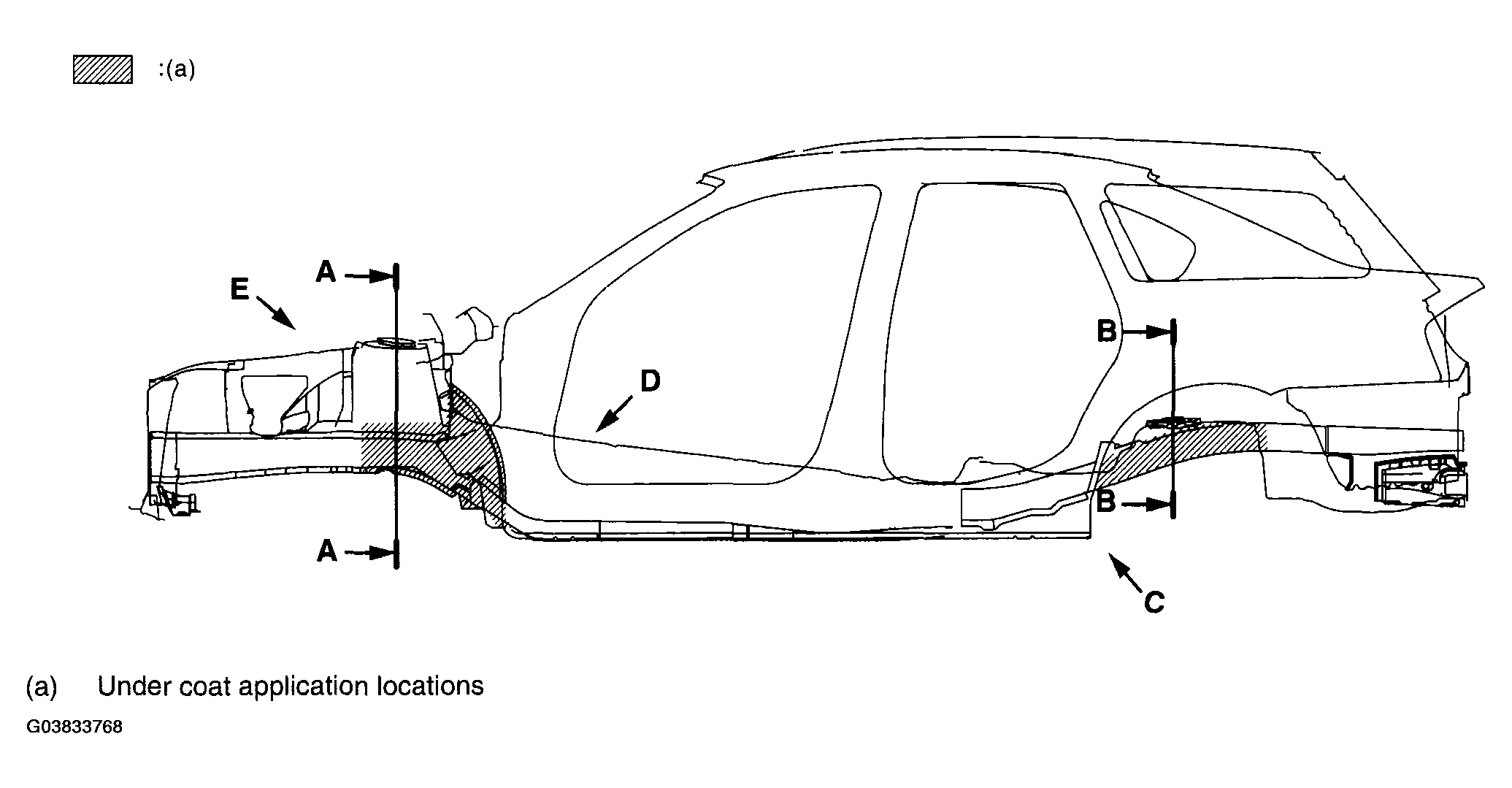

     Fig 1: Identifying Under Coat Range (Side View)

     Courtesy of SUBARU OF AMERICA, INC.
   • Bottom view/rear view

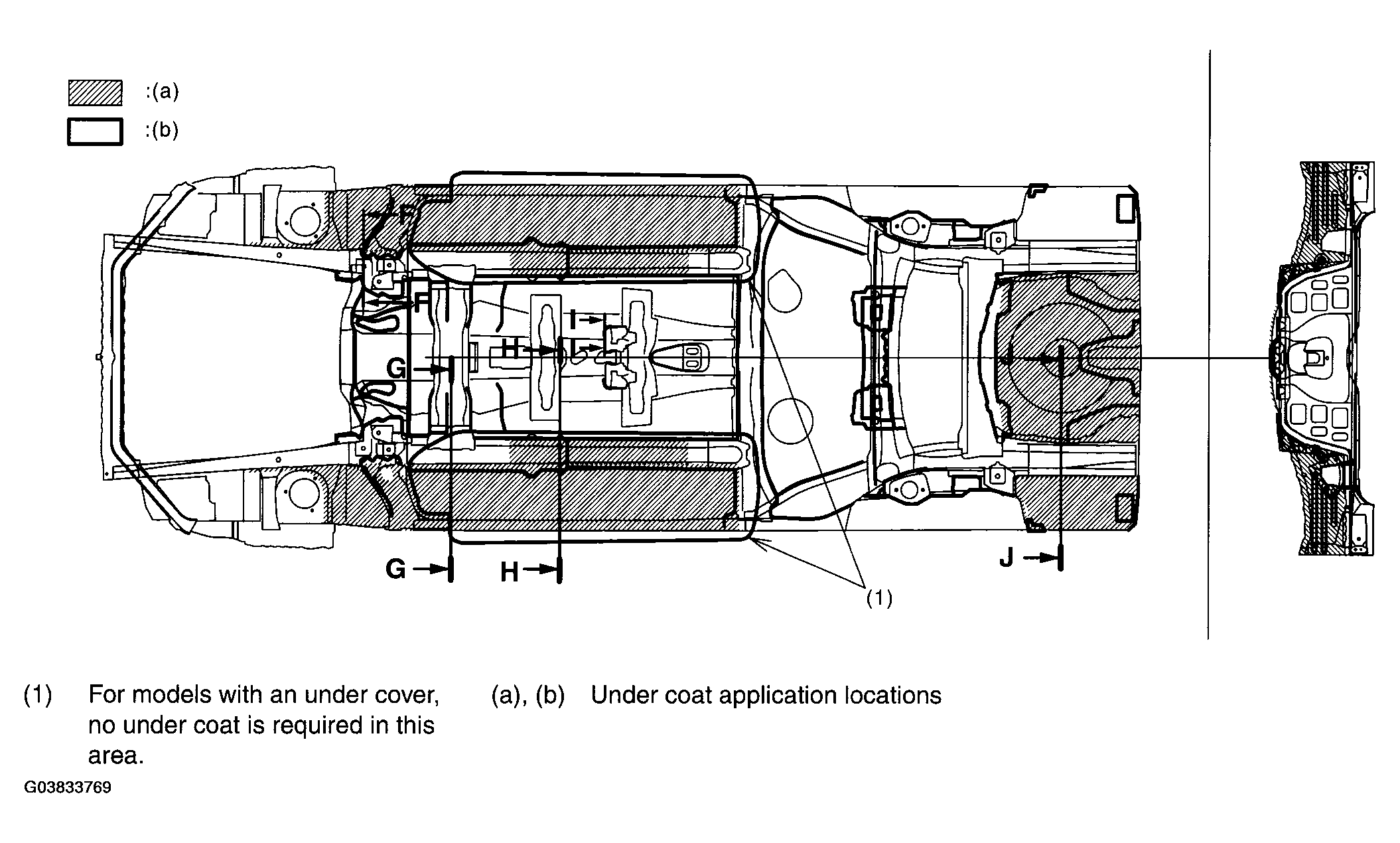

     Fig 2: Identifying Under Coat Range (Bottom View/Rear View) (1 Of 2)

     Courtesy of SUBARU OF AMERICA, INC.

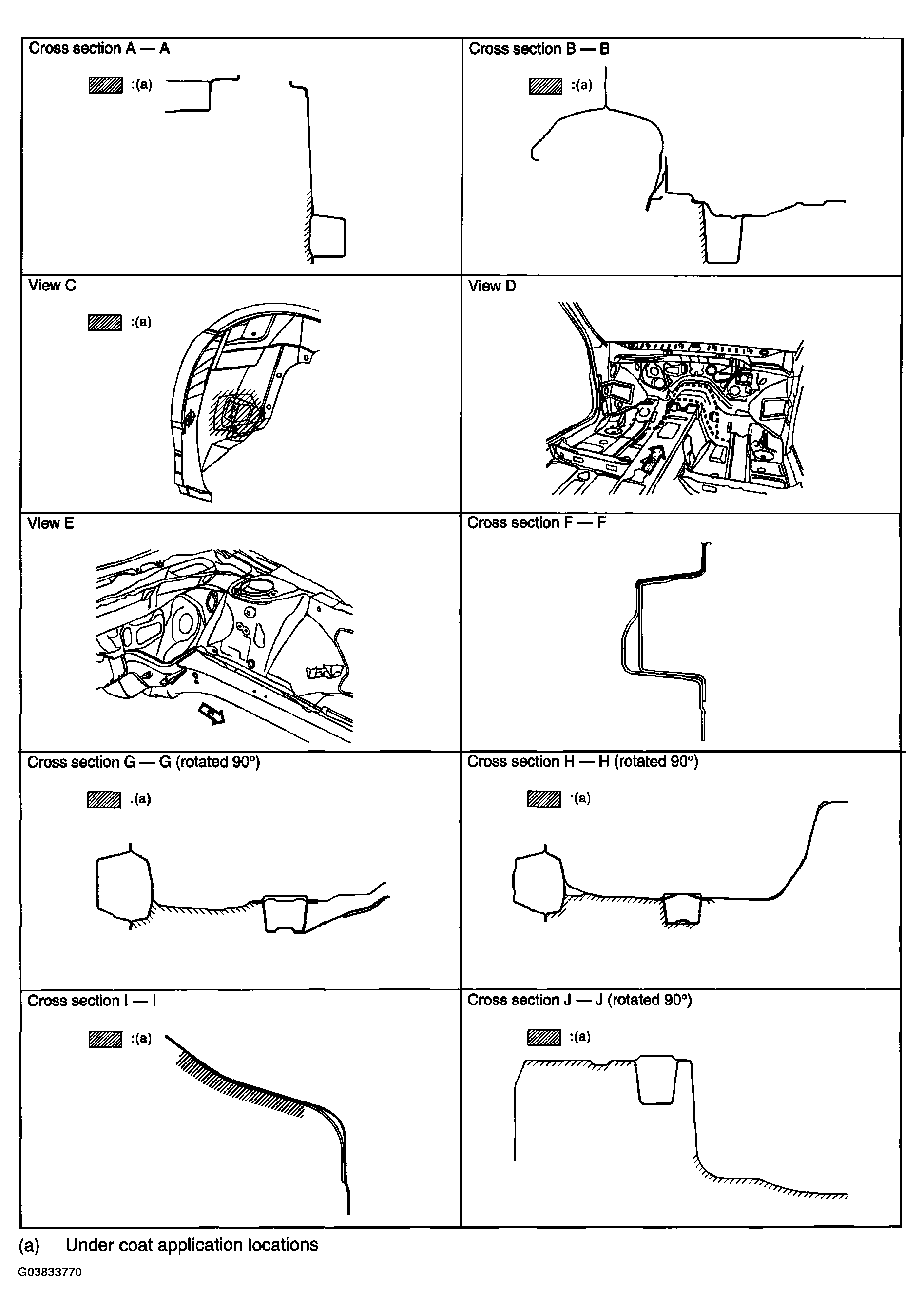

     Fig 3: Identifying Under Coat Range (Bottom View/Rear View) (2 Of 2)

     Courtesy of SUBARU OF AMERICA, INC.
