Control Module I/O Signal: Measurement: Waveform

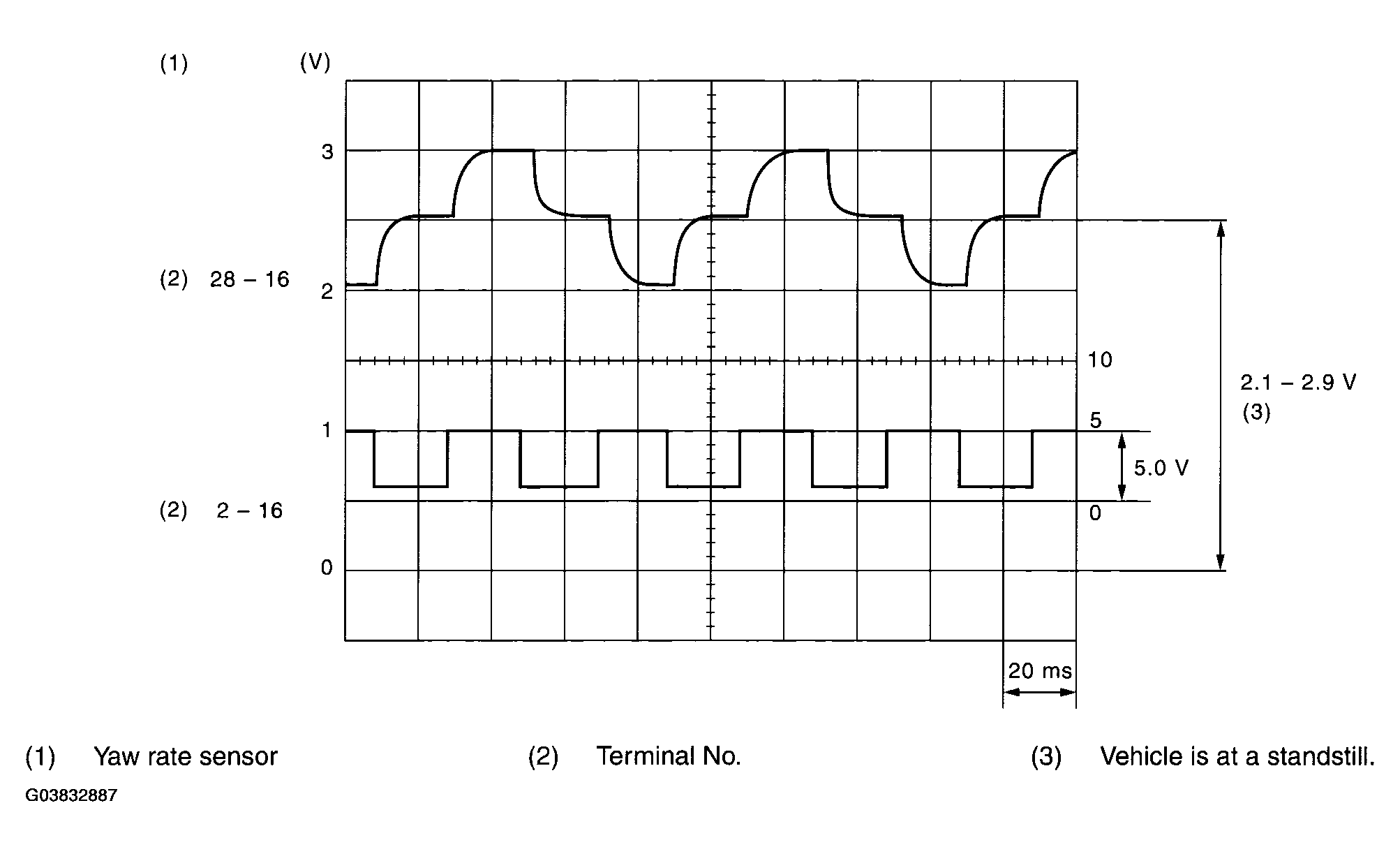

Fig 1: Input And Output Signal Voltage Waveform
G03832887Courtesy of SUBARU OF AMERICA, INC.
