Control Module I/O Signal: Wiring Diagram

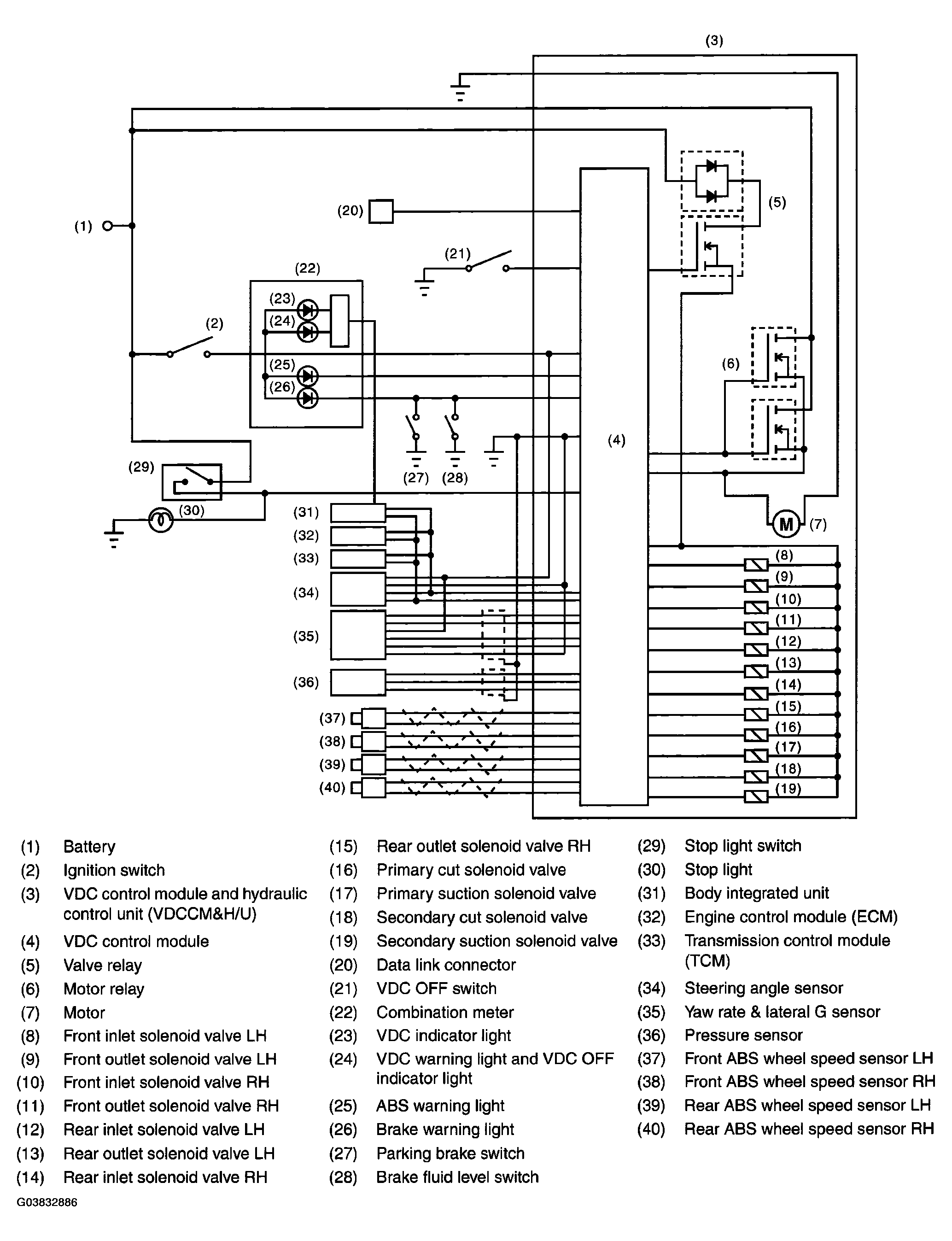

Fig 1: Brake System Wiring Diagram
G03832886Courtesy of SUBARU OF AMERICA, INC.
